PDW1800/60N
GE Profile
18" Built-In Dishwasher

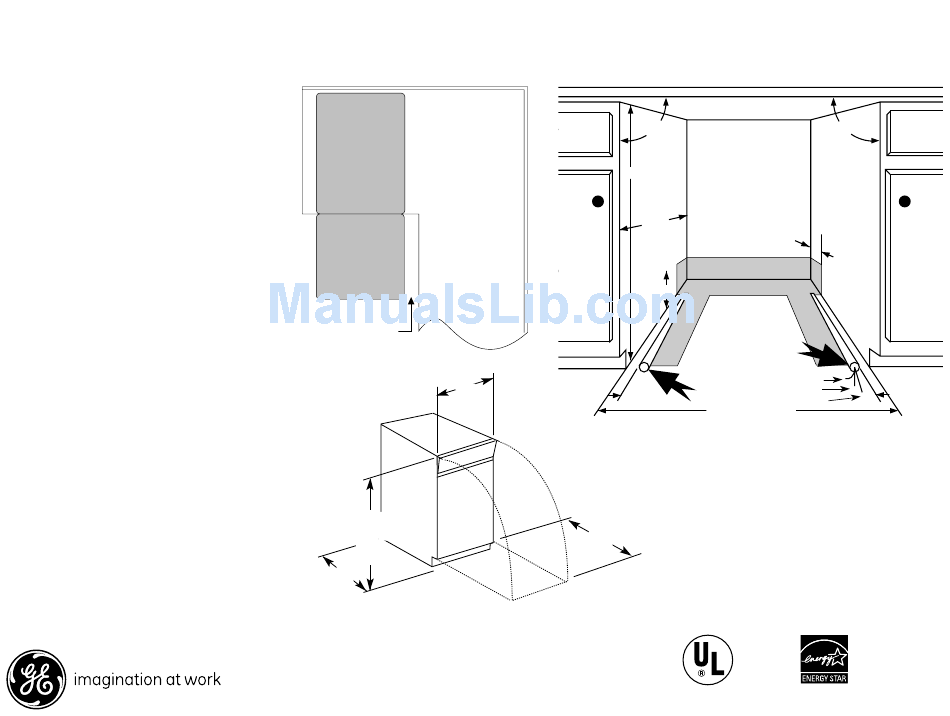

Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC..........................................................120
Hertz....................................................................... 60
Total connected load amperage...............9.0
Calrod
heater watts max......................... 550
®
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Note: Dishwasher must not be installed
more than 10 feet from sink for proper
drainage. All plumbing and electrical work
must be in accordance with local codes.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
Dishwasher
Dishwasher
Door
2" Minimum
32-1/2
to
35**
or
22-1/2
Max.
service,
Countertop
18*
1-1/2"
25
90°
Electrical, drain and
water supply line
34-1/4" Min.
entrances must
be confined to
shaded areas to
avoid interference
24"
with components
Bottom
7"
of tub
to floor
Electrical
Wiring
White (neutral)
Hot Water
Ground
Line
Black (line)
17-5/8" to 18" Min.
*Width adjustable from 17-5/8" to 18".
**Meets ADA countertop height requirement of 34".
Listed by
Underwriters
Laboratories
Specification Revised 2/09
90°
3"
From back of
rear frame
to wall
1-1/2"
As an EnErgy StAr
®
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
250218
