4.1.2 Clearing Paper Jams

Occasionally paper can become jammed during a print job. Some of the causes include:
• The tray is loaded improperly or overfilled.
• The tray has been pulled out during a print job.
• The front cover has been opened during a print job.
• Paper was used that does not meet paper specifications.
• Paper that is outside of the supported size range was used.
If a paper jam occurs the On Line/Error LED on the control panel lights red. Find and remove the jammed
paper. If you don't see the paper, open the covers.
Do not use a tweezers, pincers or other metal tools when removing a jam.
This could damage the internal mechanism causing print quality problems or possibly electrical shock..

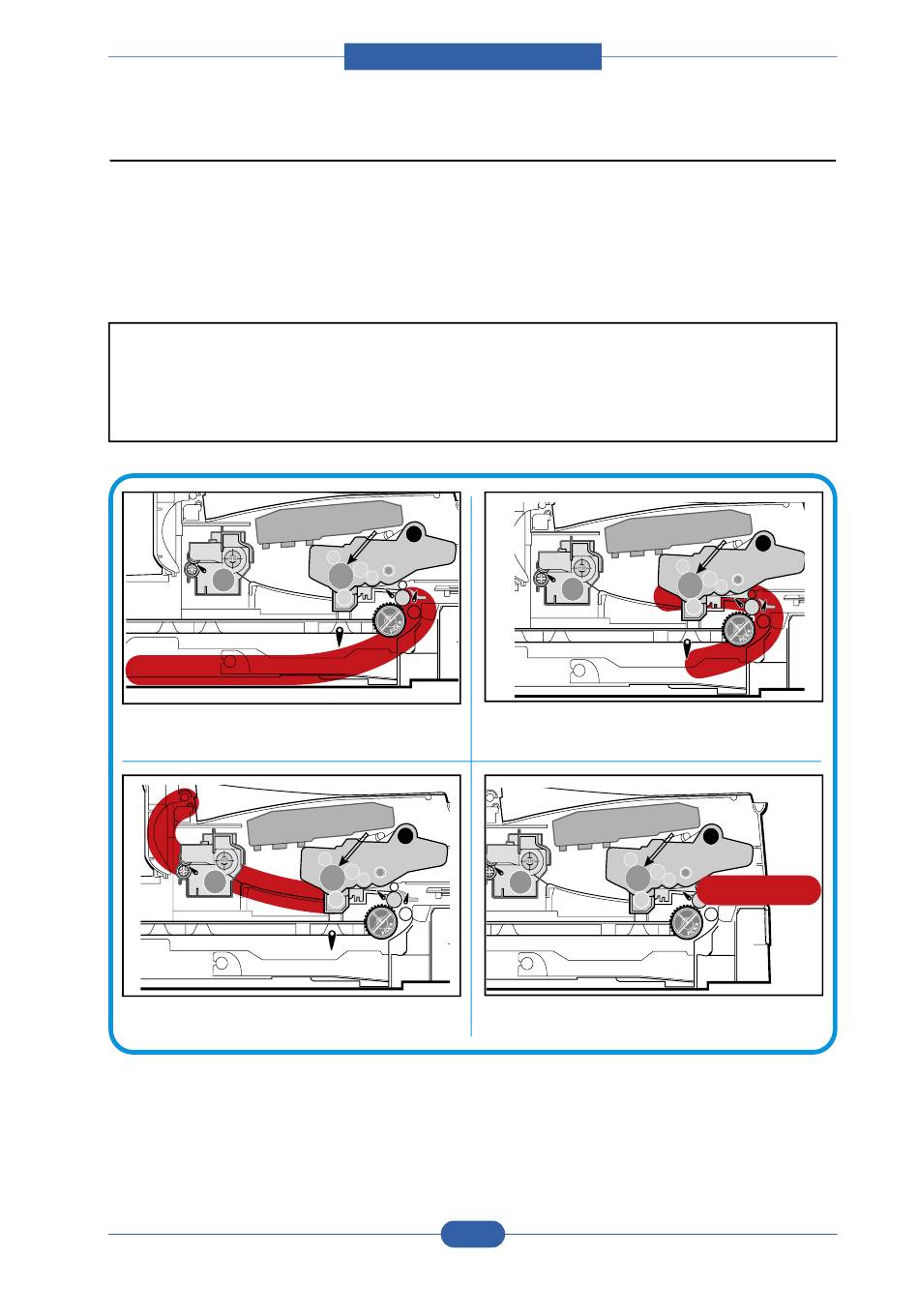

Fuser
EXIT
PR
Sensor
Paper Jam0
Fuser
EXIT
PR
Sensor
Paper Jam2
Service Manual
All manuals and user guides at all-guides.com
Alignment & Troubleshooting
L S U
Toner Cartridge
CR
DR
OPC SR
PTL
MP Sensor
Feed
TR FR
Sensor
Empty Sensor
L S U
Toner Cartridge
CR
DR
OPC SR
PTL
MP Sensor
Feed
TR FR
Sensor
Empty Sensor
4-4
Fuser
EXIT
PR
Sensor
Empty Sensor
Paper Jam1
L S U
Fuser
CR
DR
OPC
EXIT PR
Sensor
PTL
TR
Empty Sensor
Bypass Jam
L S U
Toner Cartridge
CR
DR
OPC SR
PTL
MP Sensor
Feed
TR FR
Sensor
Toner Cartridge
SR
MP Sensor
Feed
FR
Sensor
