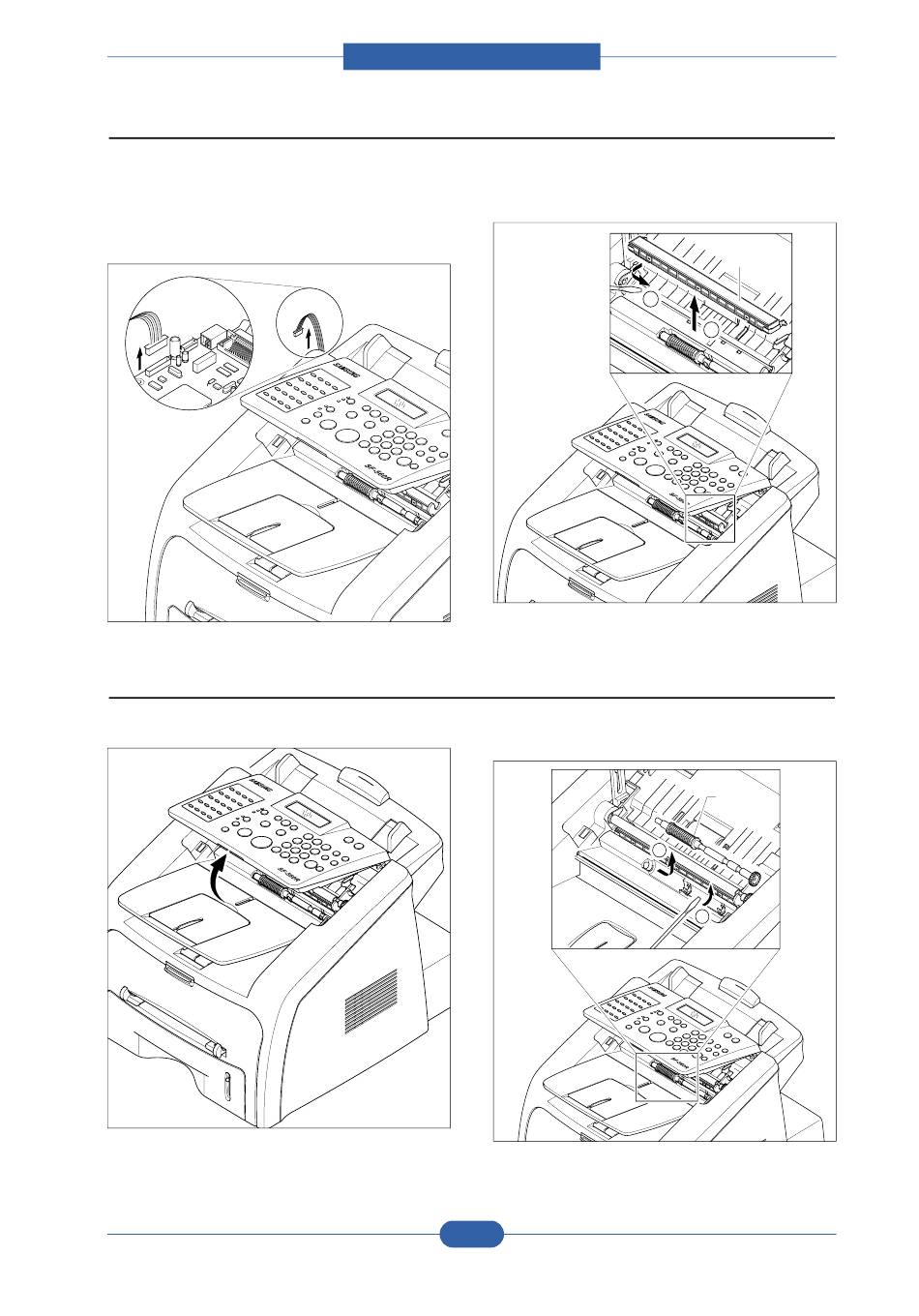

3.8 CIS

1. Before you remove the CIS, you should remove:
- White Roller Ass'y (see section 3.2)
- Rear Cover (see section 3.3)
2. Unplug the CIS connector from the Main PBA. (CN14)
CIS

3.9 Exit Roller

1. Open the OPE Unit.
Service Manual
All manuals and user guides at all-guides.com
Disassembly and Reassembly
CIS
3-7
3. Unlatch the CIS using a flat-blade screwdriver and
release it, as shown below. Disconnect harness from
CIS unit.
1
2. Pull up the Exit Roller using a flat-blade screwdriver
and remove it, as shown below.
2
CIS
2
Exit Roller
1
