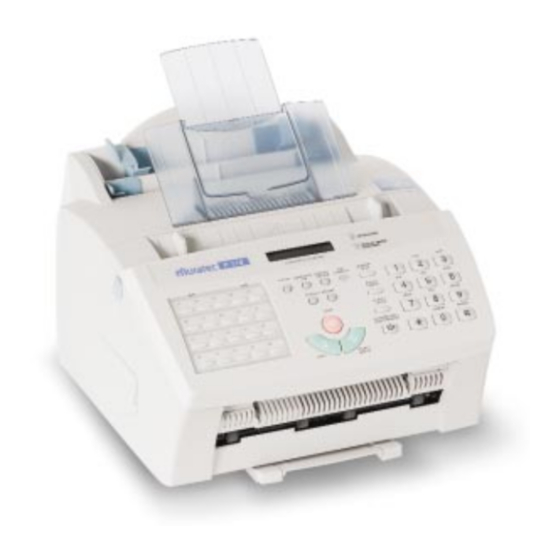

F-110

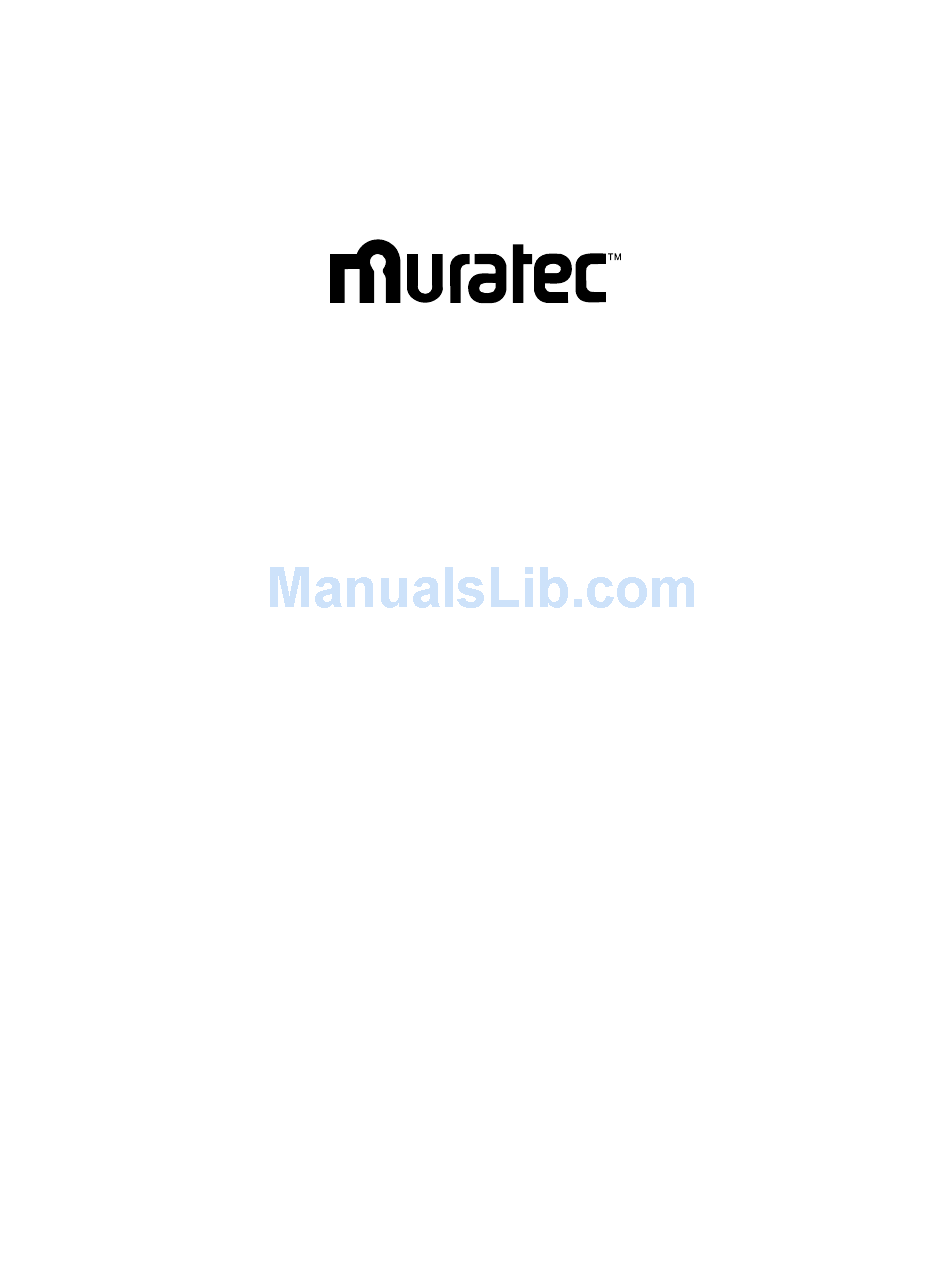

FIELD ENGINEERING MANUAL
U.S. version 1.0
Muratec America
6400 International Parkway #1500
Plano, Tx 75093
972/364-3300 (Voice)
972-/364-3465 (Fax)
www.muratec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-110 and is the answer not in the manual?

Questions and answers

Related Manuals for Muratec F-110

Summary of Contents for Muratec F-110

  • Page 1 F-110 FIELD ENGINEERING MANUAL U.S. version 1.0 Muratec America 6400 International Parkway #1500 Plano, Tx 75093 972/364-3300 (Voice) 972-/364-3465 (Fax) www.muratec.com...
  • Page 2 This page left intentionally blank...

  • Page 3: Table Of Contents

    F-110 Table of Contents Precautions Specifications Disassembly and Reassembly Circuit Description Troubleshooting Exploded View and Parts List Block Diagram Connection Diagram...

  • Page 4: Precautions

    1. Precautions Please read the following carefully to prevent any accidents and not to damage the unit during service. 1-1 Safety Precautions 1. Safety Precautions LASER STATEMENT (LASERTURVALLISUUS) There are some electric or machinery parts with safety related property. If the parts replaced are different from WARNING : NEVER OPERATE AND SERVICE THE PRINTER WITH THE PROTECTIVE COVER REMOVED the original, the safety may not function.
  • Page 5 Precautions 1-3 ESD Precautions Certain semiconductor devices can be easily damaged by 4. Use only an “anti-static” solder removal device. Some sol- static electricity. Such components are commonly called der removal devices not classified as “anti-static” can “Electrostatically Sensitive (ES) Devices”, or ESDs. generate electrical charges sufficient to damage ESDs.
  • Page 6 Precautions 1-4 Tools for Troubleshooting The following tools are recommended for safe and smooth troubleshooting described in this service manual. DVM(Digital Volt Meter) Pinset Standard: Indicates more than 3 digits. Standard: For general home use, small type. Cotton Swab Standard: For general home use, for medical ser- vice.

  • Page 7: Specifications

    2.Specifications ITEMS DESCRIPTION REMARKS General Size(W*D*H) 331 X 355.6 X 194.2 mm Weight 10.2Kg (With accessories) Power Rating AC 110V ~ 120V ± 15%, 50/60Hz ± 3Hz AC 220V ~ 240V ± 15%, 50/60Hz ± 3Hz Operating Environment Temperature : 10 ~ 32˚C Humidity : 20 ~ 85% RH 16 X 1 Char Interface...
  • Page 8 Specifications ITEMS DESCRIPTION REMARKS Telephone Handset Optional 1-Touch Dial 20EA Speed Dial 80EA Group Dial 20EA Caller ID TAD I/F Tone/Pulse Tone (DTMF) Pulse : Tech Mode only No Power Operation Earth/Recall External Phone Transfer Compatibility ITU-T G3 Communication System PSTN/PABX Modem Speed 33.6Kbps Fax Modem...
  • Page 9 Specifications ITEMS DESCRIPTION REMARKS Paper Type Handling Input Capacity 150 Sheets / 20Ib Optional Cassette Output Capacity 100 Sheets / 20Ib Output Control Face up Bypass Yes(single page) Media Type Plain, Coated, Transparency, Envelop, Card,Post Card, Label Media Size • Paper : A4, Letter, Legal, Folio, Executive, B5, A5 Envelop : Manual feeding only •...

  • Page 10: Disassembly And Reassembly

    3. Disassembly and Reassembly 3-1 General Precautions on Disassembly When you disassemble and reassemble compo- Releasing Plastic Latches nents, you must use extreme caution. The close proximity of cables to moving parts makes proper Many of the parts are held in place with plastic routing a must.
  • Page 11 Disassembly and Reassembly 3-2 Cradle 1. Push the lever and remove the cradle as shown below. 3-3 White Roller 1. Open the OPE cover. 2. Push the bushing on the end of the roller slightly Bushing inward, then rotate it until it reaches the slot. Then lift, the roller out.
  • Page 12 Disassembly and Reassembly 3-4 OPE Cover 1. Pull the cover release button on both sides of the 4. Remove two screws securing bracket scan board, machine, and open the front cover. then take out the bracket scan board. 5. Unplug two connectors and one wire from the scan board.
  • Page 13 Disassembly and Reassembly 7. Remove the stopper holding the OPE cover. 8. Unlatch the bottom ends, then remove the OPE cover.
  • Page 14 Disassembly and Reassembly 3-5 ADF Rubber 1. Open the OPE unit. 2. Insert a flat blade screw driver and pinset into the slot as shown below, and release the latches. Take out the Holder Rubber, Sheet ADF and the Rubber ADF. Guide Boss Holder Rubber Holder Rubber...
  • Page 15 Disassembly and Reassembly 3-6 OPE Board 1. Before you remove the OPE board, you should 3. Release two latches securing the both side of the remove: LCD and the two of four latches securing the board. Then remove the OPE board. –...
  • Page 16 Disassembly and Reassembly 3-9 Scan board 1. Before you remove Scan board, you should remove: – Bracket scam board (see page 3-3) 2. Unplug all the connectors from the scan board and remove the board. 3-10 Scan Motor 1. Before you disassemble Scan motor, you should 4.
  • Page 17 Disassembly and Reassembly 3-11 ADF roller 1. Before you remove the ADF roller, you should 3. Remove ADF roller from the scan front frame. remove: – OPE cover (see page 3-3) ADF Roller 2. Remove two screws securing the guide paper and remove the guide paper.

  • Page 18: Rear Cover

    Disassembly and Reassembly 3-13 Rear cover 1. Remove two screws. 2. Push the metal clip on the parallel port down and remove the rear cover from the main frame. 3-14 Top cover 1. Before you remove the ADF roller, you should 3.
  • Page 19 Disassembly and Reassembly 3-15 Tray 1. Before you remove the tray, you should remove: – OPE cover (see page 3-3) – Rear cover (see page 3-9) – Top cover (see page 3-9) 2. Take out the tray from the main frame. 3-16 LSU 1.

  • Page 20: Transfer Roller

    Disassembly and Reassembly 3-17 Transfer roller 1. Pull the cover release button on both sides of the machine, and open the front cover. 2. Lift the transfer roller using a proper tool (-Driver) and take out the roller. 3-18 Engine board 1.
  • Page 21 Disassembly and Reassembly 3-19 Pick-up roller ass’y 1. Before you remove the pick-up roller ass’y, you 4. Remove two screws and remove the roller from the should remove: plate. – All covers (see page 3-3, 3-9) – LSU (see page 3-10) 2.
  • Page 22 Disassembly and Reassembly 3-20 Knock-up ass’y 1. Before you remove the knock-up ass’y, you should 3. Remove the knock-up ass’y from the main frame. remove: – All covers (see page 3-3, 3-9) – LSU (see page 3-10) – Plate upper (see page 3-12) 2.
  • Page 23 Disassembly and Reassembly 3-22 Holder-pad 1. Before you remove the holder-pad, you should remove: – All covers (see page 3-3, 3-9) – LSU (see page 3-10) – Plate upper (see page 3-12) – Knock-up ass’y (see 3-13) – Cap-Pad (see 3-13) 2.
  • Page 24 Disassembly and Reassembly 3-24 Fan 1. Before you remove the fan, you should remove: – All covers (see page 3-0) – Motor ass’y (see page 3-15) 2. Unplug one connector from the engine board and remove the fan. 3-25 Gear pick-up ass’y 1.
  • Page 25 Disassembly and Reassembly 3-26 Solenoid 1. Before you remove the solenoid, you should remove: – All covers (see page 3-3, 3-9) 2. Unplug one connector from the engine board and remove one screw, then remove the solenoid. 3-27 HVPS board 1.
  • Page 26 Disassembly and Reassembly 3-28 Hook board 1. Before you remove the hook board, you should remove: – All covers (see page 3-3, 3-9) 2. Unplug one connector from the main board and remove two screws, then remove the hook board from the main frame.
  • Page 27 Disassembly and Reassembly 3-30 Thermostat 1. Remove one screw and remove the cover thermostat 2. Remove two screws and take out thermostat from the from the fuser ass’y. fuser ass’y. 3-31 Halogen Lamp 1. Before you remove the thermostat, you should 3.

  • Page 28: Pressure Roller

    Disassembly and Reassembly 3-32 Pressure roller 1. Before you remove the pressure roller, you should remove: – All covers (see page 3-3, 3-9) – Fuser ass’y (see page 3-17) 2. Lift and remove the pressure roller from the main frame. 3-33 Actuator-exit 1.
  • Page 29 Disassembly and Reassembly 3-34 Shield Engine ass’y 1. Before you remove the shield engine ass’y, you should remove: – Rear cover (see page 3-9) 2. Remove eight screws securing the shield engine ass’y and remove the shield engine ass’y from the main frame.
  • Page 30 Disassembly and Reassembly 3-36 Speaker 1. Before you remove the speaker, you should remove: – Rear cover (see page 3-9) – Shield Engine ass’y (see page 3-19) – SMPS board (see above) 2. Remove one connector that connects the speaker to the main board and two screws securing the speaker, then remove the speaker.

  • Page 31: Main Board

    Disassembly and Reassembly 3-38 Main board 1. Before you remove the main board, you should remove: – Rear cover (see page 3-9) – Shield Engine ass’y (see page 3-19) 2. Remove four screws and all the connectors (9) from the main board, then remove the board. 3-39 Sensor board 1.
  • Page 32 Disassembly and Reassembly 3-40 Actuator Empty/Feeder 1. Before you remove the actuator empty/feeder, you 3. Remove the Feed sensor and the Empty sensor. should remove: – Rear cover (see page 3-9) Feed Sensor – Shield Engine ass’y (see page 3-19) 2.
  • Page 33 Disassembly and Reassembly 3-41 Roller Feeder 1. Before you remove the actuator empty/feeder, you 3. Rotate the pick-up bushing as shown below and should remove: remove holder feeder ass’y and roller feeder. – All covers (see page 3-0) – Motor ass’y (see page 3-15) 2.

  • Page 34: Circuit Description

    4. Circuit Description 4-1 Main PBA 4-1-1 Summary The main circuit that consists of CPU, MFP controller including various I/O device drivers, system memory, scanner, printer, motor driver, PC I/F, and FAX transceiver controls the whole system. The entire structure of the main circuit is as follows: I/O Ports PLL &...
  • Page 35 Circuit Description 4-1-2 Circuit Operation • CLOCK 1) System Clock Device Oscillator Frequency 9.500132 MHz KS32C65100 RISC PROCESSOR: drives PLL internally and uses 37.17 MHz. 2) Video Clock Device Oscillator Frequency 28.7448 MHz 3) USB Clock Device Oscillator Frequency 48 MHz±%...
  • Page 36 Circuit Description • KS32C65100 MICROPROCESSOR 1) KS32C65100 MICROPROCESSOR PIN & INTERFACE Signal Pin No. I/O Type Description OSCI KS32C65100 master clock input. OSCO KS32C65100 master clock output. PLL_FILTER PLL filter Not reset. nRESET is the global reset input for the nRESET KS32C65100.
  • Page 37 Circuit Description Signal Pin No. I/O Type Description CIS_CLK CIS shift clock CIS_SI CIS latch signal PHA_IA0 Line feed motor phase signal A PHA_IA1 Line feed motor phase signal AZ PHB_IB0 Line feed motor phase signal B PHB_IB1 Line feed motor phase signal BZ LF_PH0/GOPA[21] Line feed motor control signal 0 LF_PH1/GOPA[22]...
  • Page 38 Circuit Description Signal Pin No. I/O Type Description Receive data input for the UART0. RXD0 is the UART0 RXD0/GIP[0] channel's input signal for receiving serial data. Receive data input for the UART1. RXD1 is the UART1 RXD1/GIP[1] channel's input signal for receiving serial data. Receive data input for the UART2.
  • Page 39 Circuit Description Signal Pin No. I/O Type Description Not external chip select. Three I/O banks are provided for external memory-mapped I/O operations. Each I/O bank nECS[1:0] 12,13 contains up to 4M half-word. The nECS signals indicate that an external I/O bank is selected. nRCS[2] Not ROM/SRAM chip select.
  • Page 40 Circuit Description Signal Pin No. I/O Type Description VDD_PLL PLL power (3.3V). SAVDD Analog power for scan ADC and general ADC (3.3V). SAVSS Scan ADC ground. GAVSS General ADC ground 15, 30, 81, 3.3V internal power. 3VDD 115, 131, Externally connected to the 3.3V regulator. 5V I/O power.
  • Page 41 Circuit Description 4-1-3 PROGRAM ROM (FLASH MEMORY) 1) DEVICE TYPE No. AM29F800B CAPACITY 2 Mbit (512K * 16bit * 2) 2) PROGRAMMING BEFORE ASS’Y EPROM PROGRAMMER or PROGRAMMING at the factory AFTER ASS’Y DOWNLOAD from PC 4-1-4 DRAM CONTROL 1) DEVICE TYPE NO.
  • Page 42 Circuit Description FM336 FEATURES • 2-wire half - duplex fax modem modes with send and receive data rates up to 33600 bps. - V.34, V.17, V.29, V.27 ter, and V.21 channel 2 - Short train option in V.17 and V.27 ter •...
  • Page 43 Circuit Description Signaling Rates, and Data Rates Carrier Frequency Data Rate (bps) Symbol Rate Bits/Symbol - Bits/Symbol - Constellation Configuration Modulation1 (Hz) –0.01% –0.01% (Symbols/Sec.) Data Points V.34 33600 TCM Note 2 33600 3429 only Note 2 Note 2 Note 2 V.34 31200 TCM Note 2 31200...
  • Page 44 Circuit Description Modem Functions Interface Signals /RTS XTLI Crystal XTL0 /CTS TDCLK CLKIN Oscillator XTCLK /RLSD V.24 Interface telephone /RDCLK TXA1 line /DTR TXA2 Line /DSR** RING Interface /RI* RINGD /TALK F M 3 3 6 M o d e m EYEXY Optional EYESYNC...
  • Page 45 Circuit Description FM336 Pin Signals 4-12...
  • Page 46 Circuit Description FM336 Signals Definitions 4-13...
  • Page 47 Circuit Description FM336 Signals Definitions (Cont’d) 4-14...
  • Page 48 Circuit Description FM336 Signals Definitions (Cont’d) 4-15...
  • Page 49 Circuit Description FM336 Signals Definitions (Cont’d) 4-16...

  • Page 50: Scanner Part

    Circuit Description 4-1-6 Scanner Part CIS DRIVER, INPUT PROCESSOR CIS contacl signal is consist of BLED, RLED, GLED, CIS_CLK CIS_SI. CIS driver power supply is +5v, LED driver power sup- ply is +5v also. As CIS input signal, minc-Vref values O, MAXC+Vref Values is about 1.2V. SPECIFICATION Readable width 216mm...
  • Page 51 Circuit Description ELECTRICAL CHARACTERISTICS (TA=25˚C) Item SYMBOL MIN. TYP. MAX. UNIT NOTE Power Supply 4.75 5.25 VLED 4.75 5.25 Input Voltage SI & CLK Input Current µA. SI & CLK LED Current ILEDr REF. ILEDg REF. ILEDb REF. Clock Frequency. Clock Pulse “L”...
  • Page 52 Circuit Description CIS Block Diagram VLED LEDR LEDG LEDB ROD LENS ARRAY 20 21 SENSOR SHIFT REGISER & ANALOG SWITCH OP AMP 2.5ms 1.2ms 1.2ms LED_R 1.2ms LED_G 1.2ms LED_B SIG O/P B O/P R O/P G O/P B O/P R O/P G O/P 7.5ms/line...
  • Page 53 Circuit Description 4-1-7 HOST INTERFACE: Parallel Port Interface PARALLEL PORT INTERFACE PART KS32C61100 has the Parallel Port Interface Part that enables Parallel Interface with PC. This part is connected to PC through Centronics connector. It generates major control signals that are used to actuate parallel communication.
  • Page 54 Circuit Description COMPATIBILITY HARDWARE HANDSHAKING TIMING PPD( 7: 0) DATA BUSY nSTROBE nACK ECP HARDWARE HANDSHAKING TIMING (FORWARD) nSTROBE BUSY PPD( 7: 0) BYTE1 BYTE0 nAUTOFD COMMAND BYTE DATA BYTE 1. The host places data on the data lines and indicates a data cycle by setting nAUTOFD 2.
  • Page 55 Circuit Description ECP HARDWARE HANDSHAKING TIMING (REVERSE) nACK nAUTOFD PPD ( 7: 0) BYTE1 BYTE0 BUSY COM M AND BYTE DATA BYTE nINI T 1. The host request a reverse channel transfer by setting nINIT low 2. The peripheral signals that it is OK to proceed by setting PE low 3.
  • Page 56 Circuit Description 4-2 OPE PBA 4-2-1 SUMMARY OPE Board is separated functionally from the main board OPE PBA consists of U1(MICOM, HT48C5A),LCD, key and operated by the micom(HT48C5A) in the board. OPE matrix, LED indicators, SCAN position sensor and the doc- and the main use UART (universal asynchronous receiv- ument detect sensor.
  • Page 57 Circuit Description 4-3 LIU PBA The LIU (Line Interface Unit) using the discrete method is comprised of the following. (1) Tel_line Interface Circuit that connects the PSTN(exchange) and the system (Facsimile) (2) Telephone circuit composed of dial/speech circuit. 4-4-1 Tel_Line interface Circuit Tel_Line Interface is the path that connects the signals between PSTN(exchange) and the system (Facsimile) and it is com- prised of Tel-Line Interface Circuit and Impedance Matching Trans Circuit.
  • Page 58 Circuit Description 4-4-3 Detailed Spec. TEL_LINE INTERFACE CIRCUIT 1) TEL_LINE INTERFACE CIRCUIT • It is an interface that physically connects facsimile to the PSTN (public switching telephone network) through TIP and RING as in fig. 1. • ARS 1-3 protects the system from voltage overload such as the surge coming through PSTN. ARS 2 and ARS 3 are used as overload protection in common mode (between TIP/RING and FRAME GROUND).
  • Page 59 Circuit Description RINGER DIAL CIRCUIT 1) Ringer Circuit • The ring detect circuit detects the ring signal by sending the bell signal sent from PSTN to the primary photo coupler (PC814). At this point, C(1uF/250V) is used to match the ring impedance and R is coupled directly in order to prevent any damage to the photo coupler due to ring voltage.
  • Page 60 Circuit Description 4-4 Engine PPA 4-4-1 Engine Configuration 4-4-1-1. Video Controller Board Video Controller Board receives image data from the host computer and converts it into bitmap (binary) image or receives bitmap image directly from the host computer and sends it to the engine controller board. 4-4-1-2.

  • Page 61: Developing Process

    Circuit Description 4-4-2. Developing Process 4-4-2-1 Feeder Engine operates this unit. Solenoid rotates the feed roller and feeds one paper. Then the paper is fed into the set and hits the actuator of the feed sensor. At this point, the engine detects the signal and prepares to spray according to the image data. If any problem happens to this feed sensor operation, the system displays “paper jam error”...
  • Page 62 Circuit Description DEVELOPER BLOCK DIAGRAM Engine Operating Descriptions metering blade -630V -430V OVERALL OPERATING STRUCTURE OF THE SYSTEM HOST COMPUTER VIDEO CONTROLLER ENGINE CONTROLLER H.V.P.S /HSYNC DEVELOPER FUSER FACE UP PAPER PATH FEED EXIT SENSOR SENSOR 4-29...
  • Page 63 Circuit Description 2.Charging 3.Exposure 4.Development 7.Fixing 8.Exit 1.Feeding EXIT FEED SENSOR SENSOR 6.Transfer 5.Pre-Transfer < Engine Operating Description > 4-4-2-4. Developer Unit On the surface where OPC drum and developer roller (rotate in opposite direction) meet, the toner that has negative electric characteristic moves to the exposed part (-50V) due to the electric potential difference, but it will not move to the unexposed part (-800V).
  • Page 64 Circuit Description Heat Lamp Thermistor Heat Roller Paper Toner Pressure Spring Roller 4-4-2-6. Anchorage unit The toner transferred on to the paper is at the electronically low state and it can be easily scattered. Considering this fact, we used heat (180°C) and pressure (4kg) to fix the toner on the paper permanently. Then the image formed will remain on the paper permanently.
  • Page 65 Circuit Description BIAS OUTPUT UNIT BLOCK DIAGRAM OUTPUT REGULATION TRANS SWITCHING CIRCUIT CIRCUIT CONTROL UNIT MHV-PWM SWITCHING CONTROL UNIT DEV-EA SWITCHING CONTROL UNIT SUPPLY-EA TRANSFER OUTPUT UNIT BLOCK DIAGRAM THVPWM REGULATION SWITCHING CONTROL UNIT CIRCUIT TRANS CONTROL UNIT FE E DBACK THVEA SWITCHING REGULATION...
  • Page 66 Circuit Description 4-4-2-8. MHV (Electrification Output Enable) Electrification Output Enable is the electrification output control signal 'PWM-LOW ACTIVE'. When MHV-PWM LOW signal is received, Q401 turns on and the steady voltage will be accepted to the non-inverting termi- nal of OP-AMP 324. As the voltage higher than the inverting reference voltage of OP-AMP, which is set to R405 and R406, OP-AMP output turns high.
  • Page 67 Circuit Description 4-4-2-9. BIAS (supply/dev output unit) BIAS voltage output is generated only when electrification voltage is set to output. In the circuit presented above, it organizes enough zener-diodes required to output dev/supply voltage from electrification output. Supply voltage is output when the supply-ea signal is 'L'. When supply-ea is 'L', Q104 turns off and as Q105 does not turn on, the electric potential of the output unit retains the electric potential of zener and thus -500V is output as the supply voltage.
  • Page 68 Circuit Description 4-4-2-10. THV(THV(+)/THV(-) Output Unit) Transfer(+) output unit is the transfer output control signal 'PWM-LOW ACTIVE'. When THV-PWM LOW signal is received, Q203 turns on and the steady voltage will be accepted to the non-inverting terminal of OP-AMP 324. As the voltage is higher than the inverting reference voltage of OP-AMP, OP-AMP output turns high. The 24V power adjusts the electric potential to ZD201 and ZD202, sends IB to TRANS auxiliary wire through current-restrict- ing resistance R215 via R212 and C204, and eventually Q204 will turn on.
  • Page 69 Circuit Description 4-4-2-11. Environment Recognition THV voltage recognizes changes in transfer roller environment and allows the voltage suitable for the environment in order to realize optimum image output. The analog input is converted to digital output by the comparator that recognizes the environ- mental changes of the transfer roller.

  • Page 70: Troubleshooting

    5. Troubleshooting 5-1 Preventative Maintenance The cycle period outlined below is a general guideline for maintenance. The example list is for an average usage of 50 trans- mitted and received documents per day. Environmental conditions and actual use will vary these factors. The cycle period given below is for reference only. COMPONENT CLEANING CYCLE REPLACEMENT CYCLE...
  • Page 71 Troubleshooting 5-2-1 System Data List in TECH MODE Function Item Content Default FAX NUMBER/NAME FAX NUMBER FAX NAME TIME/DATE SETUP DATE FORMAT EUROPE/USA TIME/DATE SYSTEM SETUP LANGUAGE ENG/GER/FRE/ITA/SPA/POR/DUT ENGLISH SENDING MEMORY ON/OFF SEND FROM CONFIRM ON/OFF/ERROR ERROR FAX PAPER SIZE LETTER/A4/LEGAL LETTER TONER SAVE MODE...
  • Page 72 Troubleshooting 5-2-2 Tech Mode Options In TECH mode, press SETUP, then press until PAUSE TIME ‘TECH MODE’ appears in the display. Press Start/Enter. • Pause time mean delay time (unit: second) inserted The following technical options are available. between dial number signal and the next number of signal in the automatic dial (One touch, Speed dial, Redial) and the manual dial.
  • Page 73 Troubleshooting 5-2-3 Maintenance Options In TECH mode, press SETUP, then press until NOTIFY TONER LOW ‘MAINTENANCE’ appears in the display. Press Start/Enter. • With this feature enabled, when the toner becomes low, the The following technical options are available toner low information will be sent to ta specified contact point, for example, the service company.
  • Page 74 Troubleshooting PRINTING INFO Adjust Shading Sample Pattern • This feature allows the machine to automatically print vari- ous information, like toner count, transfer voltage, fusing temperature and so on, at the bottom of each printed page. • PAGE TONER CNT: prints the number of dots used to print the page.
  • Page 75 Troubleshooting 5-2-4 Printout Report In TECH mode, press Report/Help, then select the desired SCHEDULE INFORM list or report by using key, then press Start/Enter. • This list shows a specific information on the documents The following options are available currently stored for delayed transmission. It provides the operation number, starting time, type of operation, etc.
  • Page 76 Troubleshooting 5-2-6 Maintenance List A number of reports can be printed from the fax machine To printout the protocol list : within the test mode. The protocol list all contain detailed information which may be required when contacting techni- 1. Get into the Tech mode by pressing Setup, #, 1, 9, 3, 4. cal support.

  • Page 77: Error Messages

    Troubleshooting 5-3 Diagnostics This section describes methods and procedures to isolate the cause of a malfunction in the machine. This machine displays diag- nostic information on the LCD. In addition, it can perform a series of tests that allow the machine to observe individual machine functions.
  • Page 78 Troubleshooting Error Message Description Solution NO PAPER The recording paper has run out. Load the recording paper. OVER HEAT The printer part in your unit has overheated. Please wait until it cools down. If you cannot solve the problem, please call for service.

  • Page 79: Print Quality

    Troubleshooting 5-4 Print Quality Roller Abnormal image period Kind of abnormal image OPC Drum 75.4mm •White spot on black image •Black spot Charge Roller 37.7mm Black spot Supply Roller 26.8mm Horizontal density band Develope Roller 31.6mm Horizontal density band Transfer Roller 47.1mm Black side contamination/transfer fault Heat Roller...
  • Page 80 Troubleshooting 5-6 Troubleshooting Flow Chart Vertical black line and band Any obstacles on OK after replacing the developer blocking Replace the developer developer? the laser beam. OK after removing the obstacles? OK after Remove part on the paper replacing the LSU? path causing the trouble Any obstacles ON mirror lens of LSU and...
  • Page 81 Troubleshooting No Image A on No image? next page Self test Self testing Re-test after replacing the pattern prints? is possible via conector or Main board Tech Mode? Check connection to Take out the cartridge computer or replace and prepare the tester controller for electronic connection Is the OPC...
  • Page 82 Troubleshooting Is the connection of Check the connection of OPC GND and Frame Ground frame Ground and OPC GND correct? (less than 10 ‰) Trnasfer voltage OK? (on the transfer roller shaft) Are the connection terminal Repair or replace terminal and connection correct? Replace HVPS or repair defective component...
  • Page 83 Troubleshooting Light image Is it not over the guaranty life of dot Replace the developer counter? Is the toner save Ok after setting to the mode or the light mode normal mode? is selected? Is the high voltage Replace the HVPS normal? (charging, developing, transfer)
  • Page 84 Troubleshooting All Black Check the path among video Does the controller, engine board, All black in video data line to LSU HVPS, LSU for the shortage printing area? transit to High/Low when or open -> Repair or replace printing? the boards Replace LSU Is transfer voltage supplied...
  • Page 85 Troubleshooting Vertical White Line (Band) Check if the printout is still has the White line same problem even right after missing definitely? passed through the transfer roller Dirt of dust stuck onto the window of internal The ribs in fuser or toner on the roller may invoke lens of LSU the image problem ->...
  • Page 86 Troubleshooting Dark Image Dark selected via RCP? Change to Normal and test Same at Normal? Works cor Repair or replace the defective with -350V of Bias component voltage? Toner over supply due to the Works adjustment fault of metering correctly after blade in developer replaced LSU? ->...
  • Page 87 Troubleshooting Background Print 20 to 30 pages using Recommended paper used? the recommended paper Is pressure of transfer roller too high? Replace transfer Same problem Does the operation of roller’s holder occurs? TR work properly? - Adjust voltage or replace HVPS Transfer, charge and developing - Repair or replace after checking the...
  • Page 88 Troubleshooting Ghost Clean transfer roller’s holder and TR drive gearor replace TR holder ass’y Does Is it regular Is it regular Is it regular the operation interval of 47mm? interval of 75.4mm? interval of 31.6mm? of TR work properly? (as transfer roller interval) Is it regular interval of Clean TR drive...
  • Page 89 Troubleshooting Black Spot Is it regular Is it regular Remove obstacles interval of 37.7mm? interval of 75.4 mm? stuck on OPC drum’s surface Perform the OPC The problem Bad image When taking cleaning using randomly occured removes by out the cartridge, the control panel due to the toner scratching?
  • Page 90 Troubleshooting Horizontal Band The OPC is damaged under the Black band direct sunlight for around 5 Black band? is far about 10mm from minutes -> If the same problem white band? persists in 10 hours, replace the developer Problem of internal contacts in OPC ->...
  • Page 91 Troubleshooting Toner Contaminations on Back of Paper Transfer roller Clean the transfer roller is clear ? Paper path is Clean the paper path clear ? Clean the pressure roller 5-22...
  • Page 92 Troubleshooting Partial Blank Image (not Periodic) Is it not over the guaranty life of dot Replace the toner cartridge counter? Is toner cartridge Install the toner cartridge correctly installed correctly? Transfer roller Clean the TR holder, the TR gear, works properly? OPC roller gear and the transfer roller - Clean the contact point of transfer roller - Check the output of high voltage terminal...
  • Page 93 Troubleshooting Partial Blank Image (Periodic) Is it not over the guaranty life of dot Replace the toner cartridge counter? Is toner Install the toner cartridge cartridge installed correctly correctly? Clean the TR holder, the TR Is it regular Transfer roller gear OPC roller gear and the interval of 47.1mm? works properly?
  • Page 94 Troubleshooting Irregular Density Defective agitator in OK after transfer/ When gray the toner supplying part taking out and charge/developing pattern printing, of developer rocking the toner voltage drops while irregular density ->Replace the developer cartridge? printing? persists? Check if the ’guide deve spring’...
  • Page 95 Troubleshooting White Spot Too high voltage supplied Transfer Is it regular due to the setting error of voltage is normal? interval of 75.4mm? transfer voltage -> Adjust/replace HVPS Obstacles stuck on OPC’s D/R in developing unit has surface the defect ->...
  • Page 96 Troubleshooting Trembling at the End When OHP Printing Is the OPC mode selected using Set to OHP mode the software application? Recommended Use the recommended film OHP film used? When OHP Inserted over printing, does the fan Use the recommended film than 10 films into temporarily stops the MPF?
  • Page 97 Troubleshooting Poor Fusing Grade The machine While printing, After printing placed under the the voltage of pin 208 Thermistor’s completed, any error severe low tempera of U5 (CPU) on Main contact is OK? related fuser? ture for a long board is 2.0V time? ~2.3V? Re-assemble...
  • Page 98 Troubleshooting No Power (LCD NO display LED Off) Plug in the Check the voltage first and plug power cord? the power cord The power voltage supplying is Supply the power as the rating the same as rating? The fan Connections Re-connect firmly revolves when on board are OK?
  • Page 99 Troubleshooting Fuser Error Measure the resistance at the both ends of AC Line with covers open Thermostat is open due to the heat etc. Less than 10W? -> Replace the thermostat Remove the covers Check the PCI and fusing control part and CN502 Re-assemble the top AC is being supplied? on the SMPS...
  • Page 100 Troubleshooting Paper Jam (Mis-feeding) The Engine board defected Sounds the -> Replace boards solenoid on when starts print? The solenoid defected -> Replace it The pick-up unit is Does the assembled wrong paper move? -> Re-assemble or replace the unit Does the Too many paper move more than...
  • Page 101 Troubleshooting Paper Jam (Jam1) Paper Paper Check the actuator exists and its actuator of stopped before stopped before operation and around the engine board paper exit sensor the OPC? the fuser? -> Replace works OK? Check the LSU and Check the roller Is the paper if it has the defect Feeds...
  • Page 102 Troubleshooting LSU Error Check CBF Harness28P Try again to connector (MAIN B’D to ENGINE B’D) Replace connector Check MAIN B’D CN9-3, Replace MAIN B’D P_MOTOR Signal Check MAIN B’D CN9-4, Replace LSU LREDADY Signal Check MAIN B’D CN9-9, Replace MAIN B’D LDON Signal Check MAIN B’D CN9-6,...

  • Page 103: Exploded View And Parts List

    6. Exploded View and Parts List Main Assembly ..........Shield Engine Unit Assembly .

  • Page 104: Main Assembly

    Exploded View and Parts List 6-1 Main Assembly 18-2 16-2 16-1 18-1 14-1 14-2 19-2 19-1 10 &12 17-2 17-1...
  • Page 105 Exploded View and Parts List Main Assembly Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark Muratec F-110 SMPS-V1 JC44-00032A 110V UNIT-LSU JC59-00006A IPR-PLATE_CHANNEL JC70-00058A MEC-PLATE UPPER JC75-00057A MEC-TRAY(P) JC75-00075A MEC-CRADLE JC75-00083A OPTIONAL PBA MAIN-LIU PBA...

  • Page 106: Shield Engine Unit Assembly

    Exploded View and Parts List 6-2 Shield Engine Unit Assembly LIU B'd...
  • Page 107 Exploded View and Parts List Shield Engine Unit Assembly Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark ELA HOU-SHIELD ENGINE JC96-02087D CABLE-FLAT J3809-001161 CBF HARNESS-LSU JC39-00043A CBF HARNESS-MAIN-HVPS JC39-00109A CBF HARNESS-MAIN/HOOK JC39-00174A CBF HARNESS-MODULA 2 JC39-00175A CBF HARNESS JC39-40022A...

  • Page 108: Engine Assembly

    Exploded View and Parts List 6-3 Engine Assembly 13-1 13-2 21-1 21-2 S-10 21-3 17-2 17-3 17-4 17-1 22-3 22-1 22-2 Frame Lawer Ass'y Bushing-Shaft...
  • Page 109 Exploded View and Parts List Engine Assembly Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark ELA HOU-ENGINE ASS’Y JC96-02086A MEC-CAM PICK UP JC75-00072A PMO-CAM_PICKUP JC72-00107A PMO-SHAFT_PICKUP JC72-00108A CBF HARNESS-EARTH (TX MOTOR) JB39-00017A SOLENOID-(APOLLO) JC33-00002A CBF HARNESS-MO_SOL JC39-40584A...

  • Page 110: Frame Lower Assembly

    Exploded View and Parts List 6-4 Frame Lower Assembly 29-4 29-1 Transfer Roller 29-3 29-2 30-3 30-1 30-2 34-1 34-2 27-1 27-2 28-3 28-4 28-3 28-5 28-1 28-2...
  • Page 111 Exploded View and Parts List Frame Lower Assembly Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark ELA HOU-FRAME LOWER JC81-00463A 110V CBF HARNESS-OPE GND JC39-00036A CBF HARNESS-FUSER JC39-00042A SPRING-P/R (APOLLO) JC61-00014A SPRING-GUIDE DEVE JC61-00038A BEARING-PRESSURE R JC66-10205A...

  • Page 112: Fuser Assembly

    Exploded View and Parts List 6-5 Fuser Assembly 14-2 14-1 6-10...
  • Page 113 Exploded View and Parts List Fuser Assembly Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark ELA HOU-FUSER 110V JC81-00439A 110V THERMISTOR-NTC J1404-001188 THERMOSTAT J4712-000001 LAMP-HALOGEN J4713-001120 110V PMO-FUSER_UPPER JC72-00129A PMO-BUSHING H/R L JC72-00530A PMO-BUSHING H/R R JC72-00529A PMO-COVER_THERMOSTAT...

  • Page 114: Plate-Upper Unit Assembly

    Exploded View and Parts List 6-6 Plate-Upper Unit Assembly 6-12...
  • Page 115 Exploded View and Parts List Plate-Upper Unit Assembly Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark MEC-PLATE UPPER JC75-00057A IPR-UPPER-PLATE JC70-00036A IPR-PLATE SPRING DEV JC70-10223A ELA UNIT-FUSE DEVE JC96-01117A MEA ETC-ROLLER PICK UP JC97-01308A PMO-HOUSING_PICKUP JC72-00109A...

  • Page 116: Ope Unit

    Exploded View and Parts List 6-7 OPE Unit OPE Unit Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark AS-OPE ASS’Y MUR JC81-00778A MPR-COVER ADDRESS JC74-00005A MPR-PAPER ADDRESS JC74-00004A PCT-LCD WINDOW JC72-00954A PMO-OPE COVER JC72-00952A PMO-KEY OT JC72-00188A...

  • Page 117: Scan Upper Assembly

    Exploded View and Parts List 6-8 Scan Upper Assembly Scan Upper Assembly Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark ELA HOU-SCAN UPPER JC81-00457A MEC-PINCH JG75-10015A RPR-SPONGE ADF JB73-10913A MPR-TAPE ADF JB74-10917A CBF HARNESS-SCAN GND JC39-00101A SPRING-SENSOR JC61-00018A...

  • Page 118: Front Assembly

    Exploded View and Parts List 6-9 Front Assembly Bushing White 6-16...
  • Page 119 Exploded View and Parts List Front Assembly Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark ELA HOU-FRONT ASS’Y JC81-00458A MEA ETC-GUIDE PAPER JC97-01462A PMO-GUIDE PAPER JC72-00666A PMO-GUIDE DOC L JC72-00136A PMO-GUIDE DOC R JC72-00137A GEAR-PINION JG66-40003A...

  • Page 120: Rx Drive Unit Assembly

    Exploded View and Parts List 6-10 RX Drive Unit Assembly RX Drive Assembly Parts List O : Service available X : Service not available Description SEC.Code Q’ty Remark ELA HOU-RX DRIVE JC96-01755A MOTOR-STEP JC31-00005A PMO-GEAR_71/28 JC72-00152A PMO-GEAR_73/22 JC72-00153A PMO-GEAR_132/19 JC72-00158A IPR-BRKT_MOTOR JC70-00201A IPR-BRKT_GEAR...

  • Page 121: Block Diagram

    7. Block Diagram...

  • Page 122: Connection Diagram

    8. Connection Diagram SCAN MOTOR 1 +24 1 CIS_SIG 2 +24 2 GND 3 SCNMOT_A 3 +5V 4 SCNMOT_*A 4 GND 5 SCNMOT_B 5 GND 6 SCNMOT_*B 6 START PULSE 7 GND 8 CIS MAIN CLOCK 1 GND5 9 LED B 2 +5 V 10 LED G 11 LED R...
