3.21 SMPS

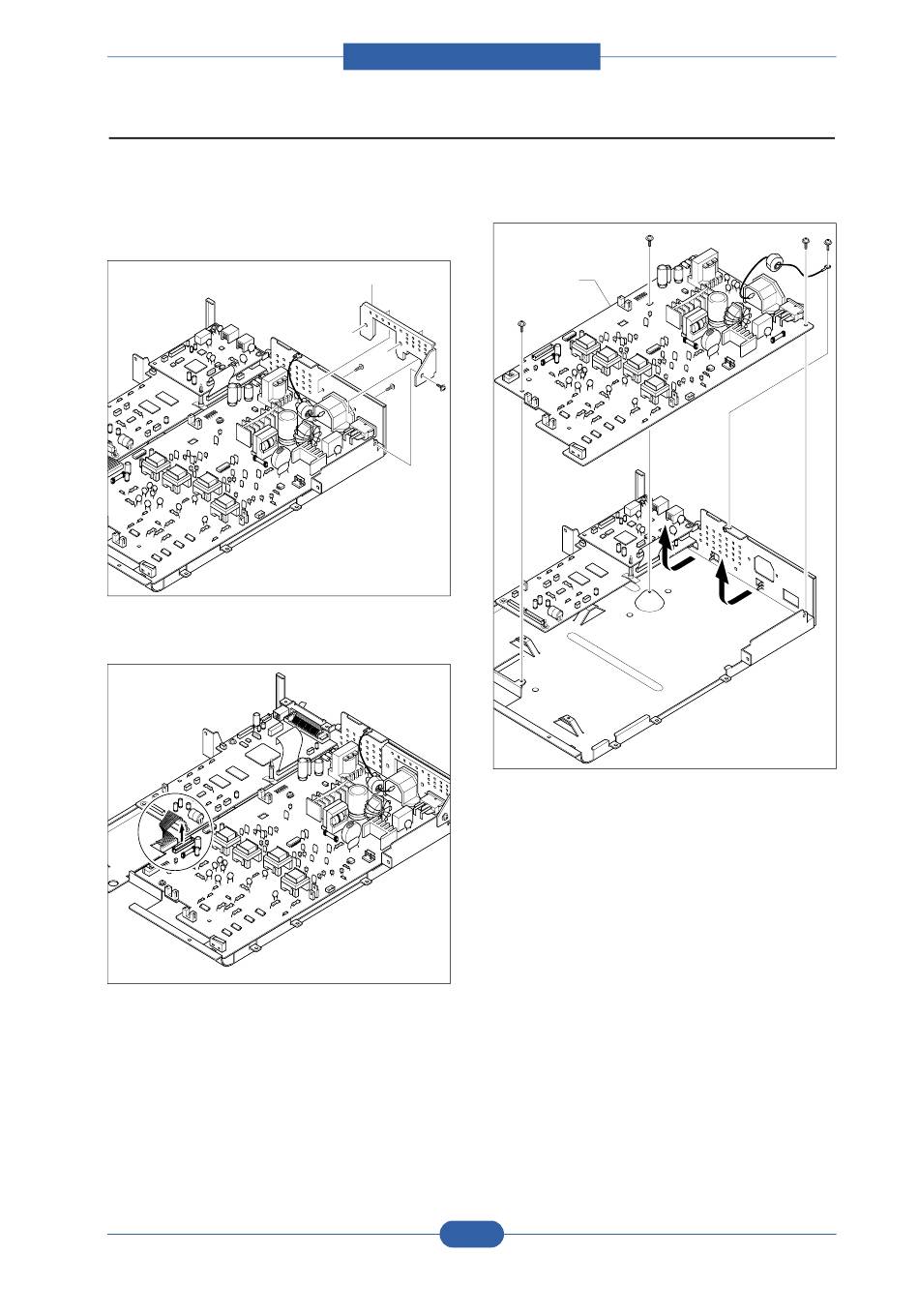

1. Before you remove the SMPS, you should remove:
- Engine Shield Ass,y (see section 3.19)
2. Remove the three screws securing the Inlet Bracket
and remove it.
3. Unplug one connector.
Service Manual
All manuals and user guides at all-guides.com
Disassembly and Reassembly
Inlet Bracket
3-17
4. Remove the four screws securing the SMPS and
remove it. Then Lift the SMPS out, as shown below.
SMPS
