White Roller Ass,Y; Rear Cover - Muratec F-114 Service Manual

3.2 White Roller Ass,y

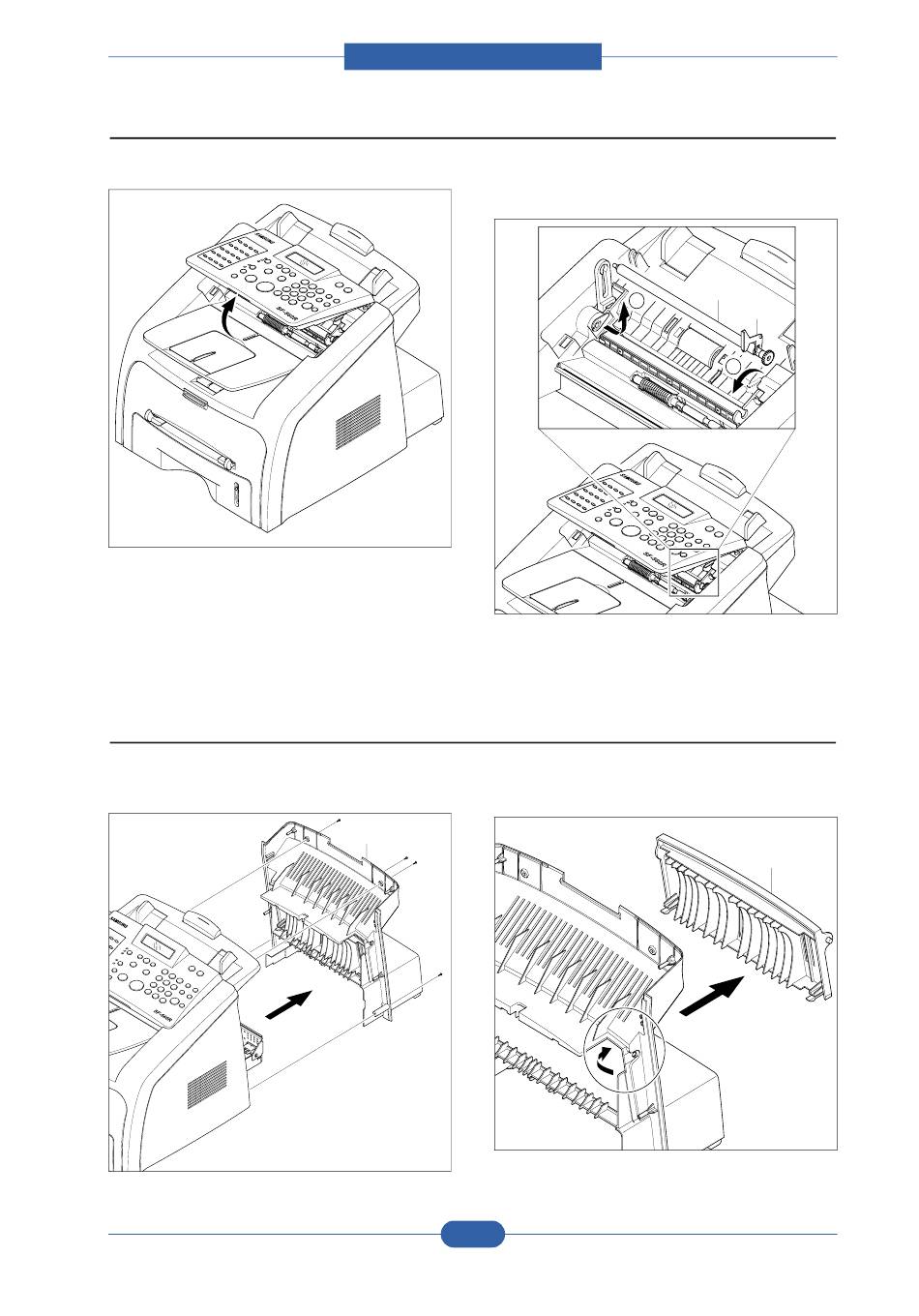

1. Open the OPE Unit.

3.3 Rear Cover

1. Remove the four screws securing the Rear Cover and
remove it, as shown below.
Service Manual
All manuals and user guides at all-guides.com
Disassembly and Reassembly
Rear Cover
3-2
2. Push the Bushing on RH end of the roller slightly inward,
then rotate it until it reaches the slot as shown below.
Then lift the roller out.
2
Note: Check the roller for any dirt. Clean with a soft cloth
dampened with water.
If the roller is heavily worn replace it with a new one.
2. Unlatch the Face up Cover Securing the Rear Cover,
as shown below. Then lift the Face up Cover out.
White Roller
Bush
1
Cover-Face up
