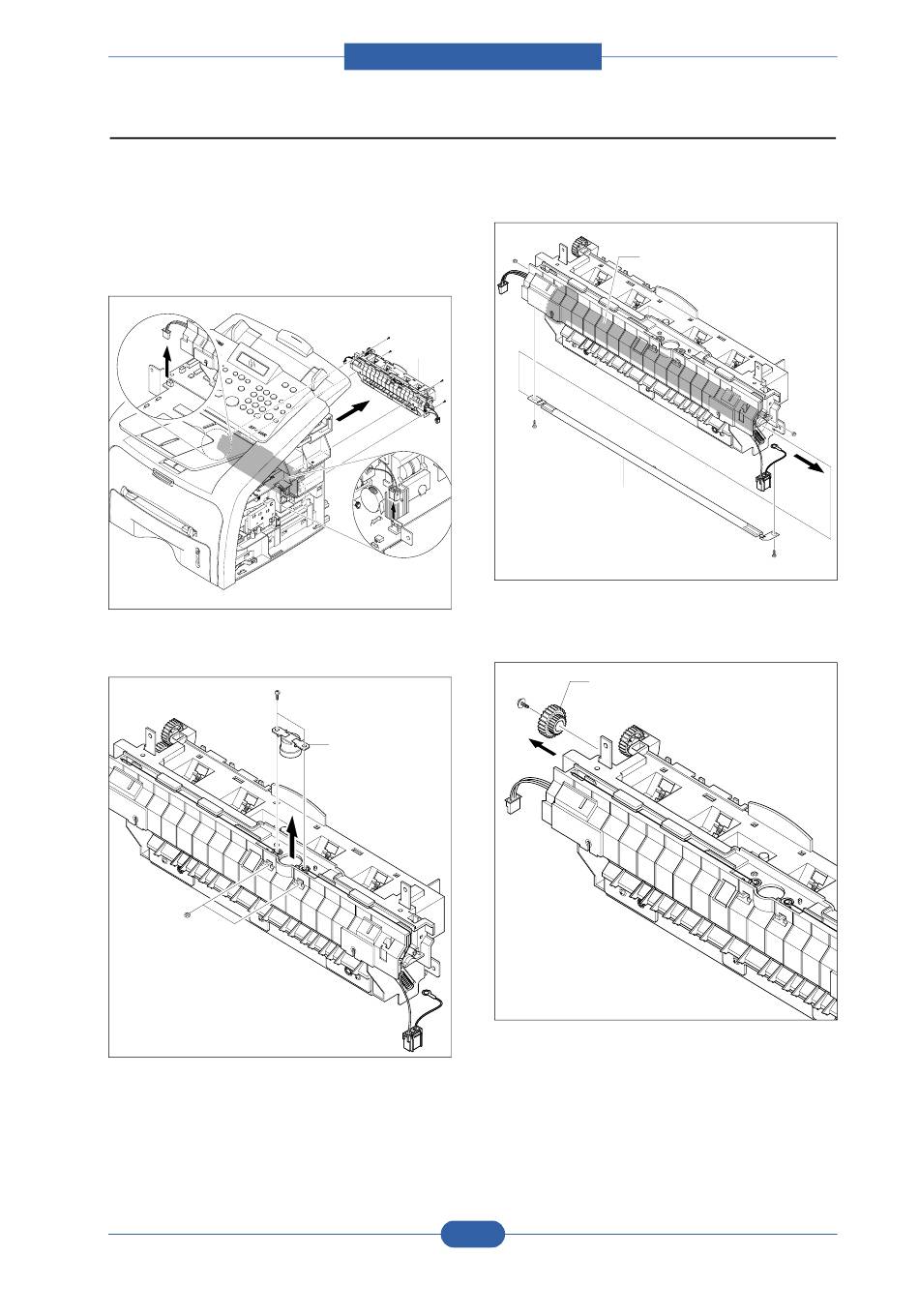

3.22 Fuser Ass'y

1. Before you remove the Fuser Ass'y, you should
remove:
- Engine Shield Ass,y (see section 3.19)
2. Unplug the two connectors from the Main PBA and
SMPS, as shown below. Then remove the four
screws securing the Fuser Ass'y and remove it.
3. Remove the two screws securing the Thermostat.
Then lift the Thermostat out.
Service Manual
All manuals and user guides at all-guides.com
Disassembly and Reassembly
Fuser Ass'y
Thermostat
3-18
4. Remove the two screws securing the Halogen Lamp.
Then take out the Halogen Lamp from the Heat
Roller, as shown below.
Heat Roller
Halogen Lamp
5. Remove one screw securing the Idle Gear and
remove it.
Idle Gear
