3.7 ADF Rubber Pad

1. Before you remove the ADF Rubber Pad, you should
remove:
- Rear Cover (see section 3.3)
- OPE Unit (see section 3.6)

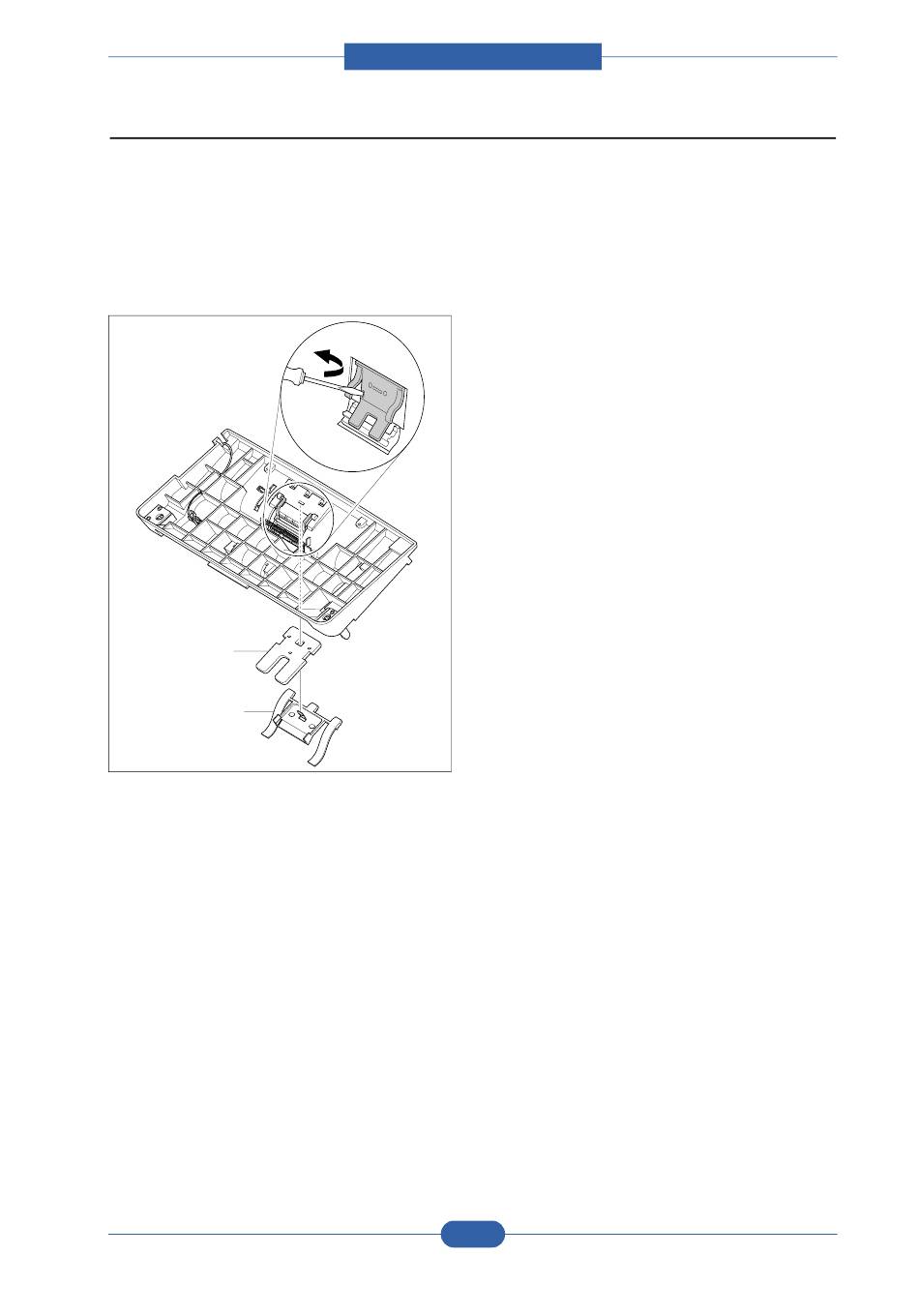

2. Insert a flat-blade screwdriver into the slot as shown
below, and release the latches.
Take out the Rubber Holder and the Rubber Pad.
Rubber Pad
Rubber Holder
Note:
• When you reassemble the Rubber Pad, be sure that
the Rubber Pad and Holder fit into the Guide Boss
and the Holder latches fit into the corresponding holes.
Then push firmly until it clicks.
• Clean the surface of the Rubber Pad with ethyl alcohol.
After wiping it, be sure to dry it. Check the rubber for
wear. If the wear reaches 1/2 it's original thickness,
replace it with a new one.
