4.2 Troubleshooting
4.2.1 Procedure of Checkig the Symptoms
Before attempting to repair the printer first obtain a detailed description of the problem from the customer.

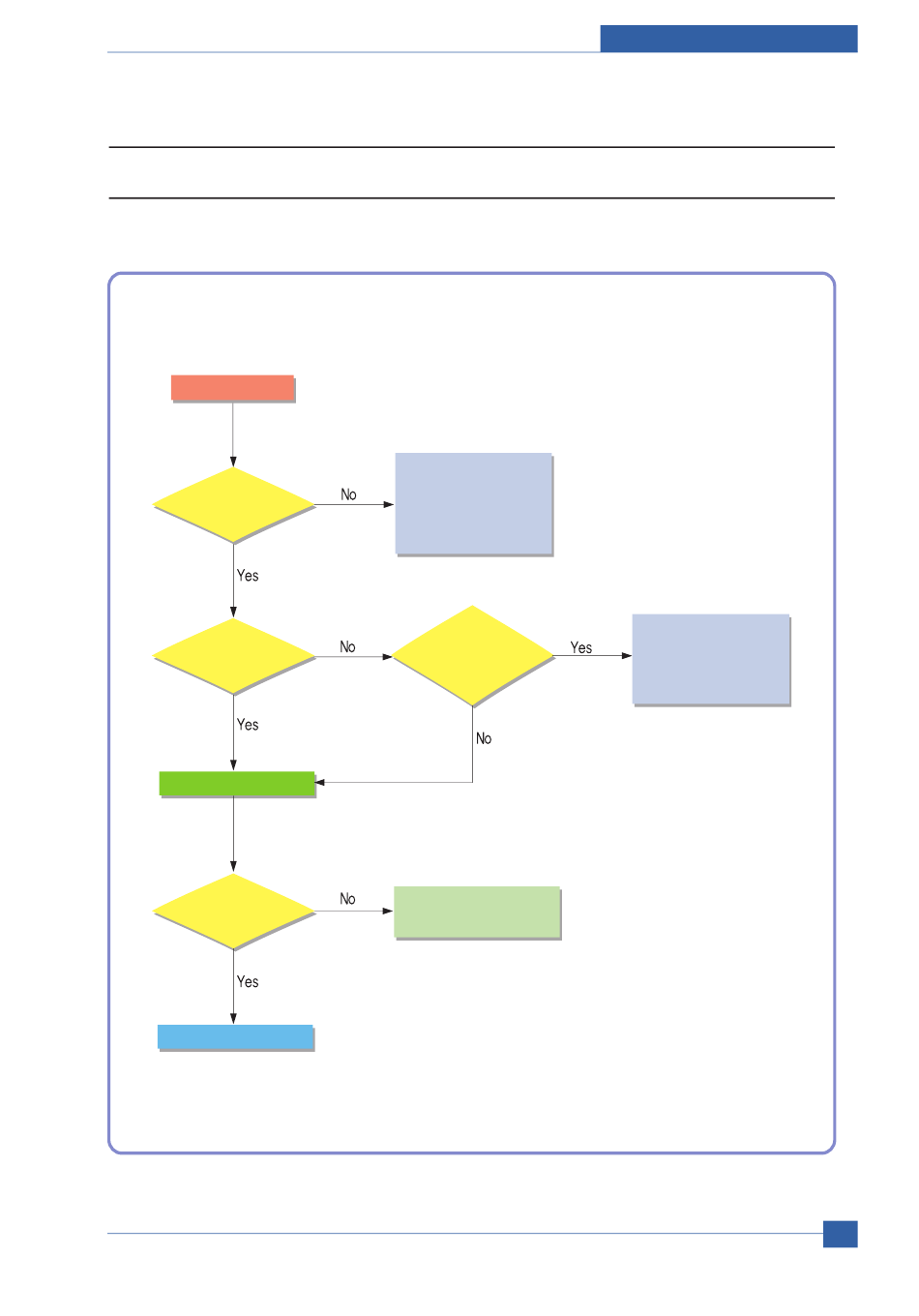

Power On
OP Panel
ON?
Ready or
Power save
Test Print
printing
Quality is
Nomal?
END
All manuals and user guides at all-guides.com
- No Power
- Power Module error
- Main PBA error
- LCD Panel error
Indicate
Error Massage
Refer to "Solution
of Image Problem"
Adjustment and Troubleshooting
Refer to
Error Massage
<Chapter 4.1.9>
