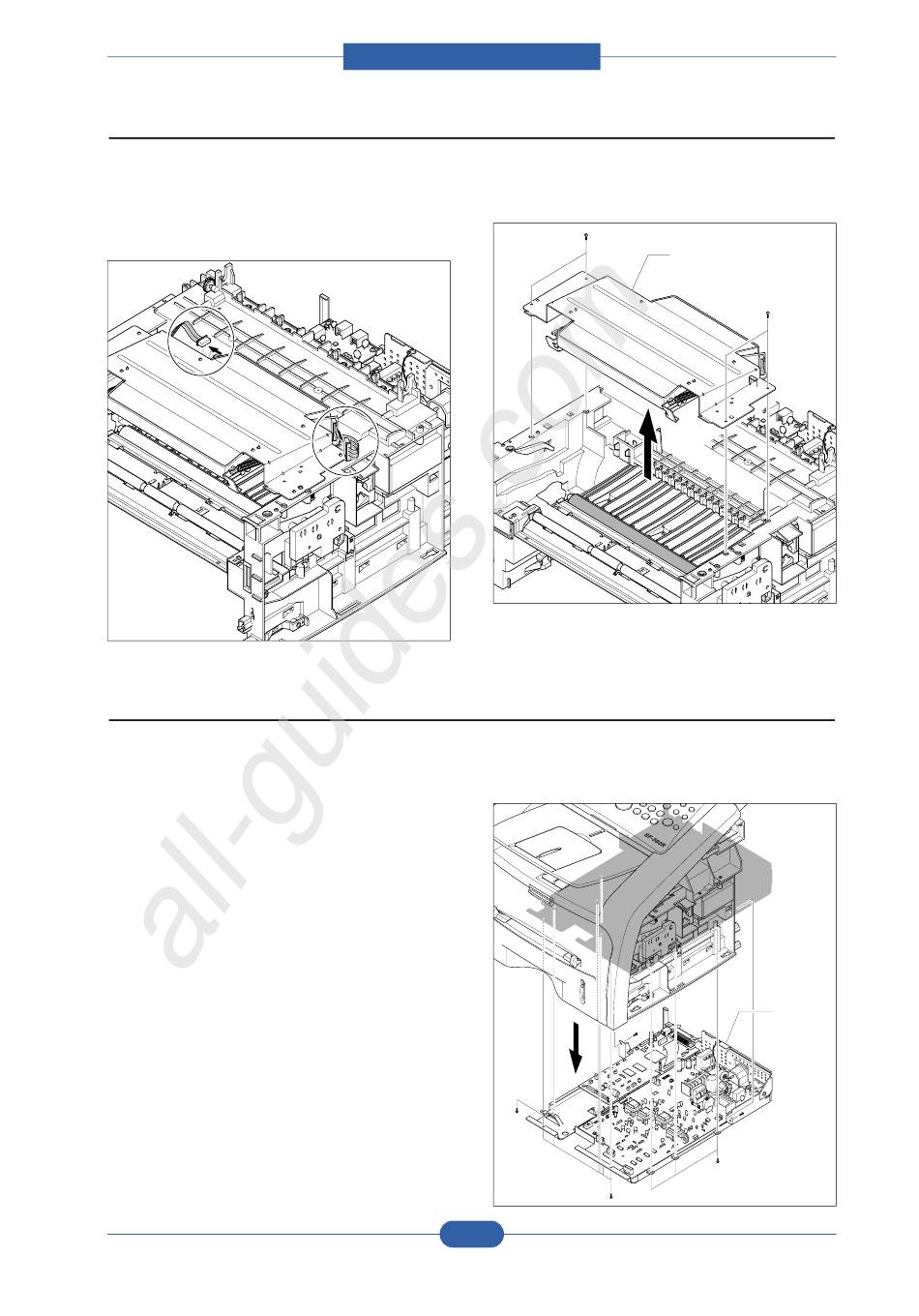

3.18 LSU-Unit

1. Before you remove the LSU, you should remove:
- Scan Ass'y (see section 3.11)
2. Unplug the two connectors from the LSU, as shown
below.

3.19 Engine Shield Ass'y

1. Before you remove the Engine Shield Ass'y, you
should remove:
- Rear Cover (see section 3.3)
- Side Cover L (see section 3.4)
- Side Cover R (see section 3.5)
Service Manual
All manuals and user guides at all-guides.com
Disassembly and Reassembly
3-15
3. Remove the four screws securing the LSU and
remove it.
2. Remove the twelve screws securing the Engine Shield
Ass'y and remove it. Then unplug the all connectors
from the SMPS and Main PBA, Main High PBA.
LSU
Engine Shield
Ass'y
