<2> Parameters related to the RMU has been changed
When parameters listed below are set, these parameters are also set to the RMU.
No.
1 <Constants> - [2 machine constants ] - [1 Tool constants ]
2 <Constants> - [2 machine constants ] - [3 Axis constants ]
3 <Constants> - [2 machine constants ] - [4 Encoder correction ]
4 <Constants> - [2 machine constants ] - [5 Soft limit ]
5 <Constants> - [2 machine constants ] - [11 Motor and encoder ]
6 <Constants> - [2 machine constants ] - [15 Manipulator ]
7 <Constants> - [2 machine constants ] - [33 Virtual Safety Fence Function ] all setting under were
8 <Constants> - [2 machine constants ] - [34 Robot monitoring unit ] all setting except [1 setting]

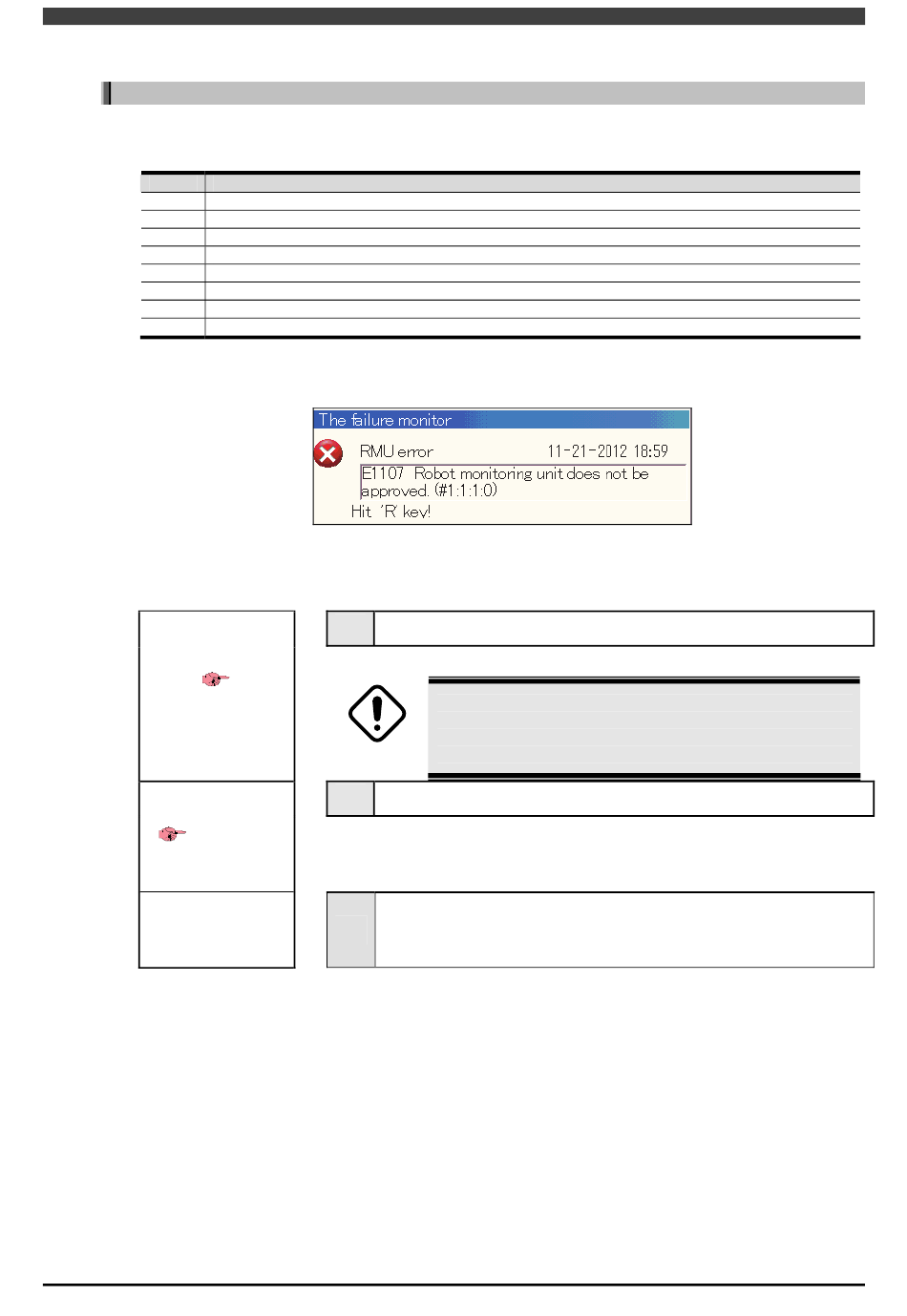

The following message is displayed when the above-mentioned settings related to RMU has been changed.
But, this is normal.
If these settings have been modified, perform an approval procedure for the RMU according to the following
steps.
4.3Confirmation of
parameters
4.4Approval
Power OFF and ON
(*) At first visually check that these parameters are the same between the RMU and the controller by referring
to "4.3Confirmation of parameters". Next perform "Approval" procedure (This means that the setting is correct).
If this approval procedure is not finished, robot can not be operated.
Table 4-1 Settings related to the RMU
Settings related to the RMU
1 Confirmation of parameters
Confirm the parameters which have been set.
Please make sure the parameter values are changed correctly
in the confirmation screen of the parameter. If the parameter is
not set correctly, the robot does not work in the intended
DANGER
function will be death or serious injury accidents.
2 Approval (*)
Confirm that the monitoring unit parameters and robot controller parameters
are the same. Robot can not be operated without aprroval.
3 Turn OFF and ON the power of the robot controller.
4.1Configuration flow of setting procedure
