SYSTEMS FEATURES AND BASIC OPERATION
PURPOSE
The Level Best Grader Blade (GB-108) is a cost-
efficient method for fine grading. This manual is
for compact track loaders with Level Best Grader
Blade systems.
Power and Controlling the Grader Blade 108
Digital, 12 Pin
Skid Steer Loader
14 Pin Connector

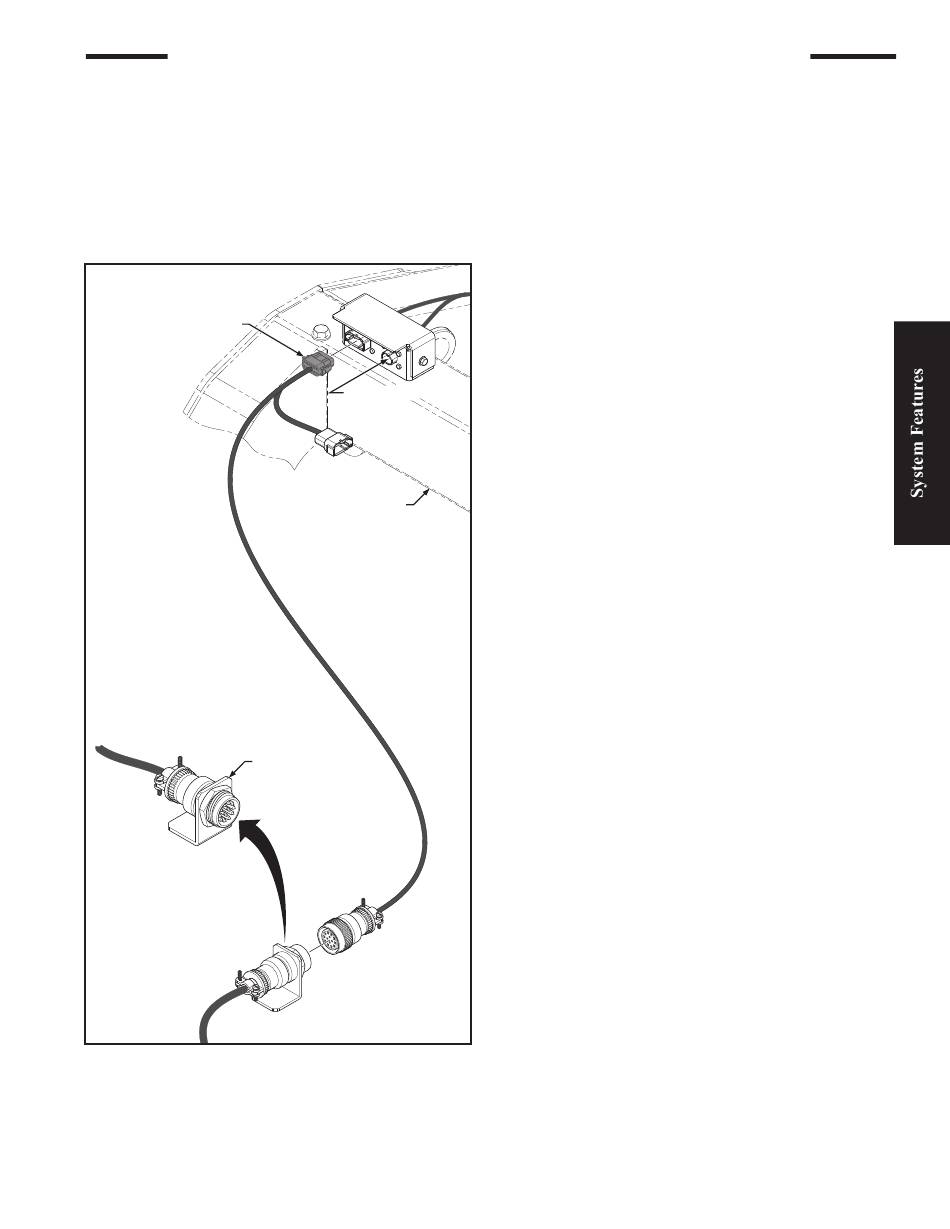

Figure 1-1. Harness Connections
Every attachment needs a Level Best sourced har-
ness to attach a skid-loader's 14-pin to the Grader's
12 pin in
Figure
1-1.
CAN, 4 Pin
Main Frame
1.1
This connection provides 12-volt power and full
or partial manual control depending on skid-loader
manufacturer.
NOTE: Each 14-pin harness is brand and model-
specific.
The Level Best Grader harness is interchangeable
with the PD series harness except for John Deere
applications. (See Figures 1-7 through 1-15
1.6.)
