Figure 1-15. John Deere G-Series Joystick Functions; Figure 1-16. Takeuchi Joystick Functions - ATI Corporation Level Best Grader Blade Operator's & Parts Manual

SYSTEMS FEATURES AND BASIC OPERATION
Left

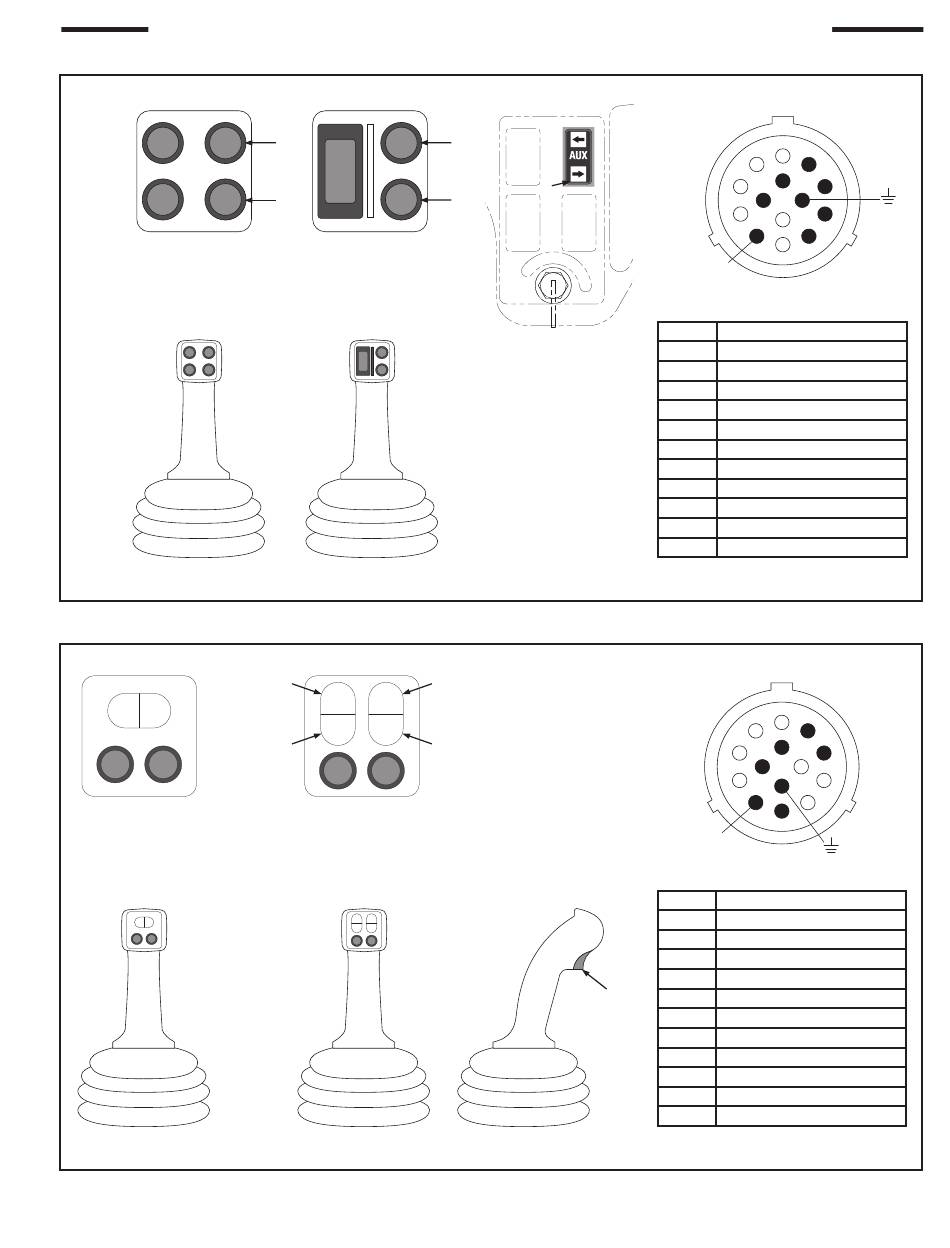

Figure 1-15. John Deere G-Series Joystick Functions

Left

Figure 1-16. Takeuchi Joystick Functions

E G
D C
Right
C
E
F
D
Right
Instrument Panel
F
J
1.9
Skid Steer Connection
P
N
E
D
F
M
A
C
G
L
B
K
H
J
ACC
Harness Part Number 000-200-516
Pin Level Best Function
E Left Raise
D Left Lower
G Right Raise
C Right Lower
F Combo
F & C Rotate Right
F & D Rotate Left
F & G Side Shift Right
F & E Side Shift Left
K Key Power
A Ground
NOTE: Confirm power @ Pin K
Skid Steer Connection
P
N
E
D
F
M
A
C
G
L
B
K
H
J
ACC
Harness Part Number 000-200-397
Pin Level Best Function
C Left Raise
D Left Lower
E Right Raise
F Right Lower
J Combo
J & F Rotate Right
J & D Rotate Left
J & E Side Shift Right
J & C Side Shift Left
K Key Power
B Ground
