SYSTEMS FEATURES AND BASIC OPERATION
Left

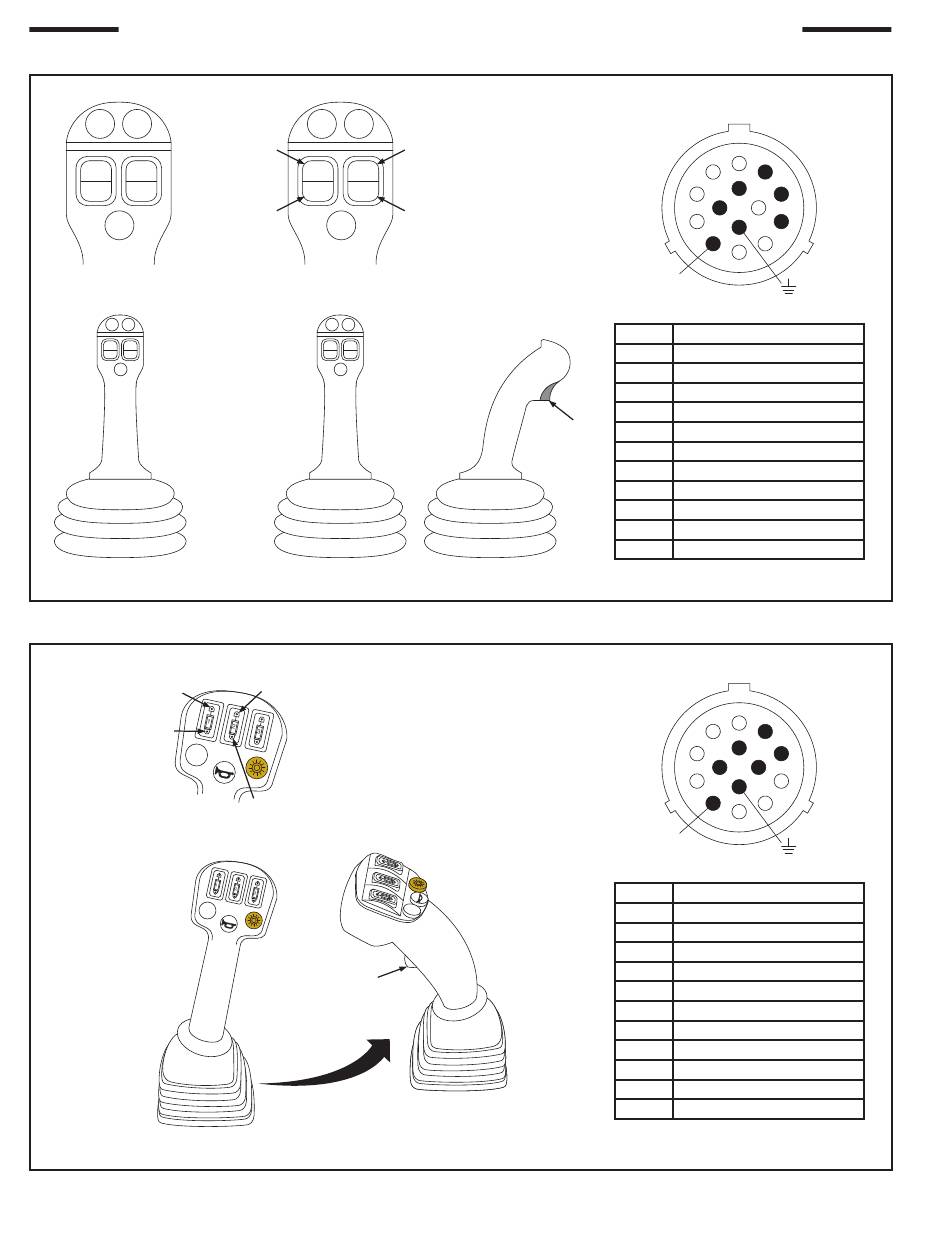

Figure 1-17. JCB/Volvo Joystick Functions
C
D
Left
Figure 1-18. Mustang/Gehl Joystick Functions
C
E
D
F
Right
E
F
A
Harness Part Number 000-200-447
G
G & F
G & D
G & E
G & C
Harness Part Number 000-200-515
A & D
A & C
NOTE: Electric Attachment Control
1.10
Skid Steer Connection
P
N
E
D
F
M
A
C
G
L
B
K
H
J
ACC
Pin
Level Best Function
C
Left Raise
D
Left Lower
E
Right Raise
F
Right Lower
G
Combo
Rotate Right
Rotate Left
Side Shift Right
Side Shift Left
K
Key Power
B
Ground
Skid Steer Connection
P
N
E
D
F
M
A
C
G
L
B
K
H
J
ACC
Pin
Level Best Function
C
Left Raise
D
Left Lower
E
Right Raise
F
Right Lower
A
Combo
A & F
Rotate Right
Rotate Left
A & E
Side Shift Right
Side Shift Left
K
Key Power
B
Ground
Kit (P/N 50840097)
