SYSTEMS FEATURES AND BASIC OPERATION

LEVEL BEST JOYSTICK (OPTIONAL)

SideShift
Left
Top View
Auto/Manual
Left
Raise/Lower

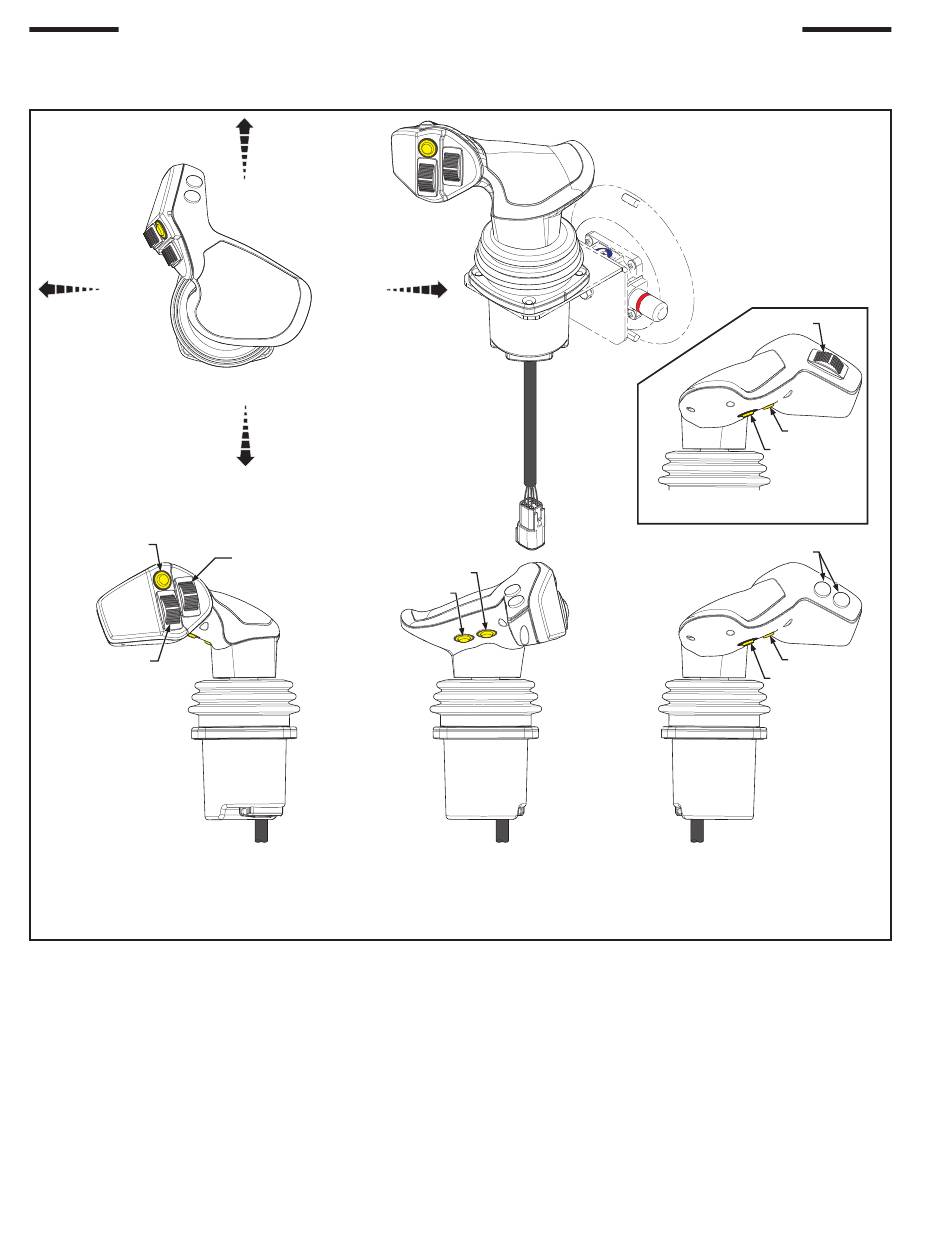

Figure 1-7. Joystick Assembly

This cab mounted control needs a Level Best PN
000-200-513 harness to power and communicate
with the grader's ECM through the 4 pin Deutsch
connector shown in Figure
The device gives maximum manual control with
individual and dual raise/lower control as well as
side shift and rotation controls.
Dual
Lower
SideShift
Right
Dual
Raise
Right
Raise/Lower
Decrement
1-1.
Increment
NOTE: Prior versions of the GB Joystick contain a roller to actuate
the rotation feature of the Grader Blade. This version and
firmware has been discontinued; if any parts or replace-
ments are needed, please contact ATI Corporation.
The device has machine guidance interface with
an auto/manual button and increment/decrements
buttons.
This joystick will be useful for skid loaders that
provide few or no in cab buttons limiting manual
control.
1.4
Rotation
Increment
Decrement
Prior Version [NLA]
Rotation
Increment
Decrement
