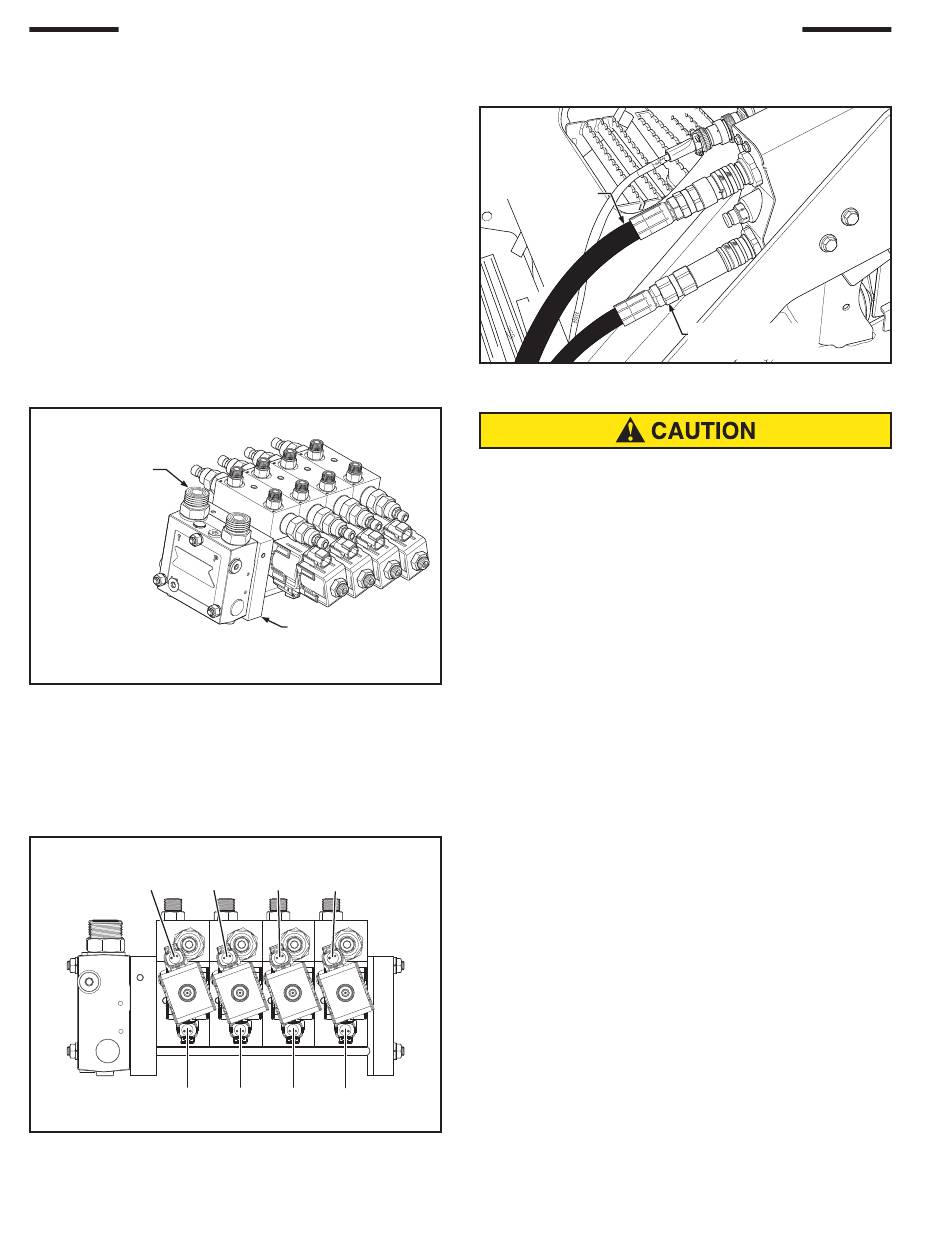

Hydraulics; Figure 1-2. Hydraulic Valve (Danfoss Mvb10); Figure 1-3. Side View Valve Cable Connection; Figure 1-4. Hydraulic Hose Connections To Skid Steer - ATI Corporation Level Best Grader Blade Operator's & Parts Manual

SYSTEMS FEATURES AND BASIC OPERATION

HYDRAULICS

Danfoss MVB10 Hydraulic Valve
The hydraulic valve is setup at the factory and
should not need any adjustments. If there are any
changes required, they should be done by an autho-
rized factory technician.
NOTE: The hydraulics system of any Level Best
product is highly complicated and sensi-
tive. DO NOT be tempted to make ad-
justments yourself. Any unauthorized
adjustments or tampering WILL void the
warranty.
Check Valve
DO NOT REMOVE

Figure 1-2. Hydraulic Valve (Danfoss MVB10).

NOTE: DO NOT REMOVE THE CHECK VALVE.
REMOVAL OR TAMPERING WILL VOID
THE WARRANTY ON ALL HYDRAULIC
COMPONENTS.
Left Right
Raise Lower
Left
Lower

Figure 1-3. Side View Valve Cable Connection

Hydraulic
Valve
Rotate SS
Right Left
Right Rotate SS
Raise Left Right
Hydraulic Hose Connections
Pressure Hose

Figure 1-4. Hydraulic Hose Connections to Skid Steer

The return line must be connected before the
pressure line. Pressurizing the valve without an
outlet will damage the valve and void the valve
warranty.
NOTE: Check the manufacture of your loader for
the correct hose connections.
1.2
Return/Tank Hose
CONNECT FIRST
