ATI Corporation Level Best Grader Blade Operator's & Parts Manual

Attachment
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

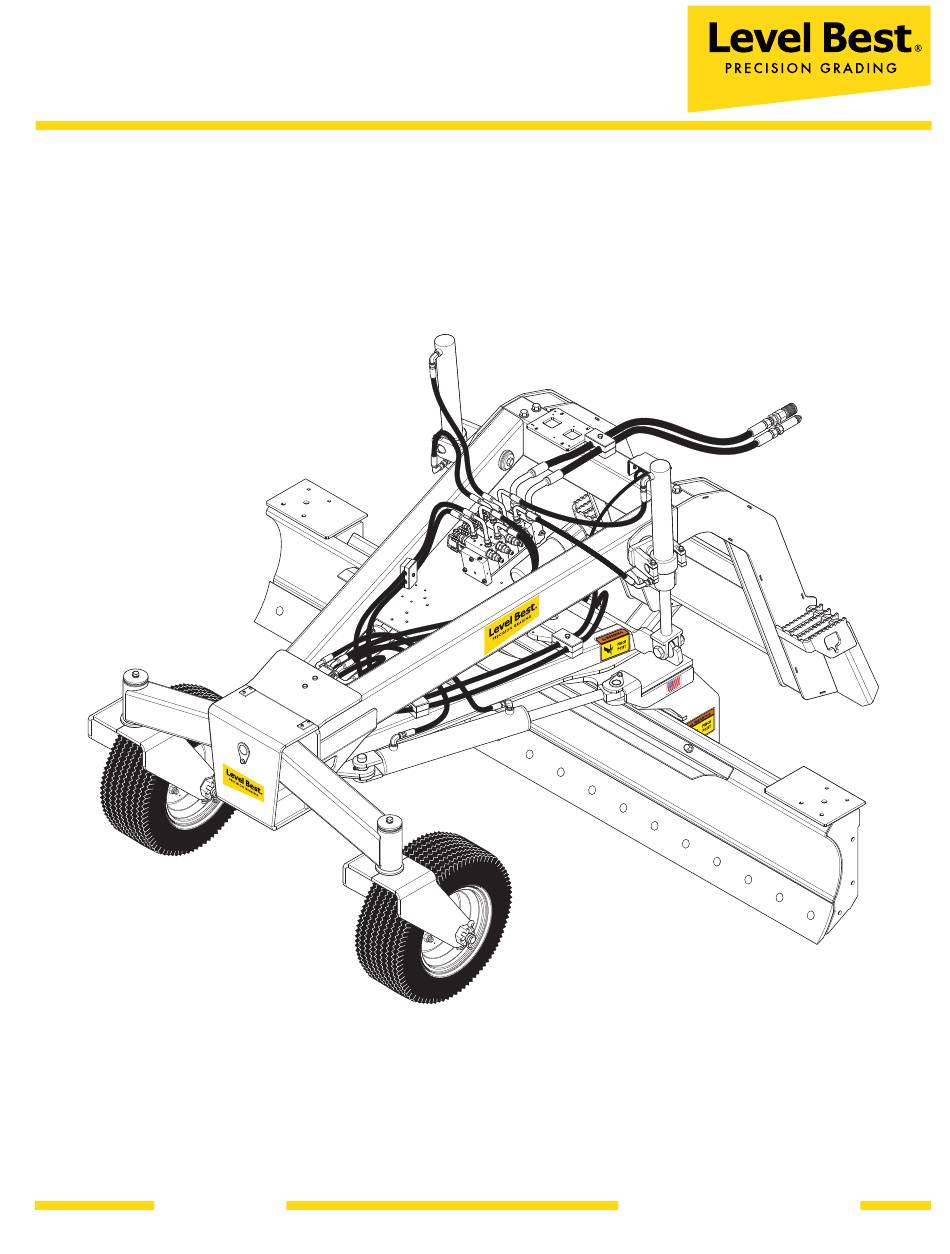

OPERATORS & PARTS MANUAL
GRADER BLADE ATTACHMENT
ASN 4109
2
2
2
2
ATI Corporation
New Holland, PA 17557
1-800-342-0905
www.levelbestgrading.com
1
2
4
3
NOVEMBER 2021
CAT.# GB-108_OM&PM 11/01/21
