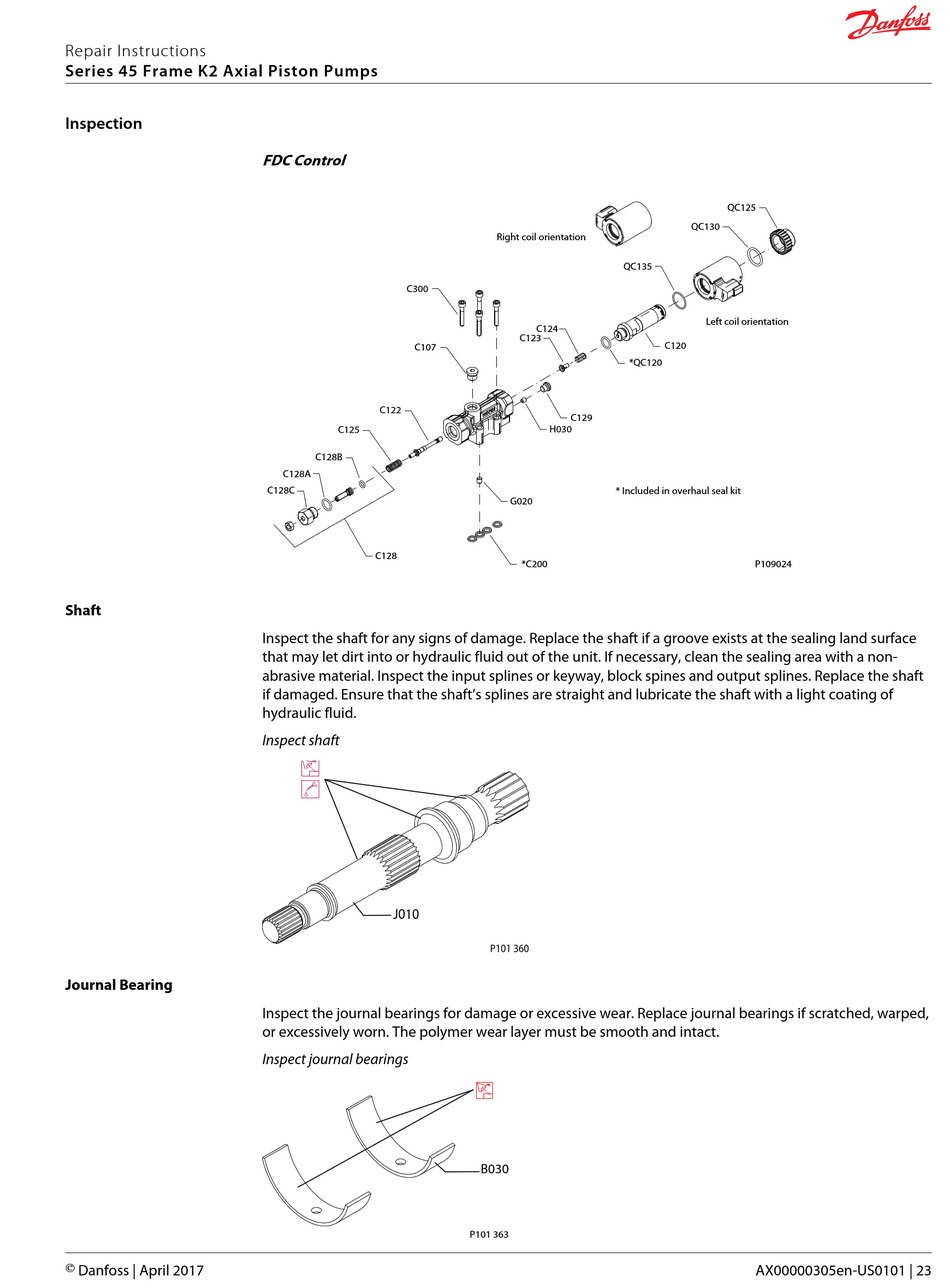

Repair Instructions
Series 45 Frame K2 Axial Piston Pumps
Inspection

Shaft

Journal Bearing

© Danfoss | April 2017
FDC Control
C300
C107
C122
C125
C128B
C128A
C128C
C128
Inspect the shaft for any signs of damage. Replace the shaft if a groove exists at the sealing land surface
that may let dirt into or hydraulic fluid out of the unit. If necessary, clean the sealing area with a non-
abrasive material. Inspect the input splines or keyway, block spines and output splines. Replace the shaft
if damaged. Ensure that the shaft's splines are straight and lubricate the shaft with a light coating of
hydraulic fluid.
Inspect shaft
i
l
J010
Inspect the journal bearings for damage or excessive wear. Replace journal bearings if scratched, warped,
or excessively worn. The polymer wear layer must be smooth and intact.
Inspect journal bearings
Right coil orientation
QC135
C124
C123
*QC120
C129
H030
* Included in overhaul seal kit
G020
*C200
P101 360
B030
P101 363
QC125
QC130
Left coil orientation
C120
P109024
AX00000305en-US0101 | 23
