Servo Piston; Endcap; Swashplate - Danfoss 45 K2 Series Repair Instructions

Repair Instructions
Series 45 Frame K2 Axial Piston Pumps

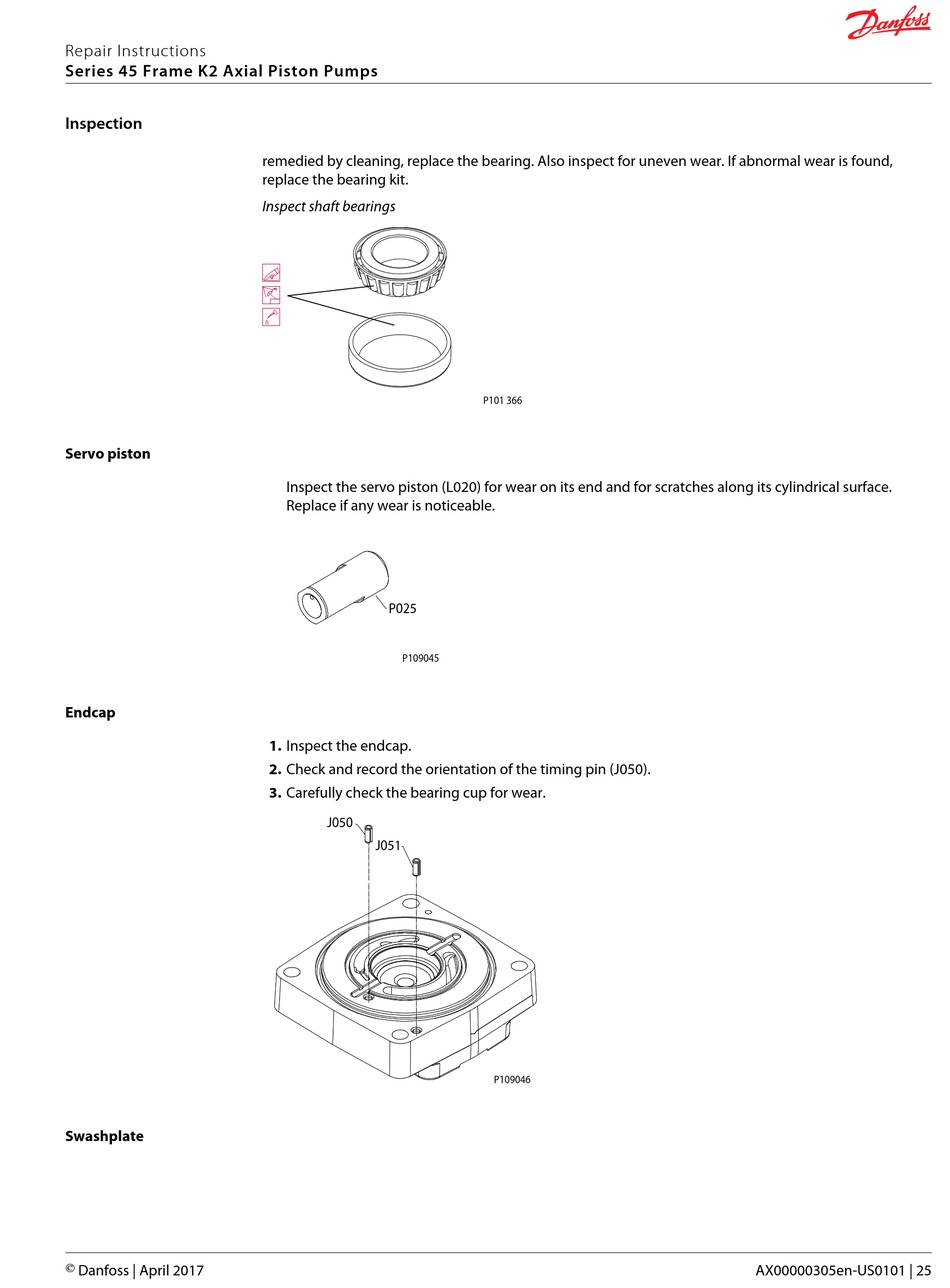

Inspection

Servo piston

Endcap

Swashplate

© Danfoss | April 2017
remedied by cleaning, replace the bearing. Also inspect for uneven wear. If abnormal wear is found,
replace the bearing kit.
Inspect shaft bearings
e
i
l
Inspect the servo piston (L020) for wear on its end and for scratches along its cylindrical surface.
Replace if any wear is noticeable.
P025
P109045
1. Inspect the endcap.
2. Check and record the orientation of the timing pin (J050).
3. Carefully check the bearing cup for wear.
J050
J051
P101 366
P109046
AX00000305en-US0101 | 25
