Repair Instructions
Series 45 Frame K2 Axial Piston Pumps

Disassembly

Auxiliary pad

© Danfoss | April 2017
If a second pump is used, you must remove it. You don't need to remove auxiliary pads to remove the
end cap.

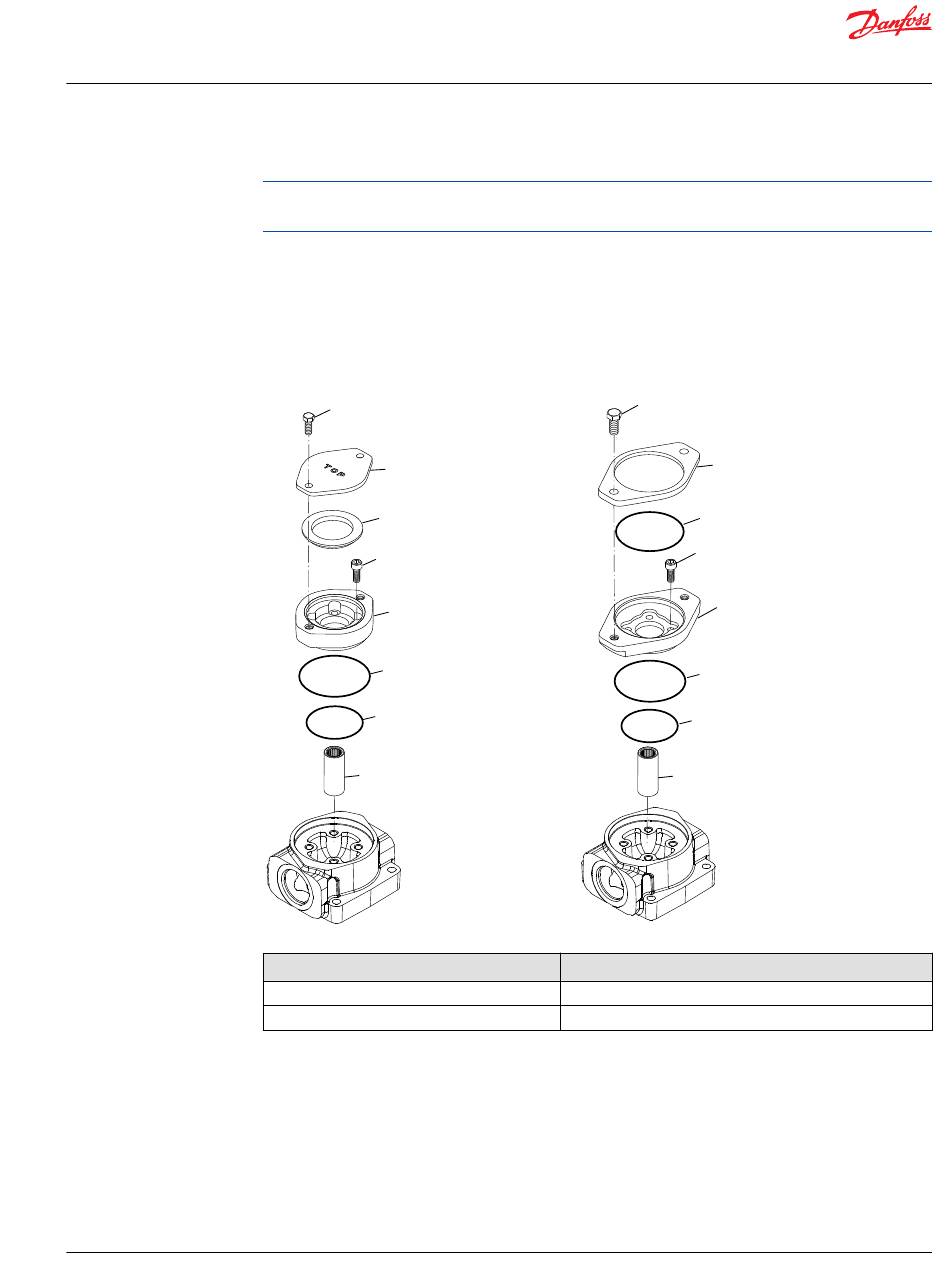

1. Remove the plate cover screws (J130) and remove the cover plate (J110).
2. Remove the coupling (J140) and the pad seal (J120). If you have an auxiliary B pad, discard the O-ring
(J120). The pad seal for an auxiliary A pad is reusable if undamaged.
3. Remove the auxiliary pad screws (J100) with an 8 mm internal hex wrench and remove the adapter
(J085).
4. Remove and discard the O-rings (J090, J095).
5. Remove the coupling (J140).
J130
J110
J120
J100
J085
J090
J095
J140
Item
J130
J110
J130
J110
J120
J100
J085
J090
J095
J140
P109053
Wrench size
9/16 inch
8 mm internal hex
