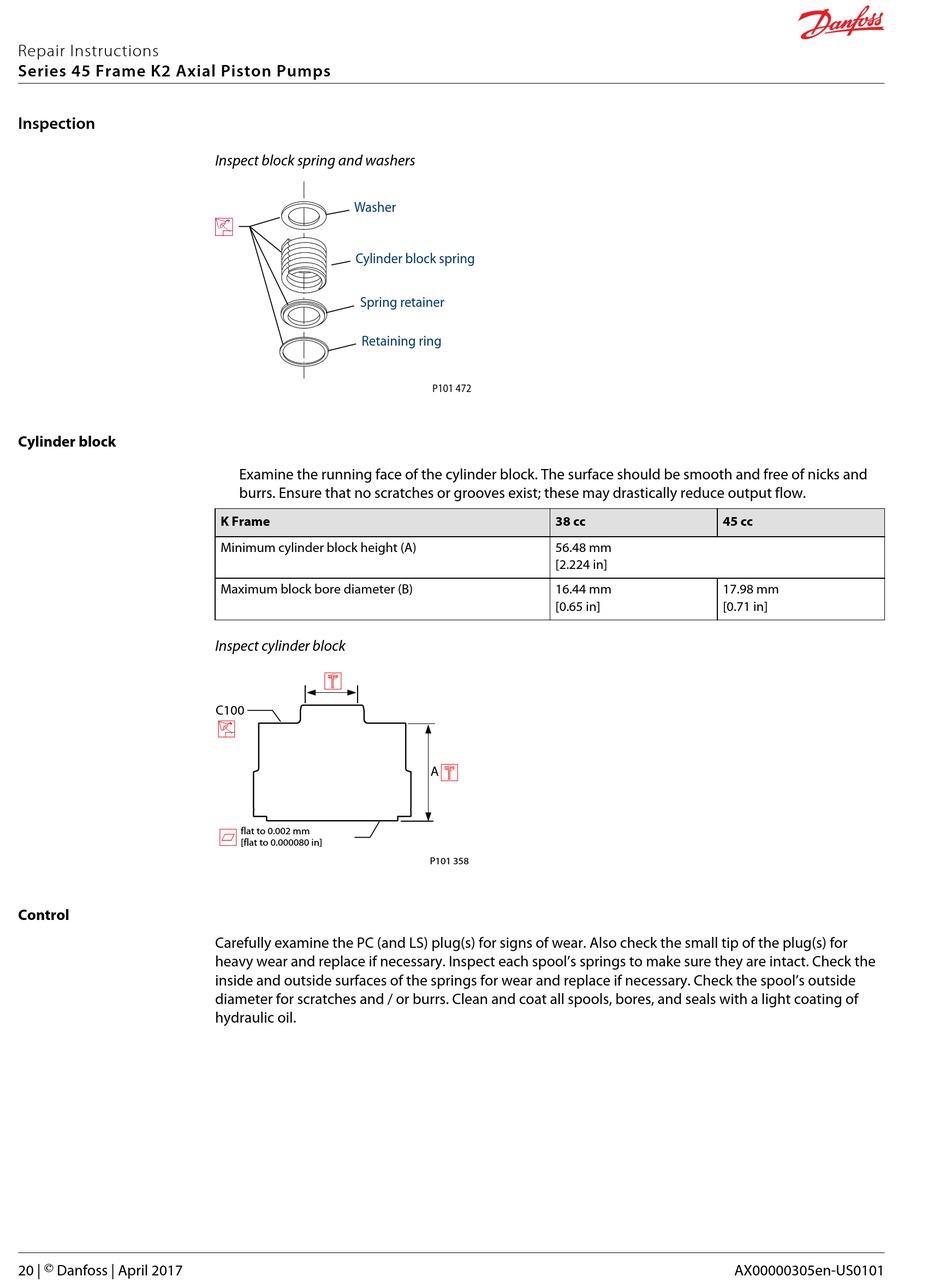

Repair Instructions
Series 45 Frame K2 Axial Piston Pumps
Inspection

Cylinder block

Control

20 | © Danfoss | April 2017
Inspect block spring and washers
Washer
i
Cylinder block spring
Spring retainer
Retaining ring
Examine the running face of the cylinder block. The surface should be smooth and free of nicks and
burrs. Ensure that no scratches or grooves exist; these may drastically reduce output flow.
K Frame
Minimum cylinder block height (A)
Maximum block bore diameter (B)
Inspect cylinder block
C100
flat to 0.002 mm
[flat to 0.000080 in]
Carefully examine the PC (and LS) plug(s) for signs of wear. Also check the small tip of the plug(s) for
heavy wear and replace if necessary. Inspect each spool's springs to make sure they are intact. Check the
inside and outside surfaces of the springs for wear and replace if necessary. Check the spool's outside
diameter for scratches and / or burrs. Clean and coat all spools, bores, and seals with a light coating of
hydraulic oil.
P101 472
38 cc
56.48 mm
[2.224 in]
16.44 mm
[0.65 in]
A
P101 358
45 cc
17.98 mm
[0.71 in]
