Servo Piston; Disassembly; Endcap And Valve Plate - Danfoss 45 K2 Series Repair Instructions

Repair Instructions
Series 45 Frame K2 Axial Piston Pumps

Disassembly

Servo piston

Endcap and valve plate

© Danfoss | April 2017
Item
L010
L030
L040
Disassembly

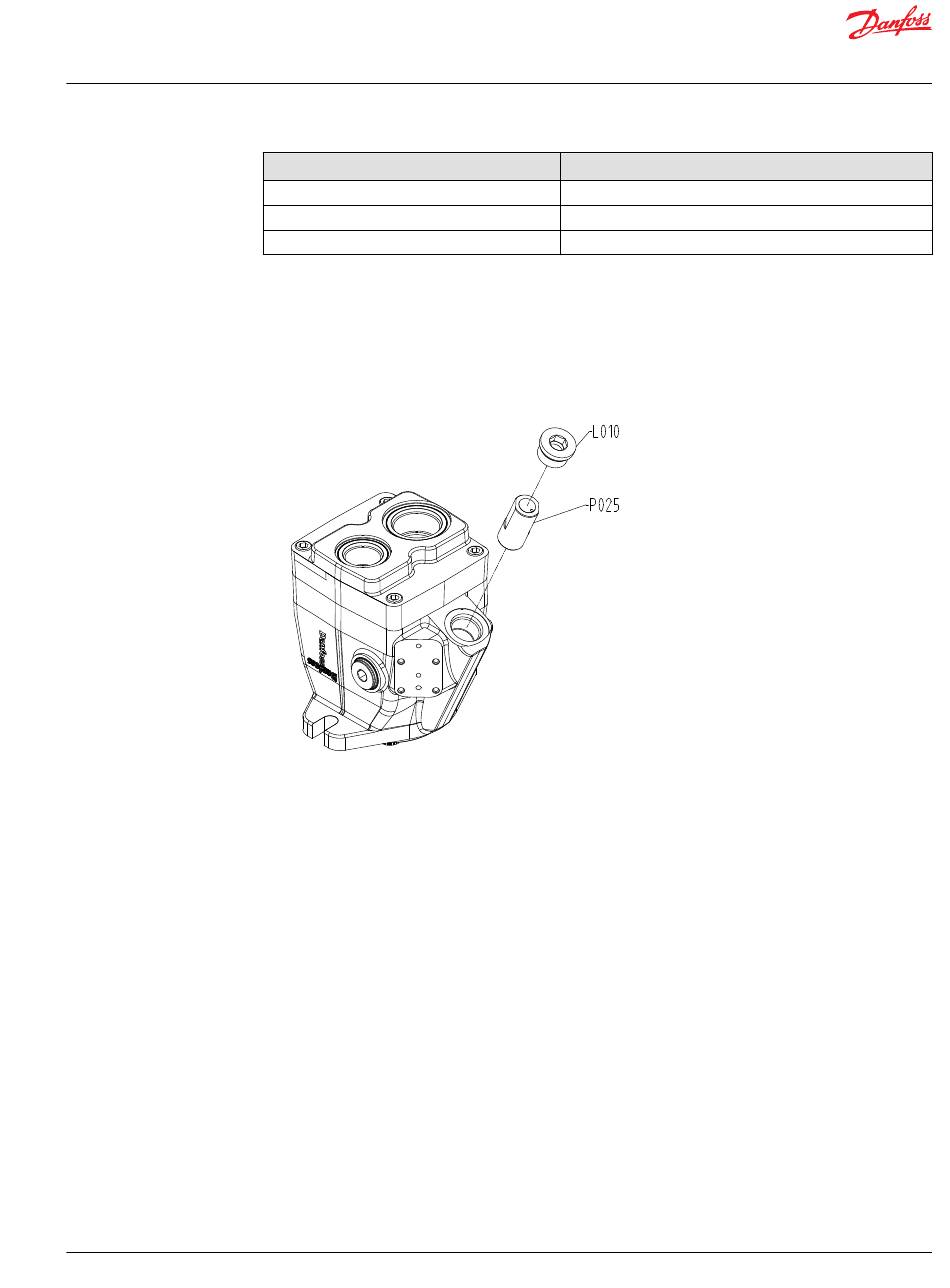

1. Remove plug (L010) with a 1 1/4 in. wrench. Discard the O-ring (L010A).
2. Remove servo piston (P025) from housing.
1. Remove the 4 endcap screws (J030) using an 8 mm internal hex wrench.
Wrench size
1 1/4 inch
19 mm
8 mm internal hex
P109065
AX00000305en-US0101 | 9
