Install Displacement Limiter; Displacement Limiter - Danfoss 45 K2 Series Repair Instructions

Repair Instructions
Series 45 Frame K2 Axial Piston Pumps
Reassembly

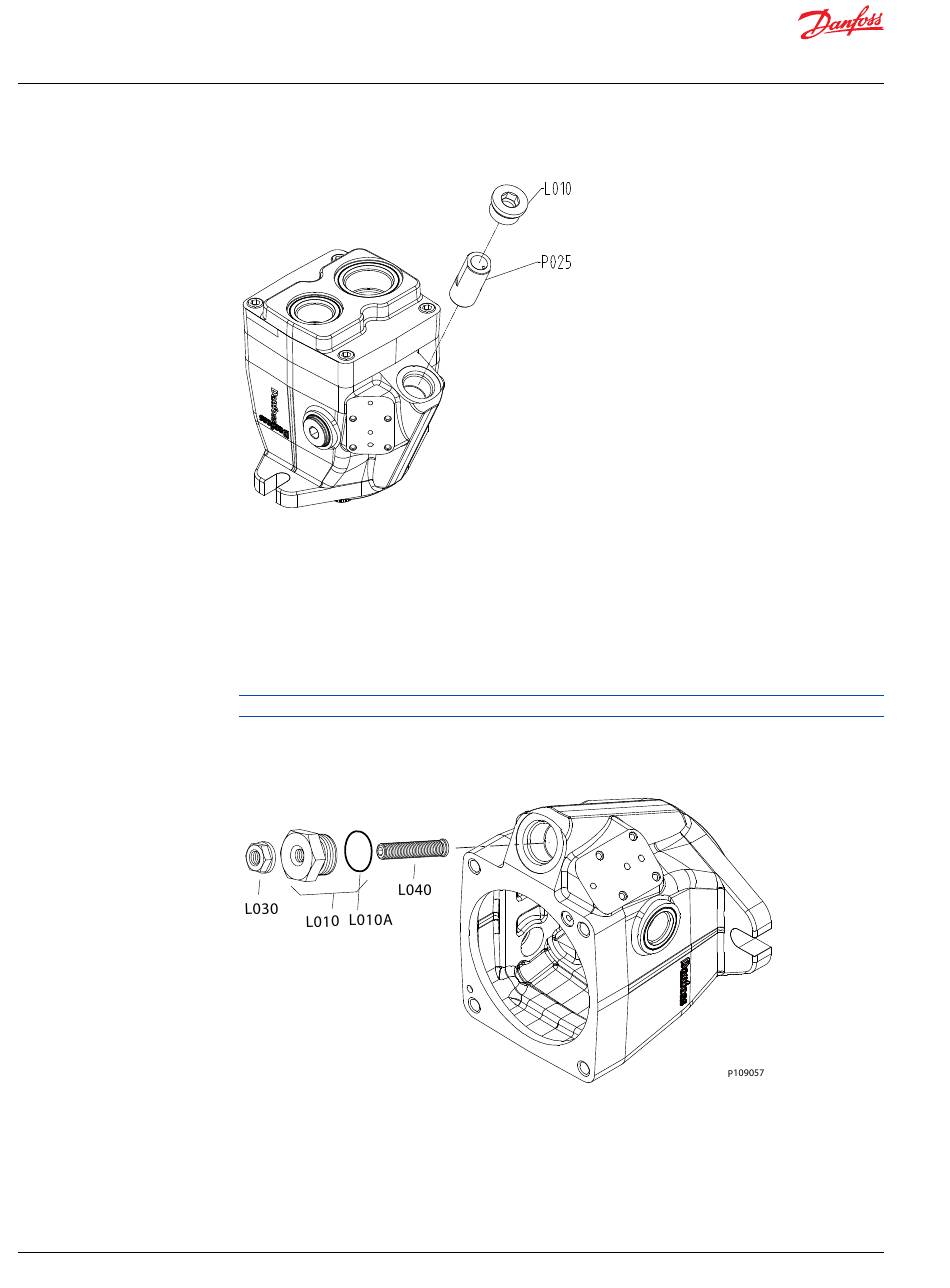

Install displacement limiter

36 | © Danfoss | April 2017
2. Install plug.
1. Install displacement limiter screw (L040) into plug (L010).
2. Install new O-ring (L010A) onto plug (L010). Thread plug with limiter into endcap. Torque to 77 N•m
[57 lbf•ft].
3. Turn adjustment / seal nut (L030A) onto displacement limiter.
4. Using a 19mm exter hex wrench torque the adjustment seal/nut (L030) to 54 N•m [40 lbf•ft].
Refer to Frame K2 Service Manual AX00000301 for instructions on adjusting displacement limiter.

Displacement Limiter

P109065
AX00000305en-US0101
