Series 45 Frame K2 Axial Piston Pumps
Reassembly

Shaft seal

30 | © Danfoss | April 2017
Install endcap
J030
J020
B046

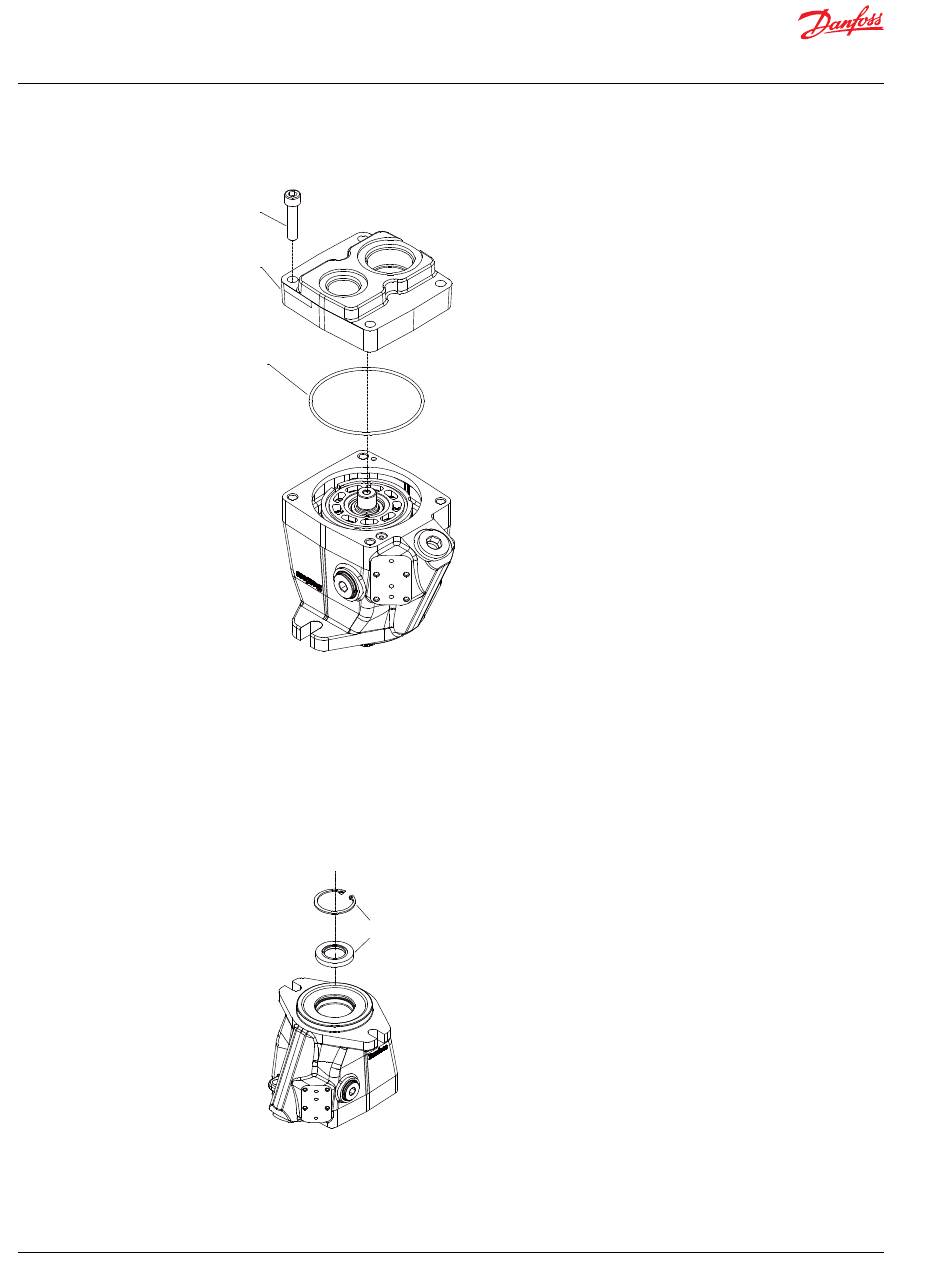

1. Cover shaft splines with an installation sleeve.
2. Install a new shaft seal (K020) with the cup side facing the pump.
3. Press the seal into the housing until it is deep enough to allow the retaining ring to be installed. Press
evenly to avoid binding and damaging the seal.
4. Install snap ring (K010).
K010
K020
P109040
P109058
