Cylinder Kit - Danfoss 45 K2 Series Repair Instructions

Repair Instructions
Series 45 Frame K2 Axial Piston Pumps
Disassembly

Cylinder kit

10 | © Danfoss | April 2017

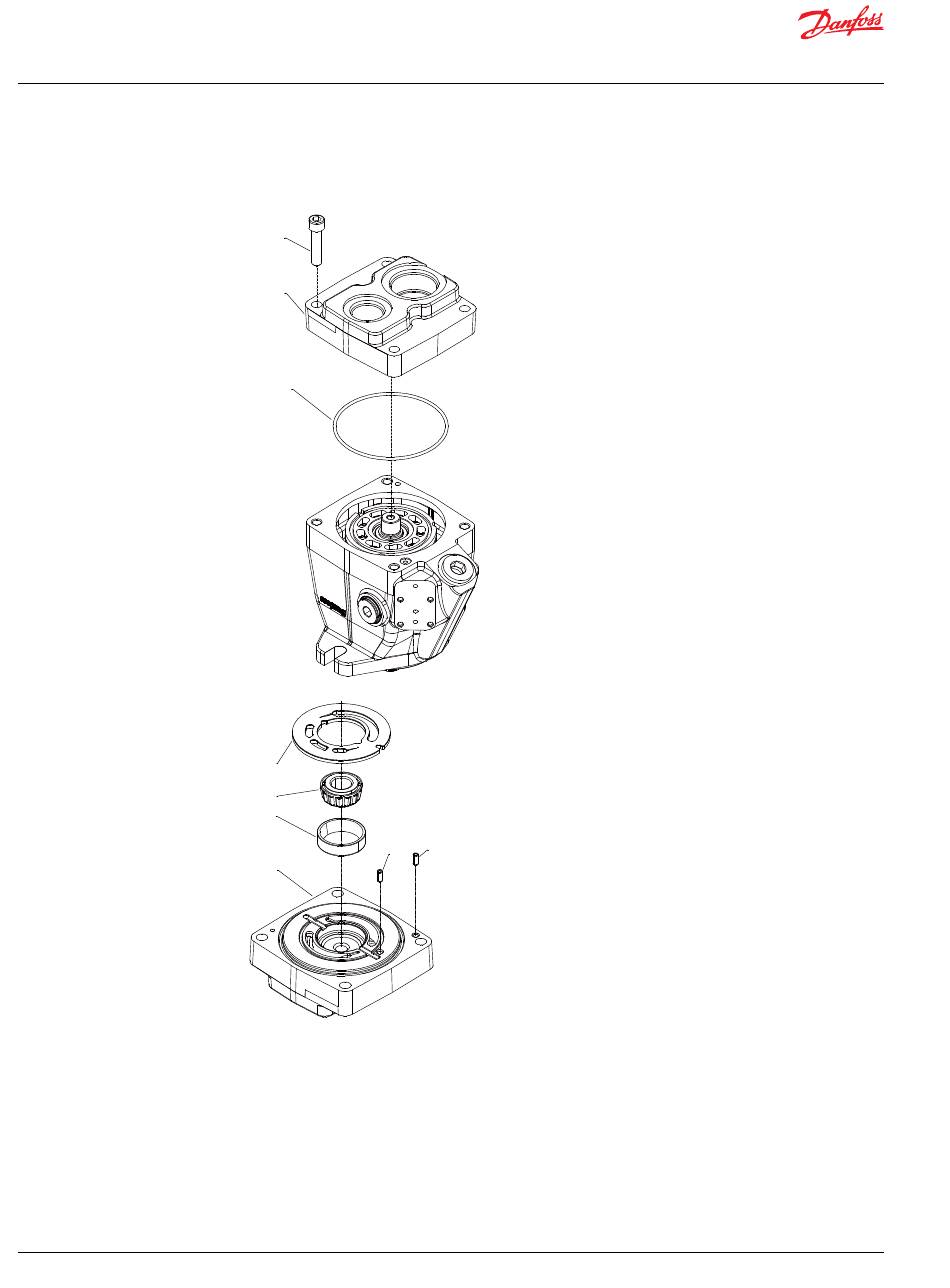

2. Remove the endcap. Remove the servo piston (L020) and guide (L080). Use care; valve plate (B070)
may adhere to inside surface. Discard O-rings (B045, B046). Refer to Inspection chapter for more
information.
J030
J020
B046
B070
B020
B010
J051
J020
3. Slide the rear tapered roller bearing cone (B020) from the bottom end of the shaft. The bearing cup
(B010) may remain within the endcap.
1. Position pump on its side.
P109040
J050
P109039
AX00000305en-US0101
