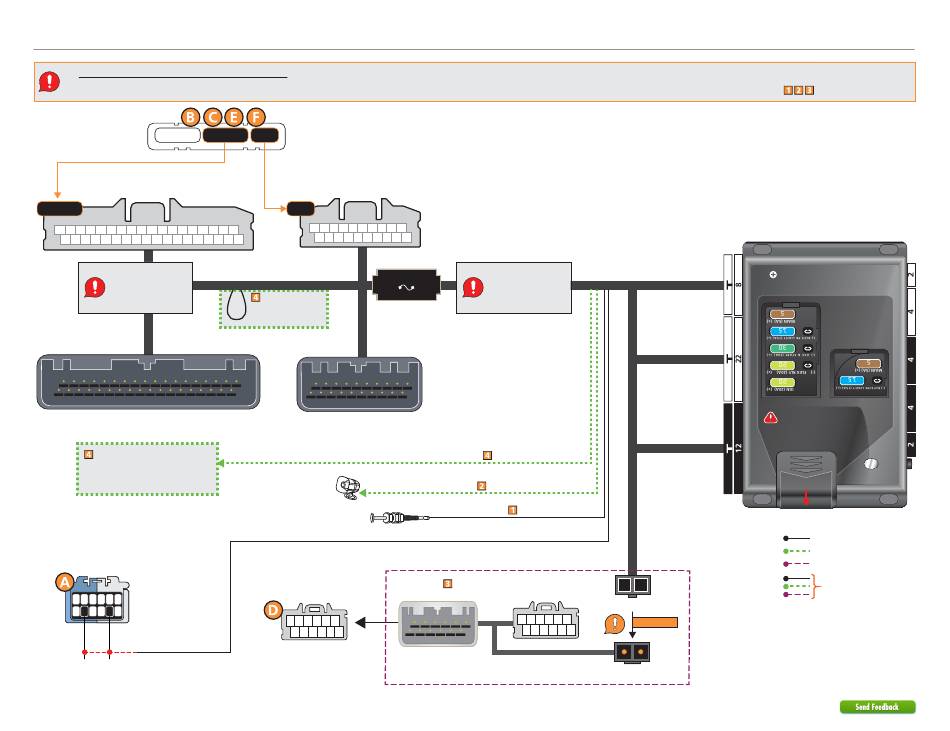

Wiring diagram with T-Harness (THHON9)
•Modifications to the THHON9 are required. Refer to the THHON9 T-Harness modifications section for proper use of the THHON9 T-Harness for steps and connection details.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
•Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Keyless Access Control Unit
(gray 36-pin connector)
2
Modifications are
required in this
section of the
THHON9 T-Harness.
Refer to the
Optional Starter Disable
Connection section for relay
and connection details.
Headlight Switch
(blue or white connector)
6 5 4 3 2 1
12 11 10 9 8 7
(-) Parking Lights:
pin 8 OR pin 11
6 933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
with Vehicle Takeover
Keyless Acces Control Unit
2 1
(Refer to the Vehicle connections
section for the location of this unit.)
Keyless Access Control Unit
(gray 20-pin connector)
1
Relay Pack
5A Fuse Inside
Violet/Black
Starter Disable loop.
Siren
Hood Pin
Steering Lock Module
(12-pin gray connector
under steering column)
Modifications are
required in this
section of the
THHON9 T-Harness.
(-) GWA Output: Red/White
(+) Siren Output: Brown/Red
(-) Hood Input: Gray
(-) Parking Lights Output: Lt. Blue/Black
Ignition Interrupt 5
(black, 2-pin connector)
(black, 2-pin connector)
).
A module can also be used for
this installation.
8-pin White Connector
22-pin White Connector
THHON9
IMPORTANT:
(optional t-harness)
Position the
fuses correctly!
12-pin Black Connector
Slide to open
Legend:
Connect
).
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
