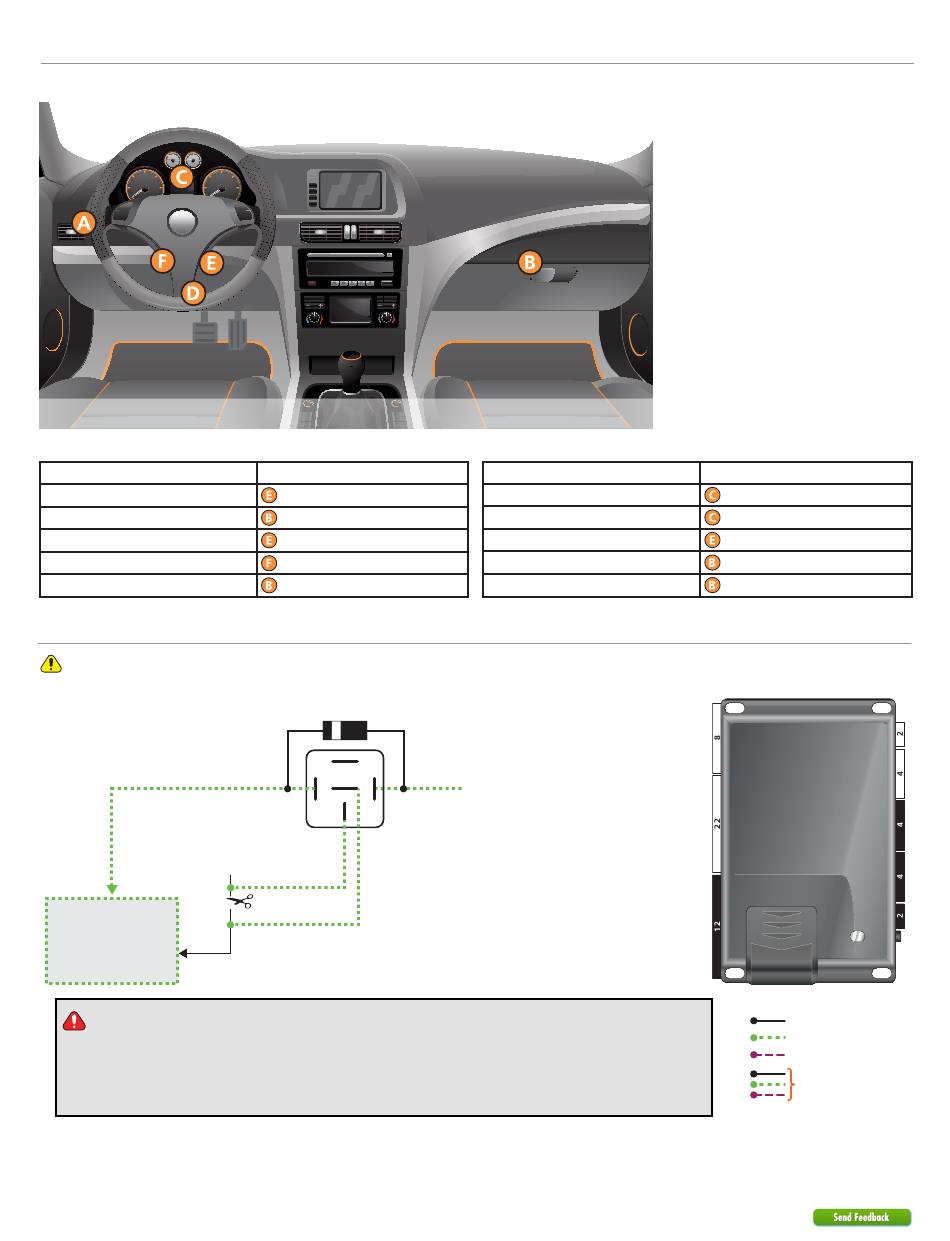

Locating components in the vehicle

Vehicle
Acura ILX (Smart Key) 2016-2020
Acura MDX (Smart Key) 2014-2020
Acura RDX (Smart Key) 2016-2018
Acura RLX (Smart Key) 2016-2018
Acura TLX (Smart Key) 2015-2020
Optional starter disable connection
When using an external relay, use a 1N4002 diode or larger.
Ignition
(vehicle side)
Cut
Refer to the
Vehicle connections
section for wire
and connector
details.
Important!
When flashing your module for Security Only, the Ground When
Armed (GWA) function is pre-configured. When flashing your module for Remote
Start & Security, you must manually assign the designated output to Anti Grind (AG)
Starter Kill. (Applicable to CORE 194+.)
17
933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Keyless Access Control Unit Location
right of steering column
above glove box
right of steering column
left of steering column
above glove box
1A Diode (1N4002+)
87
(+) Ignition
87a
86 85
30
Starter (vehicle side)
Starter (connector side)
Vehicle
Honda Fit (Smart Key) 2015-2020
Honda HR-V (Smart Key) 2016-2021
Honda Odyssey (Smart Key) 2014-2017
Honda Pilot (Smart Key) 2016-2020
Honda Ridgeline (Smart Key) 2017-2019
(-) Ground When Armed (GWA) Output: Red/White: 4
Keyless Access Control Unit Location
behind instrument cluster
behind instrument cluster
above gas pedal
above glove box
above glove box
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
