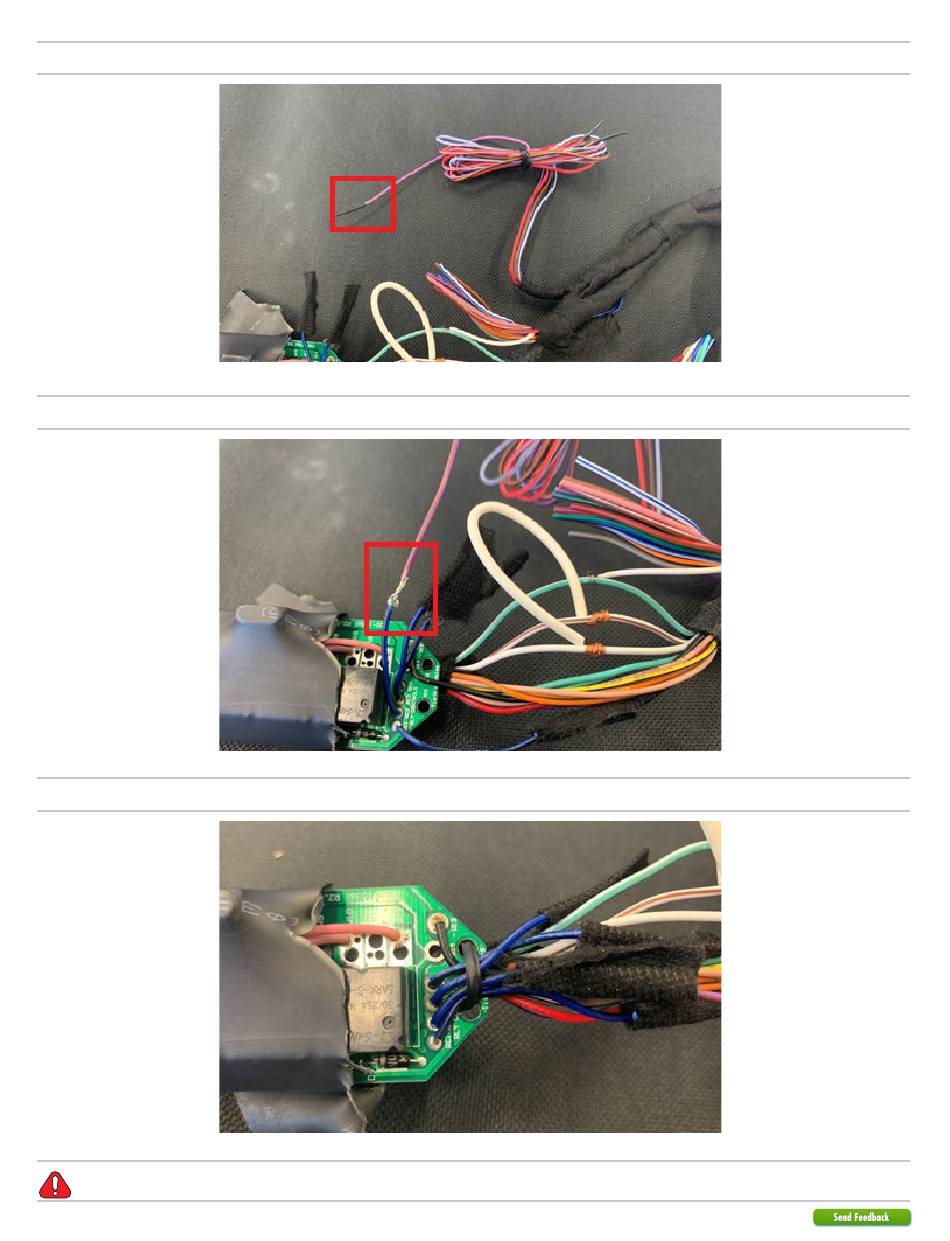

Step 10
Pinpoint the loose Violet/Brown MUX wire of the THHON9 T-Harness.
Step 11
Connect the Violet/Brown MUX wire to the Dk. Blue/Black wire labeled RC2 as shown.
Step 12
Place a new tie wrap and ensure all connections are well taped and secure.
IMPORTANT!
12
933.HONDA9 2.03.195.3 2018 Acura ILX (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
Ensure that all connections are done properly and taped.
