Levelflex FMP53 HART
1)
2-wire; 4-20mA HART
2)
"Approval" Terminal voltage U at the device
• Non-Ex 11.5 to 35 V
• Ex nA
• Ex ic
• CSA GP
Ex ia / IS 11.5 to 30 V
• Ex d / XP 13.5 to 30 V
• Ex ic[ia]
• Ex tD / DIP
1) Feature 020 of the product structure: option A
2) Feature 010 of the product structure
3) For ambient temperatures T
mA). For ambient temperatures T
(3,6 mA). The startup current can be parametrized. If the device is operated with a fixed current I ≥ 4,5 mA (HART multidrop mode), a voltage of
U ≥ 11,5 V is sufficient throughout the entire range of ambient temperatures.
4) For ambient temperatures T
mA).
Endress+Hauser

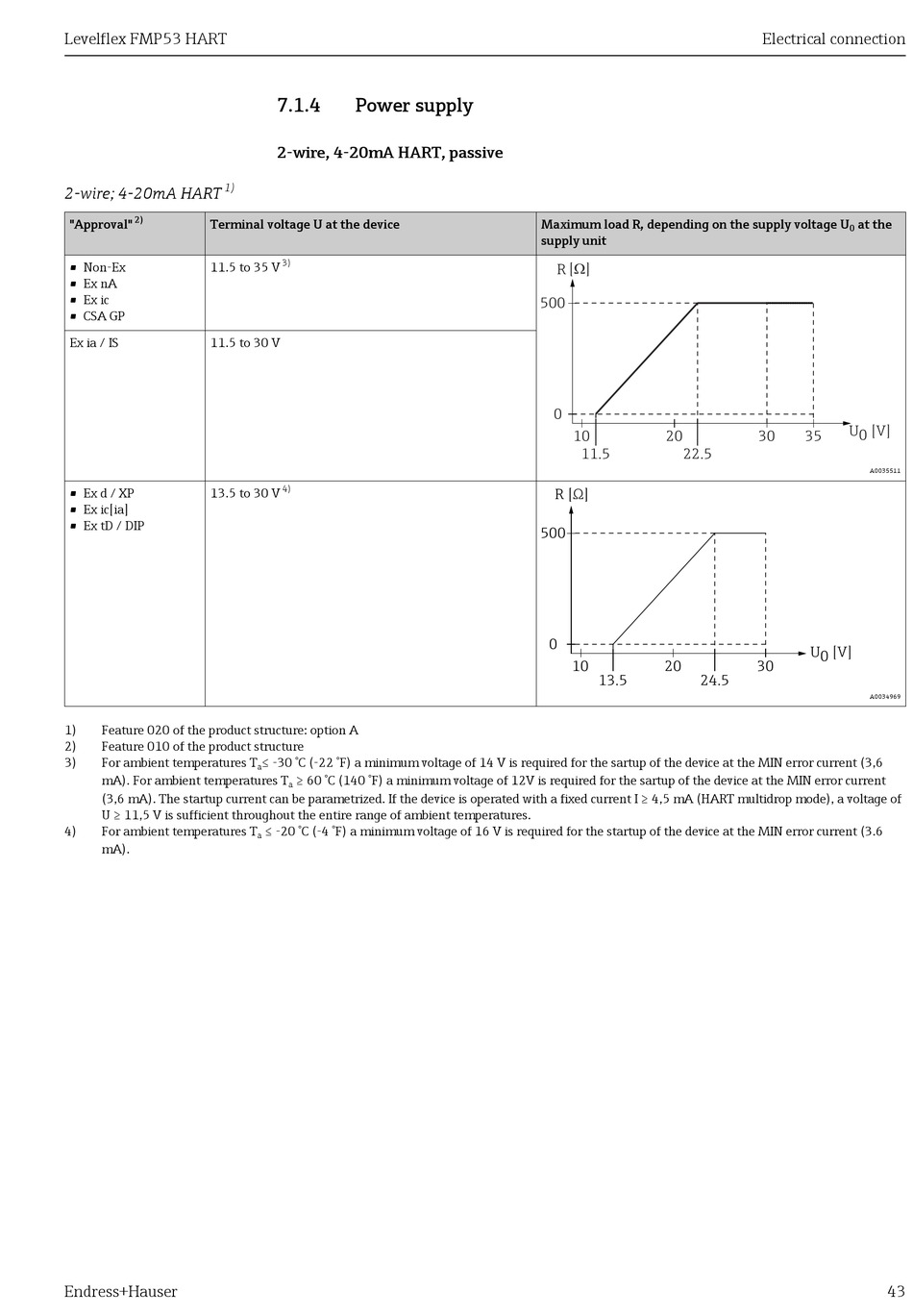

7.1.4

Power supply

2-wire, 4-20mA HART, passive
3)
4)
≤ -30 °C (-22 °F) a minimum voltage of 14 V is required for the sartup of the device at the MIN error current (3,6
a
≥ 60 °C (140 °F) a minimum voltage of 12V is required for the sartup of the device at the MIN error current
a
≤ -20 °C (-4 °F) a minimum voltage of 16 V is required for the startup of the device at the MIN error current (3.6
a
Maximum load R, depending on the supply voltage U
supply unit
R [ ]
W
500
0
10 20
11.5 22.5
R [ ]
500
0
10 20
13.5 24.5
Electrical connection
at the
0
U 0 [V]
30 35
A0035511
U 0 [V]
30
A0034969
43
