Mounting
26
6.1.4
Special mounting conditions

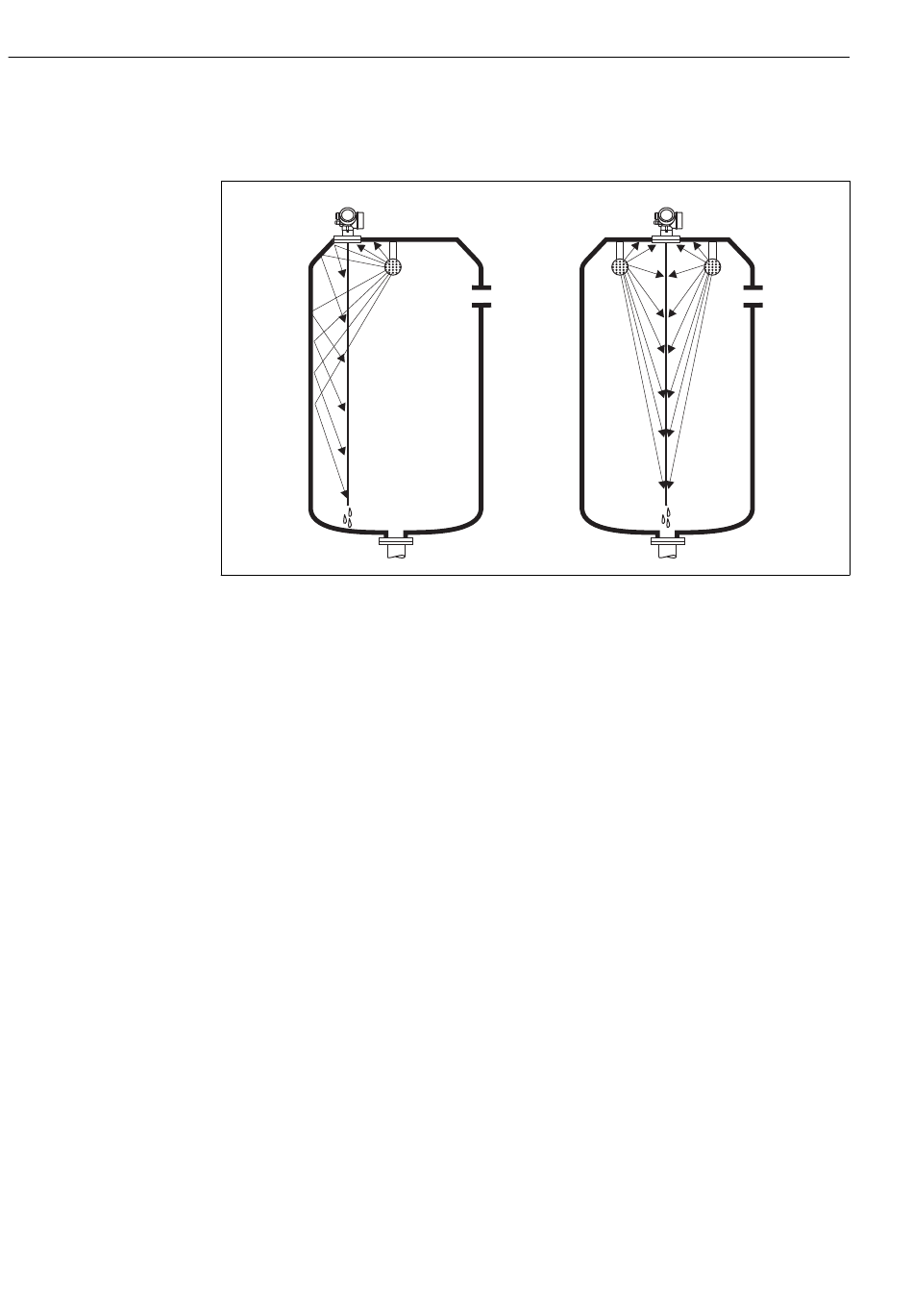

Tanks with spray ball for cleaning the probe
1
Installation close to tank wall
By installing the probe close to the tank wall, the cleaning effect is improved in cases
where a spray ball is used. The cleaning jet is deflected against the tank wall and onto the
probe. This means that those parts of the probe are cleaned which would normally not be
reached by the spray ball jet. If the probe is positioned in this way, only one spray ball is
needed.
Installation in the center of the tank
If the probe is mounted in the center of the tank, it may be necessary to use a second spray
ball. The spray balls should then be mounted to the left and right of the probe.
Levelflex FMP53 HART
2
A0014131
Endress+Hauser
