Ramp at echo lost

Navigation
Prerequisite
Description
User entry
Factory setting
Additional information
Blocking distance
Navigation
Description
User entry
Factory setting
Additional information
Endress+Hauser
 Setup → Advanced setup → Safety settings → Ramp at echo lost
Output echo lost (→  142) = Ramp at echo lost

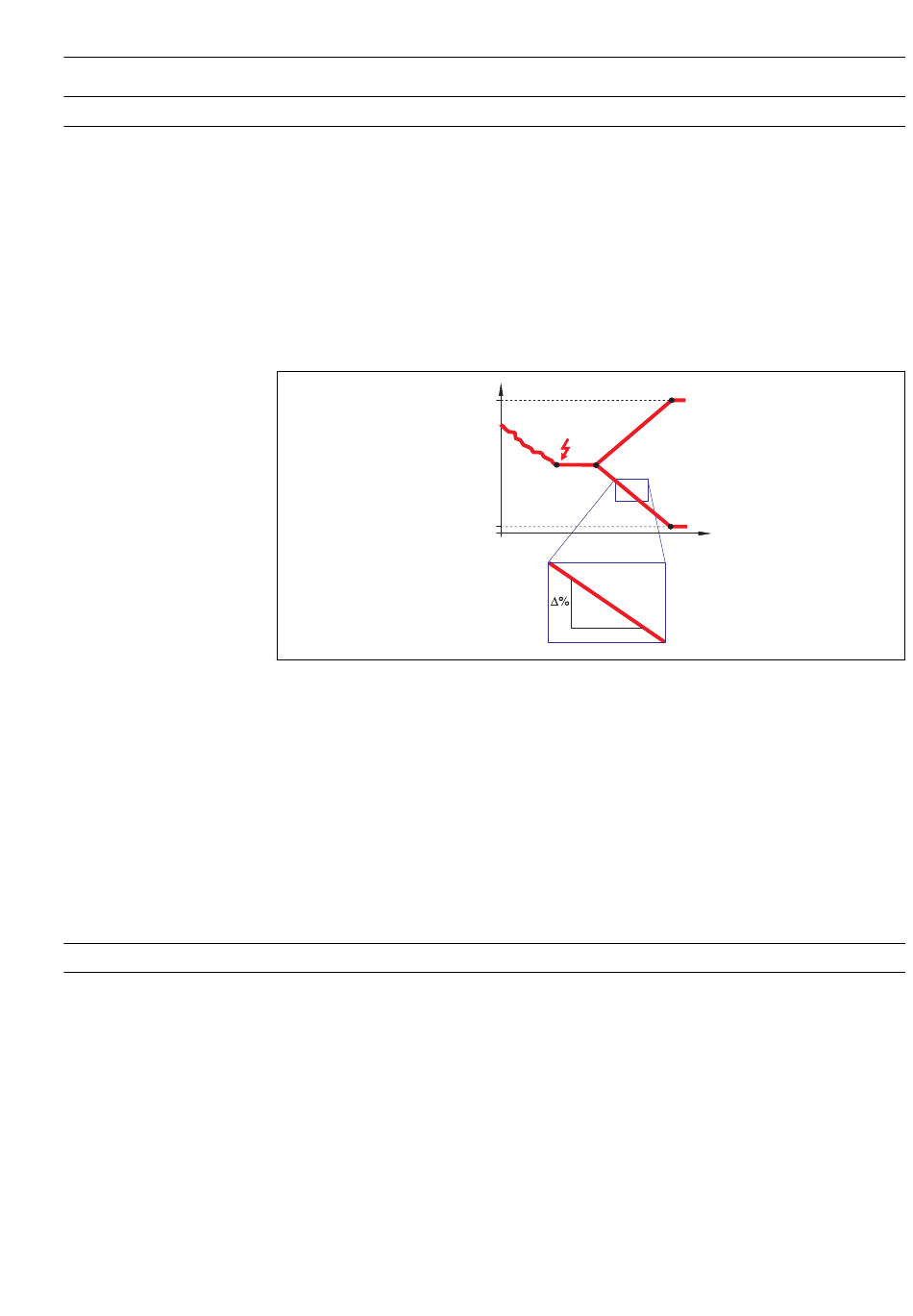

Slope of the ramp in the case of a lost echo
Signed floating-point number
0.0 %/min
A Delay time echo lost
B Ramp at echo lost (→  143) (positive value)
C Ramp at echo lost (→  143) (negative value)
• The unit for the slope of the ramp is "percentage of the measuring range per minute" (%/
min).
• For a negative slope of the ramp: The measured value is continuously decreased until it
reaches 0%.
• For a positive slope of the ramp: The measured value is continuosly increased until it
reaches 100%.
 Setup → Advanced setup → Safety settings → Blocking distance
Specify upper blocking distance UB.
0 to 200 m
For rod and rope probes up to 8 m (26 ft): 200 mm (8 in)
Signals in the upper blocking distance are only evaluated if they have been outside the
blocking distance when the device was switched on and move into the blocking distance
100%
B
A
0%
min
Operating menu
C
t

A0013269

143
