Description of the device

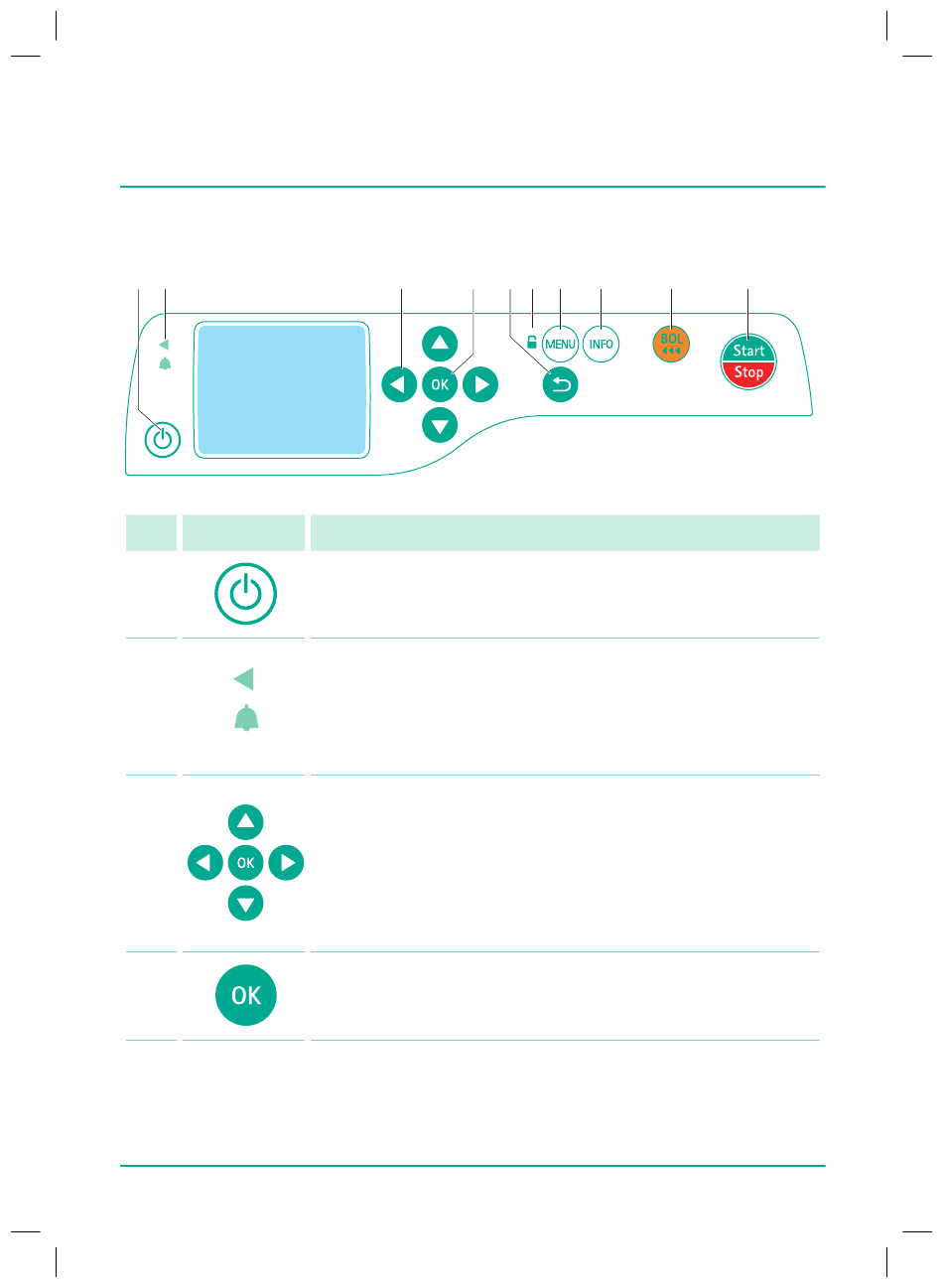

Display and control elements

5.3
1 2
No. Element
1
2
3
4
16
38932401_Infusomat_compactPlusP_EN_IFU_1020_v5.indd 16
3 4
Meaning
On/Off key:
Switches the device on and off
Status display
Green LED: Delivery
Two-coloured LED (alarm indicator):
- Yellow LED: Pre-alarm (only if enabled in Service Tool)
- Red LED: Technical alarm, operating alarm
Arrow keys:
Scroll through menus
Q
Change settings
Q
Answer yes/no questions
Q
Select scale values and change between digits when inputting
Q
values
Open a function while the infusion is ongoing or suspended
Q
OK key:
Select/confirm function
Q
Confirm value/settings/input/alarms
Q
