www.ti.com
10.9 Pin Strapping
Use the Pin Strapping tab
some of the PMBus commands at power up. The EEPROM Value column shows the values currently configured
to the related PMBus commands.
SLUUC48A – FEBRUARY 2020 – REVISED FEBRUARY 2022
Submit Document Feedback
(Figure
10-8) to aid in selection of external pin strapping resistors used to program

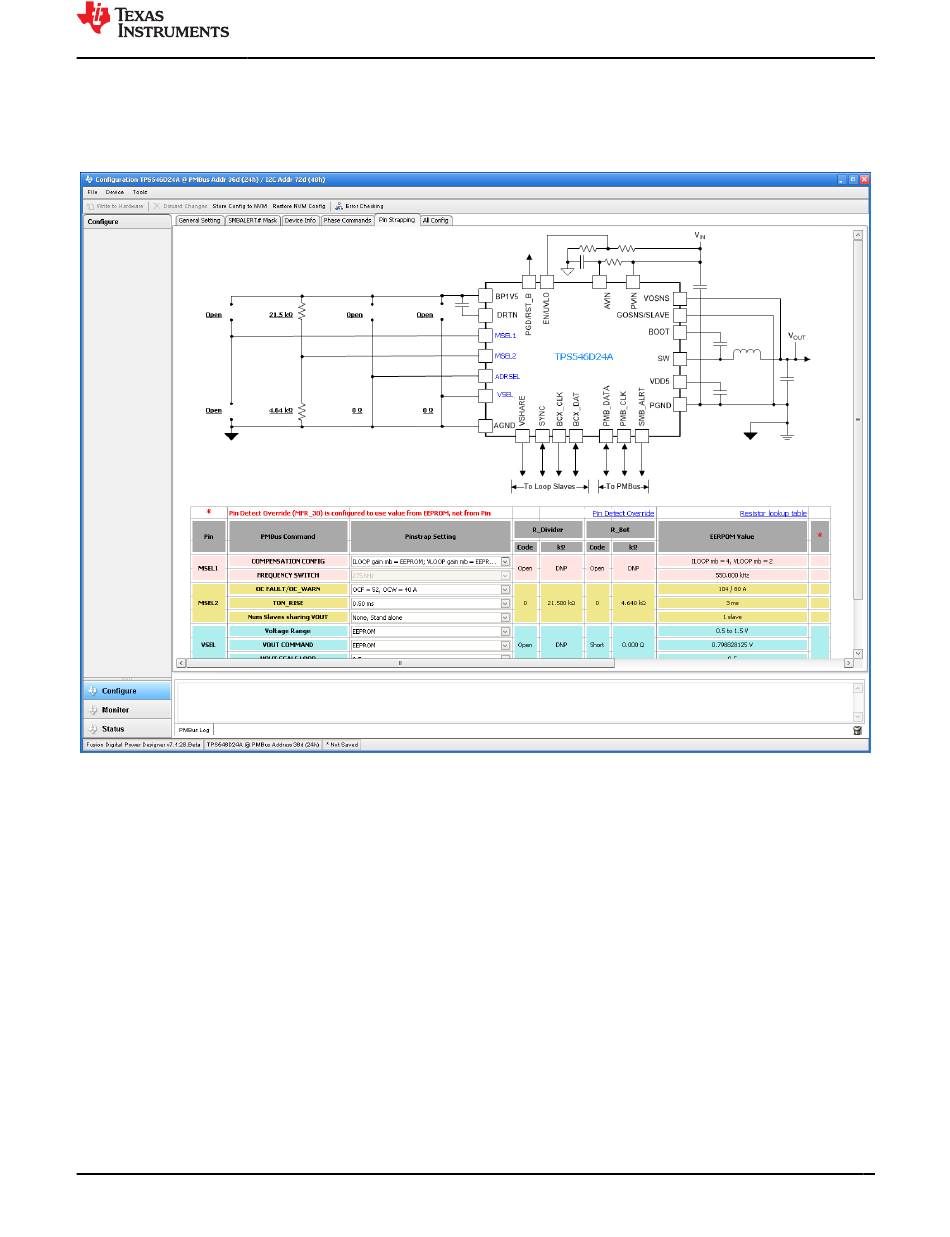

Figure 10-9. Configure – Pin Strapping
Copyright © 2022 Texas Instruments Incorporated
TPS546B24A 2-Phase SWIFT™ Step-Down Converter Evaluation Module
Using the Fusion GUI
39
User's Guide
