Using the Fusion GUI

10.4 Pop-up for Some Commands While Conversion is Enabled

Some commands will cause a pop-up like the one shown in
conversion is enabled. The settings in the GUI that will cause this pop-up include the following:
• FREQUENCY_SWITCH
• USER_DATA_01 (Compensation)
• Vout Mode
• Vout Scale Loop
To change these settings to a new value, click on Stop Power Conversion then Close and continue. The GUI will
automatically disable conversion, write the new value, and enable conversion again.

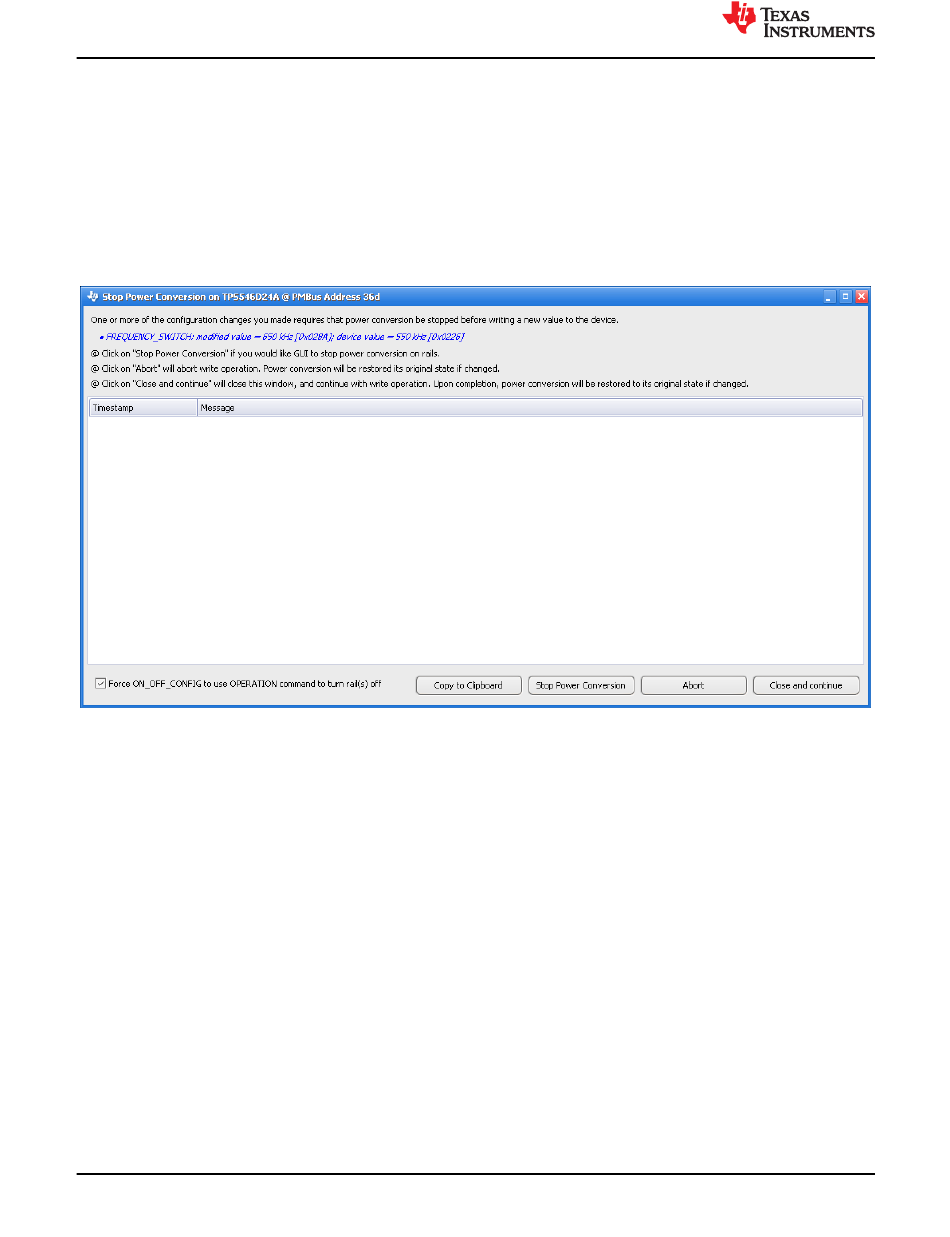

Figure 10-4. Pop-up When Trying to Change FREQUENCY_SWITCH With Conversion Enabled
34 TPS546B24A 2-Phase SWIFT™ Step-Down Converter Evaluation Module
User's Guide
Figure 10-4
Copyright © 2022 Texas Instruments Incorporated
when trying to change them while
