7.11 Thermal Image

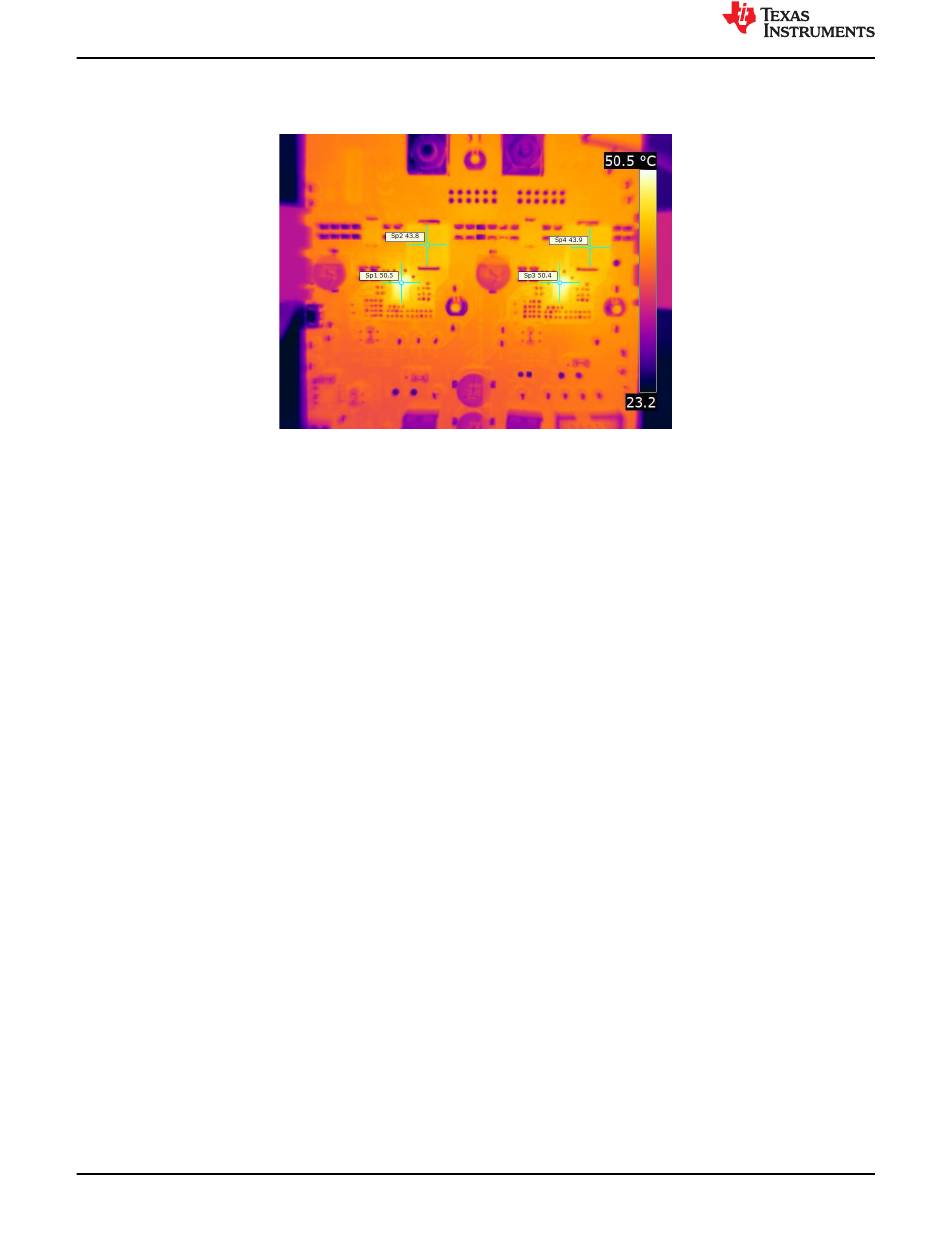

Figure 7-17
shows the TPS546B24AEVM-2PH thermal image.
24
TPS546B24A 2-Phase SWIFT™ Step-Down Converter Evaluation Module
User's Guide
V
= 12 V, I
= 40 A
IN
OUT
Figure 7-17. Thermal Image
