10.3 Changing ON_OFF_CONFIG

Changing the On/Off Config prompts a pop-up window with details of the options shown in
pop-up gives multiple options on what turns on and off power conversion. By default, the TPS546B24A is
configured to CONTROL Pin Only. This is the EN/UVLO pin.
SLUUC48A – FEBRUARY 2020 – REVISED FEBRUARY 2022
Submit Document Feedback

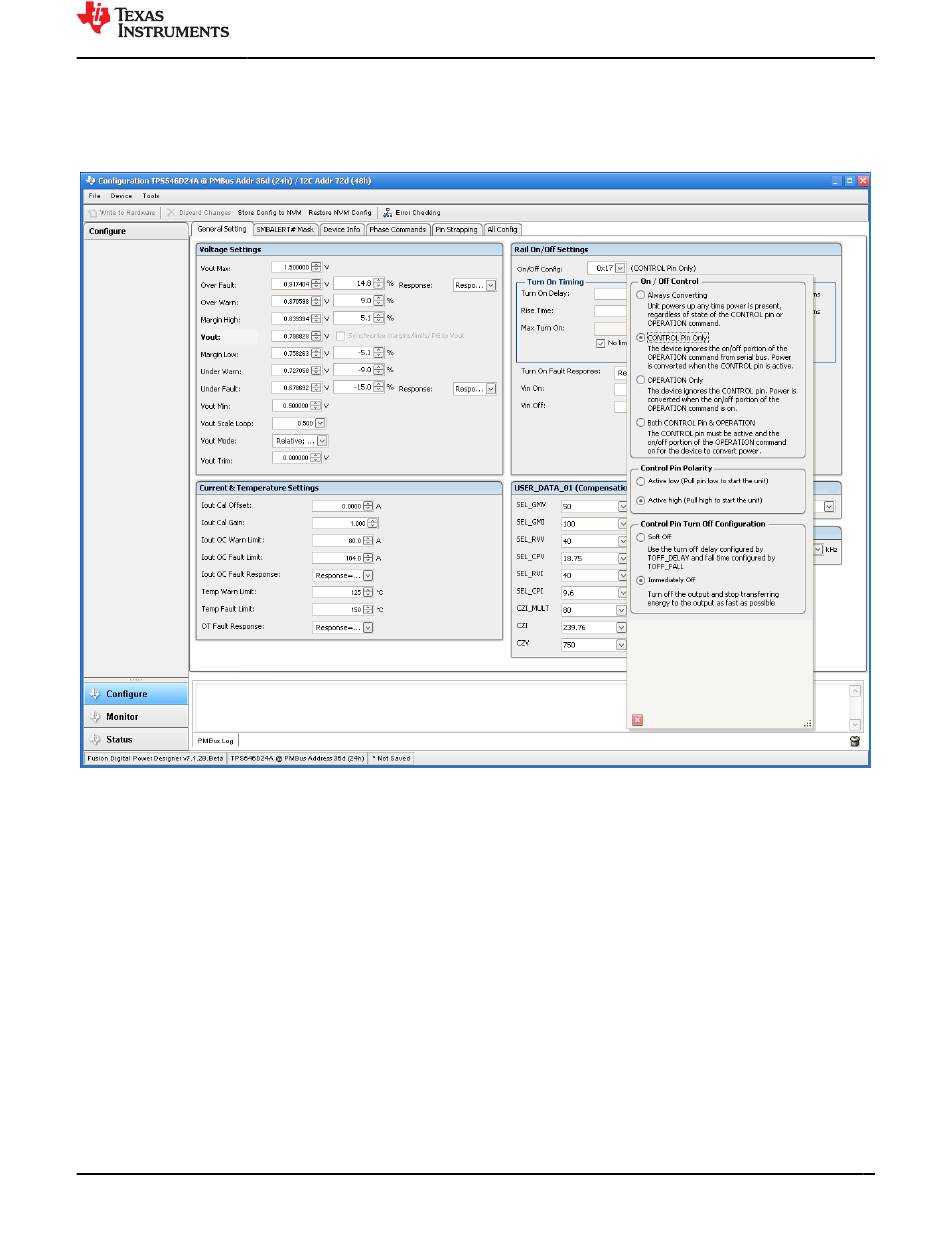

Figure 10-3. Configure – ON_OFF_CONFIG
TPS546B24A 2-Phase SWIFT™ Step-Down Converter Evaluation Module
Copyright © 2022 Texas Instruments Incorporated
Using the Fusion GUI
Figure 10-3. This
