7.9 Control On with Pre-Biased Output

Figure 7-15 illustrates the control on waveforms with a pre-biased output voltage.

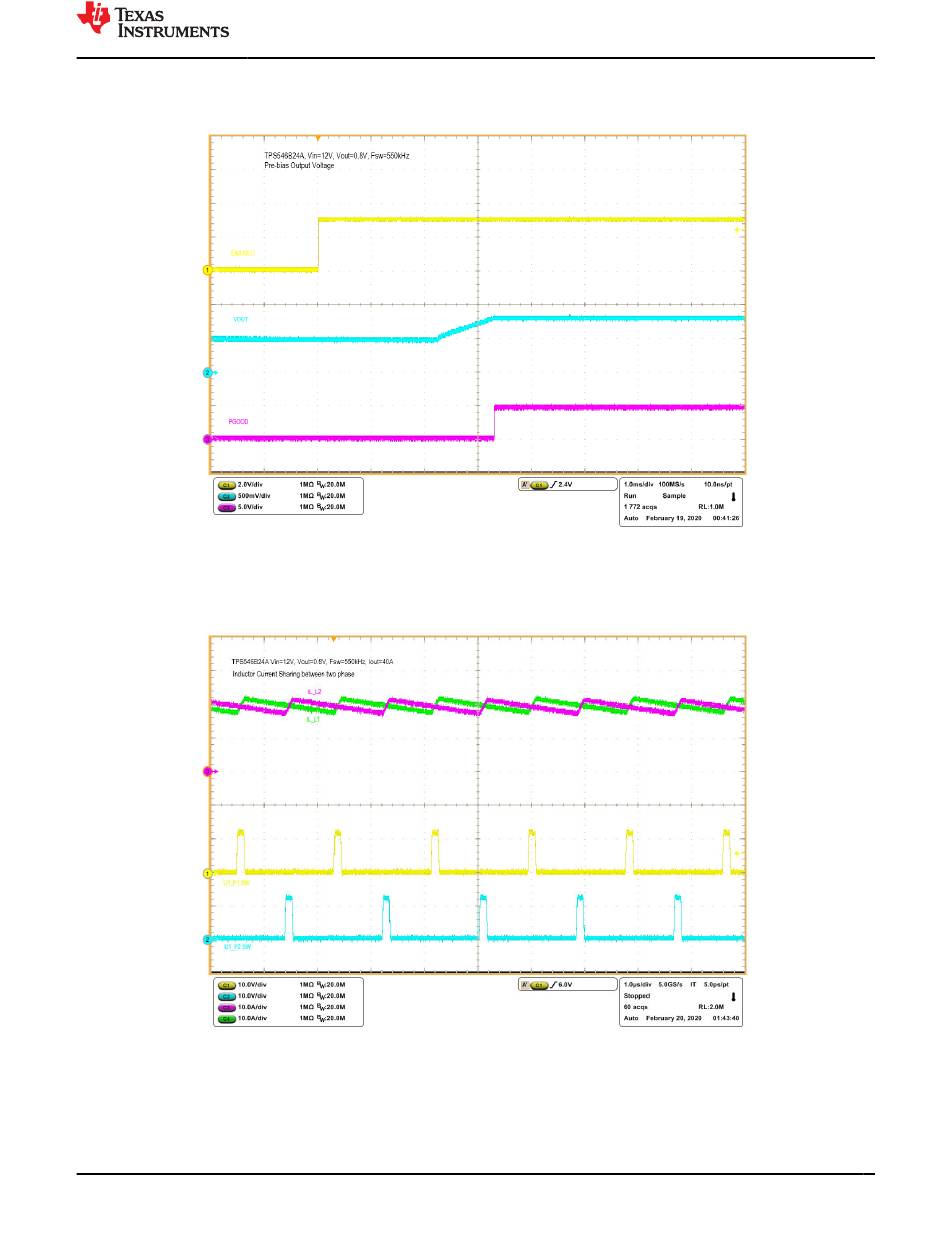

Figure 7-15. Start-Up From Control With Pre-Biased Output

7.10 Current Sharing Between Two Phases

Figure 7-16 illustrates the current sharing between two phases.

Figure 7-16. Inductor Current and Switch Node Waveform, 40-A Load
