www.ti.com
10.9 Pin Strapping
Use the Pin Strapping tab
some of the PMBus commands at power-up. The EEPROM Value column shows the values currently configured
to the related PMBus commands.
SLUUCQ1 – MARCH 2023
Submit Document Feedback
(Figure
10-8) to aid in selection of external pin strapping resistors used to program

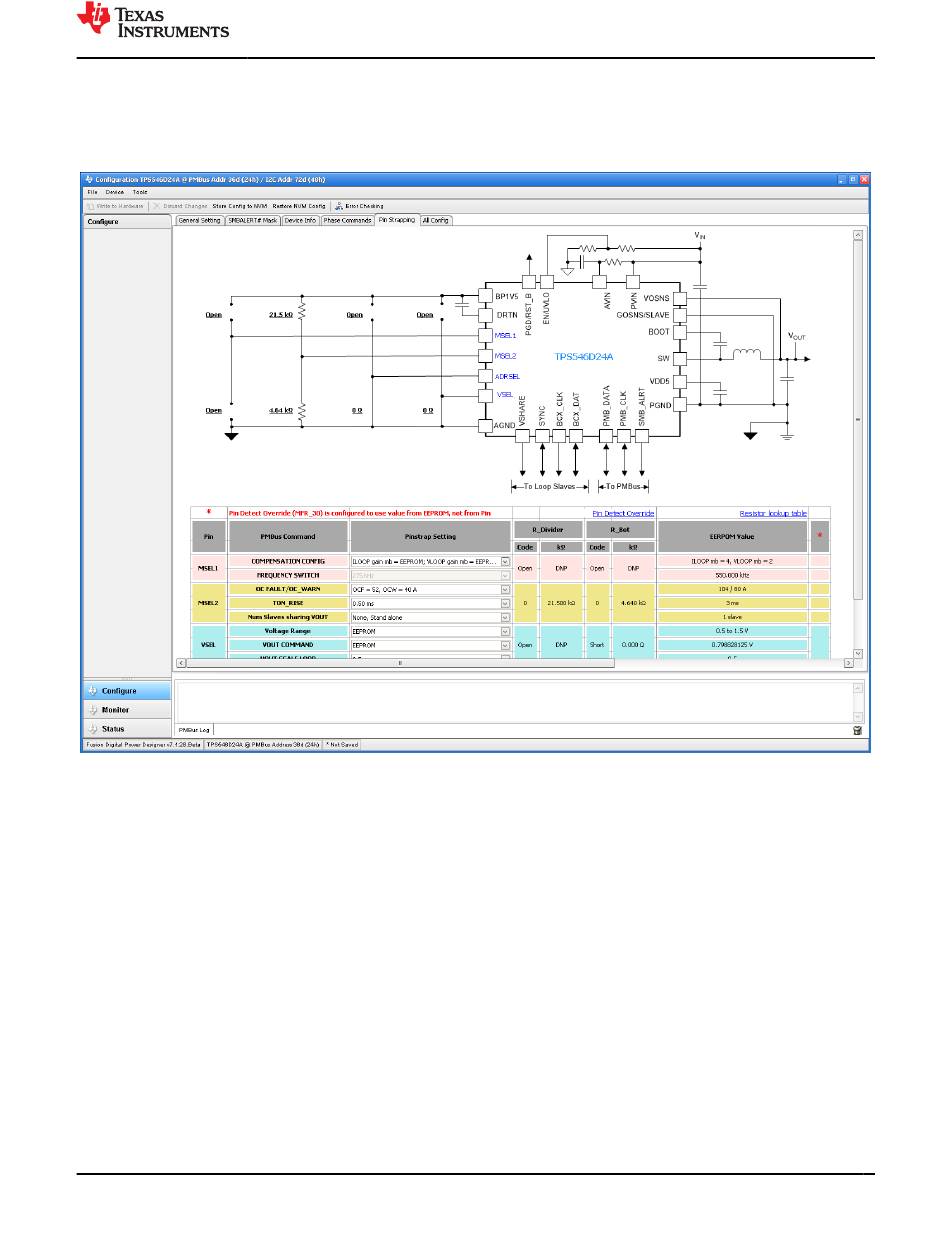

Figure 10-9. Configure – Pin Strapping
Copyright © 2023 Texas Instruments Incorporated
™
TPS546D24S 2-Phase SWIFT
Step-Down Converter Evaluation Module
Using the Fusion GUI
41
User's Guide
