7.5 Output Ripple
Figure 7-7
and
Figure 7-8
SLUUC48A – FEBRUARY 2020 – REVISED FEBRUARY 2022
Submit Document Feedback
show the output ripple waveforms at 0-A and 40-A load.

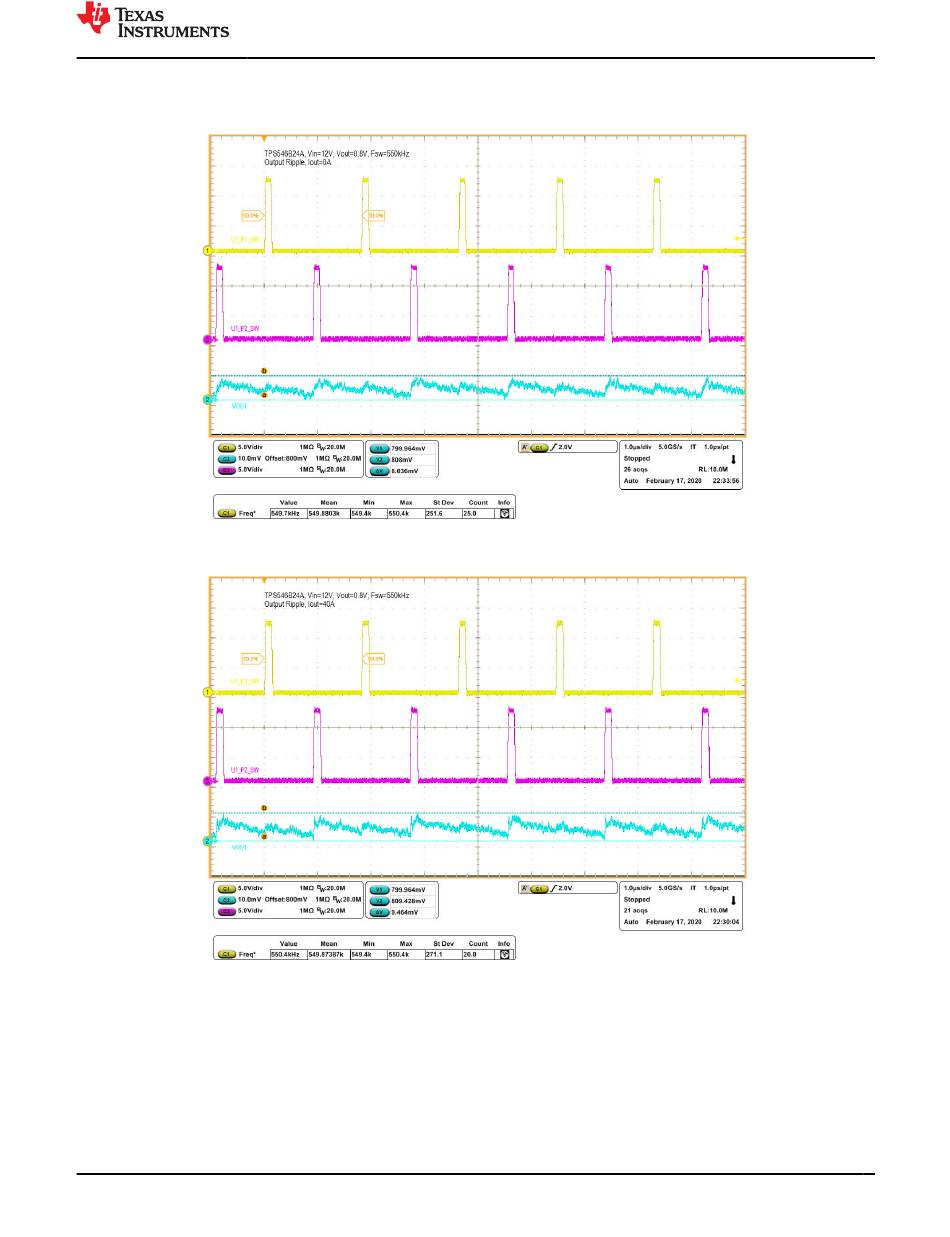

Figure 7-7. Output Ripple With 0-A Load
Figure 7-8. Output Ripple With 40-A Load
Copyright © 2022 Texas Instruments Incorporated
Performance Data and Typical Characteristic Curves
TPS546B24A 2-Phase SWIFT™ Step-Down Converter Evaluation Module
