Rear Panel

The rear panel of your SMCD3GNV Wireless Cable Modem Gateway contains a reset
button and the ports for attaching the supplied power adapter and making additional
connections. Figure 2 shows the rear panel components and Table 2 describes their
meanings.


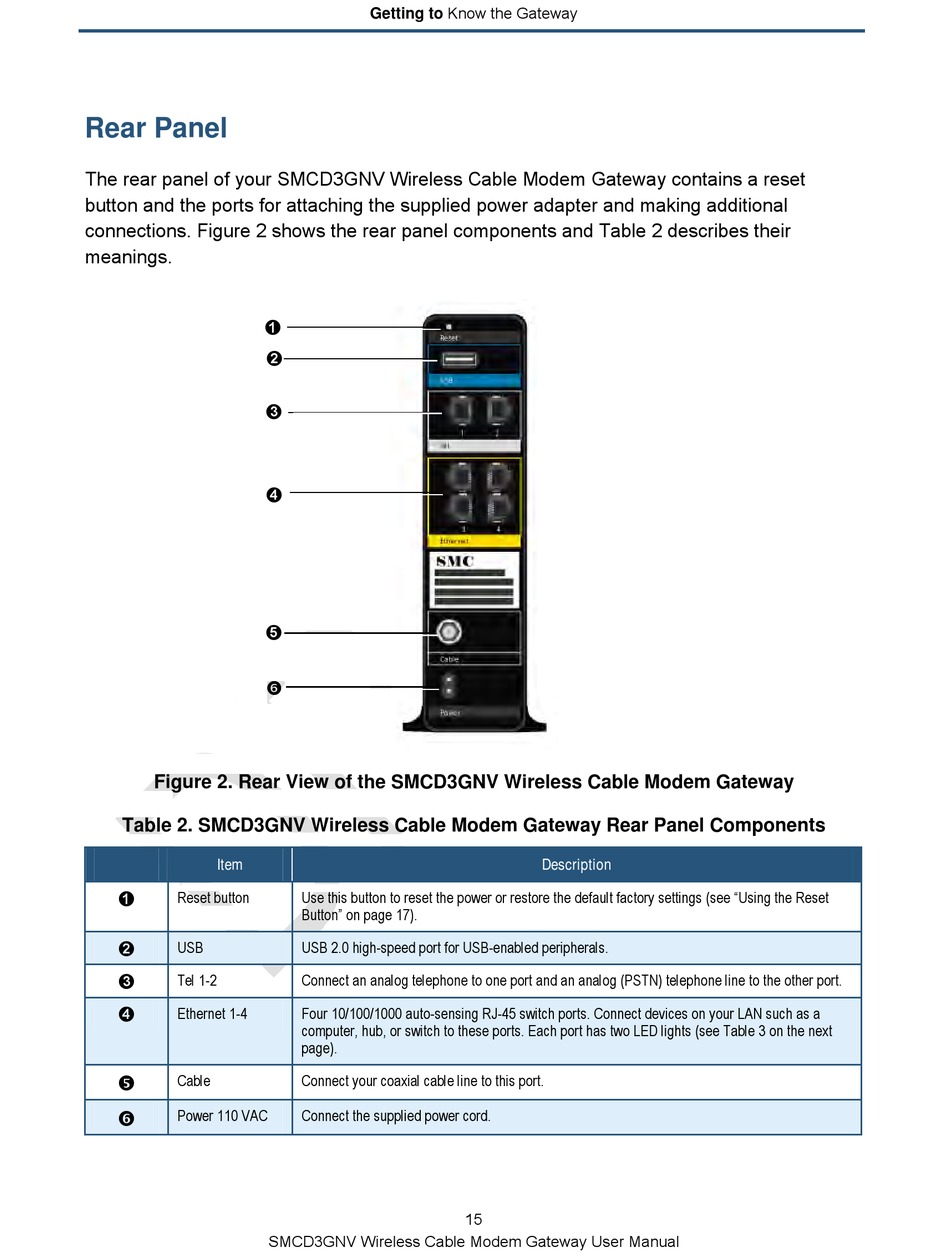

Figure 2. Rear View of the SMCD3GNV Wireless Cable Modem Gateway
Table 2. SMCD3GNV Wireless Cable Modem Gateway Rear Panel Components
Item
Reset button

USB

Tel 1-2

Ethernet 1-4

Cable

Power 110 VAC

Getting to Know the Gateway





Use this button to reset the power or restore the default factory settings (see "Using the Reset
Button" on page 17).
USB 2.0 high-speed port for USB-enabled peripherals.
Connect an analog telephone to one port and an analog (PSTN) telephone line to the other port.
Four 10/100/1000 auto-sensing RJ-45 switch ports. Connect devices on your LAN such as a
computer, hub, or switch to these ports. Each port has two LED lights (see Table 3 on the next
page).
Connect your coaxial cable line to this port.
Connect the supplied power cord.
