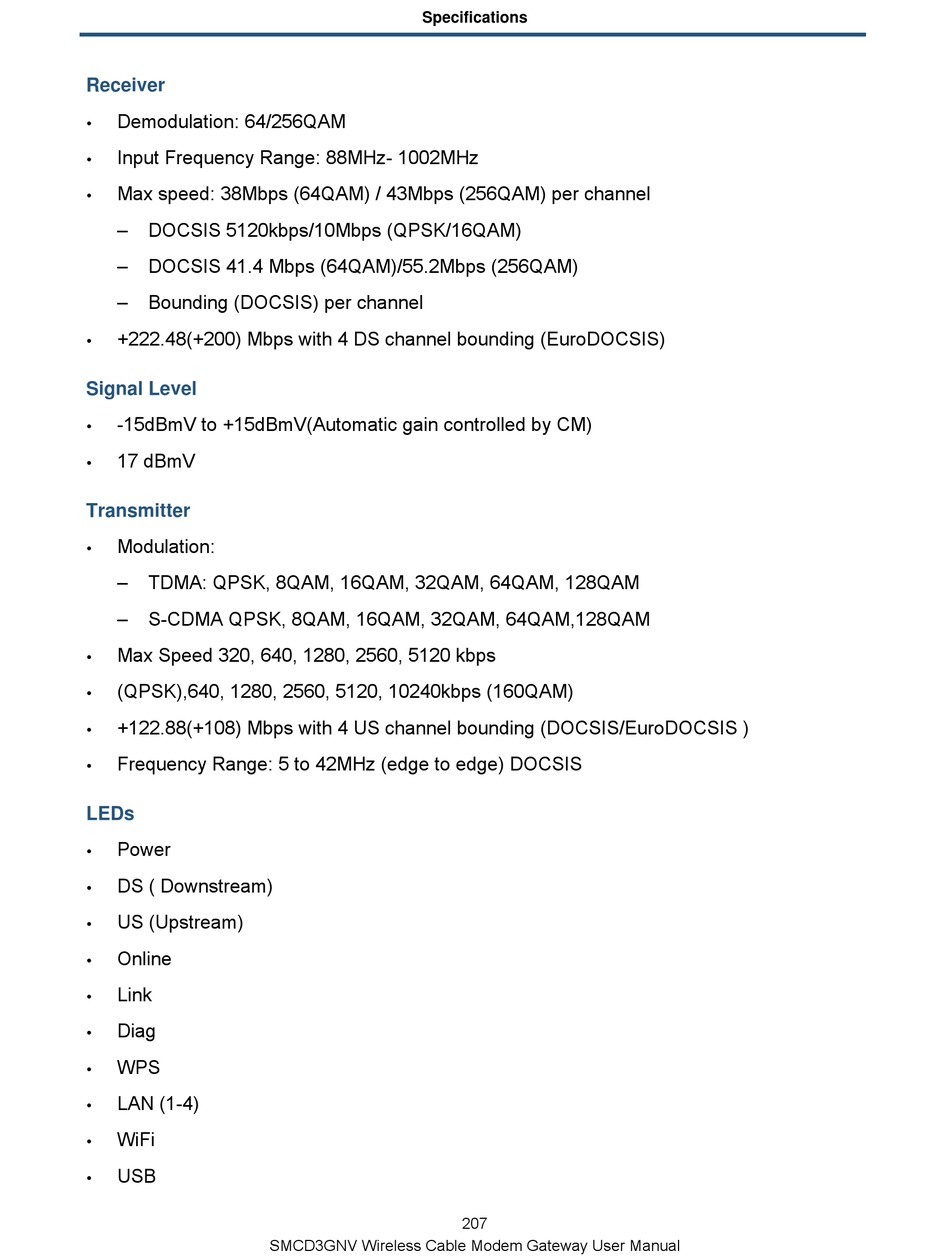

SMC Networks SMCD3GNV User Manual page 207

Receiver
Demodulation: 64/256QAM

Input Frequency Range: 88MHz- 1002MHz

Max speed: 38Mbps (64QAM) / 43Mbps (256QAM) per channel

– DOCSIS 5120kbps/10Mbps (QPSK/16QAM)
– DOCSIS 41.4 Mbps (64QAM)/55.2Mbps (256QAM)
– Bounding (DOCSIS) per channel
+222.48(+200) Mbps with 4 DS channel bounding (EuroDOCSIS)

Signal Level
-15dBmV to +15dBmV(Automatic gain controlled by CM)

17 dBmV

Transmitter
Modulation:

– TDMA: QPSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM
– S-CDMA QPSK, 8QAM, 16QAM, 32QAM, 64QAM,128QAM
Max Speed 320, 640, 1280, 2560, 5120 kbps

(QPSK),640, 1280, 2560, 5120, 10240kbps (160QAM)

+122.88(+108) Mbps with 4 US channel bounding (DOCSIS/EuroDOCSIS )

Frequency Range: 5 to 42MHz (edge to edge) DOCSIS

LEDs
Power

DS ( Downstream)

US (Upstream)

Online

Link

Diag

WPS

LAN (1-4)

WiFi

USB

