Generating Logs - SMC Networks SMCD3GNV User Manual

Generating Logs

Using the Logs menu, you can define filters for system, event, and firewall logs, and then
show, print or download the logs. To display the Logs menu, click Troubleshooting > Logs
in the menu bar. Figure 101 shows an example of the menu.
Under Logs Filters, you can set a log filter for the type of logs you want to generate and the
time frame they are to cover. If you do not set a log filter, the default filter is automatically set
to system log types for the current day (today). After you define the filter, you can show,
print, or download the log.
4. Using the Log Type drop-down list, select the log to which you want to apply a filter,
Choices are:
System Logs

Event Logs

Firewall Logs

5. Using the Time Frame drop-down list, select a time frame that the log is to cover.
6. To show the log, click the SHOW LOGS button.
7. To print the log with the filter applied, click PRINT.
8. To download the log with the filter applied, click DOWNLOAD.
Configuring the Gateway's mso Interface

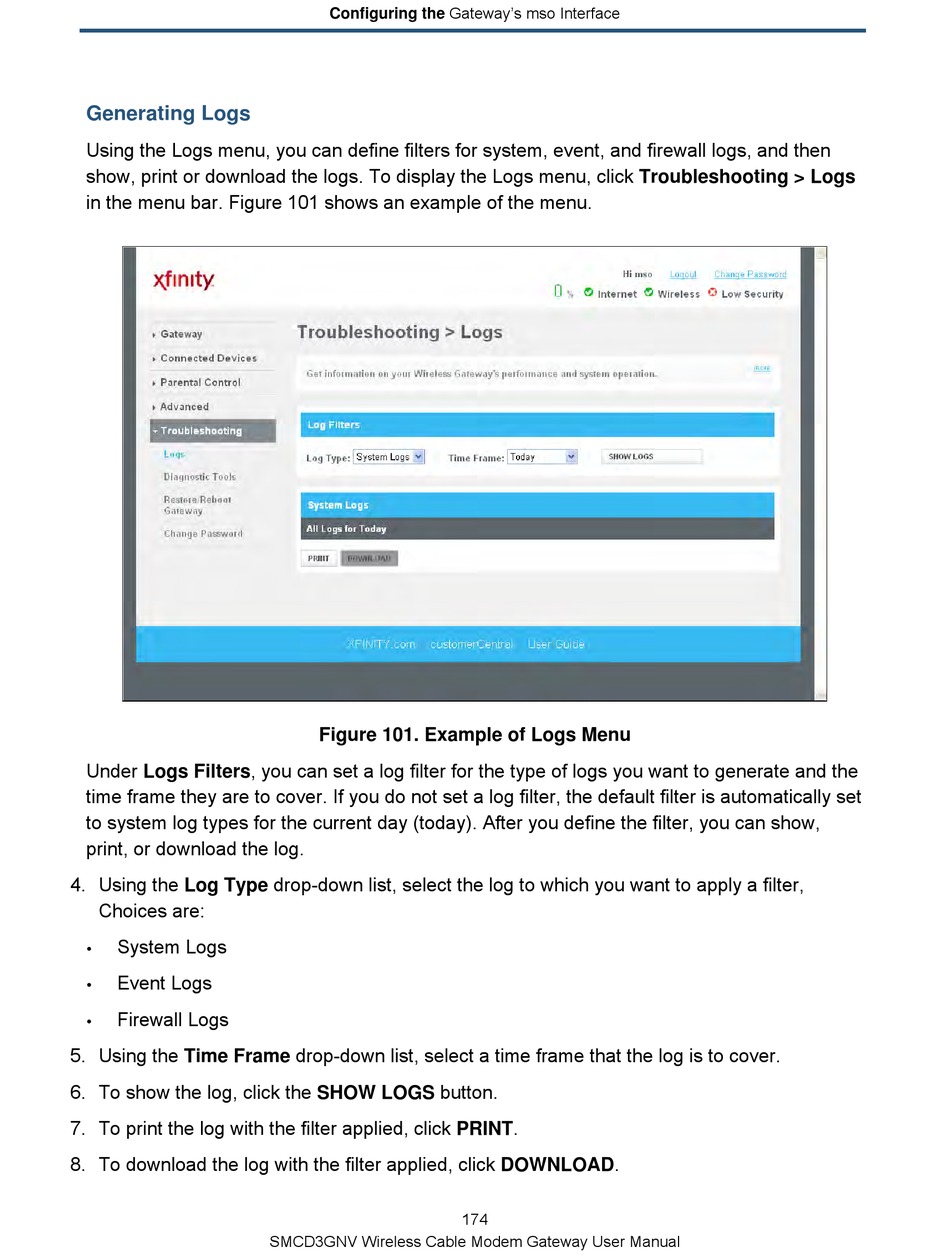

Figure 101. Example of Logs Menu
SMCD3GNV Wireless Cable Modem Gateway User Manual
174
