Configuring the Gateway's mso Interface

Testing Connectivity to Destination and IP Addresses

There may be times when you encounter a problem trying to reach a certain destination. If
you examine the Gateway's configuration and operation and everything looks fine, the
problem might be with a router up the line from the Gateway or with the line itself.
To help you identify such issues, the Network Diagnostic Tools menu lets you test
connectivity to a destination or IP address. To display the Network Diagnostic Tools menu,
click Troubleshooting > Diagnostic Tools in the menu bar. Figure 102 shows an example
of the menu.

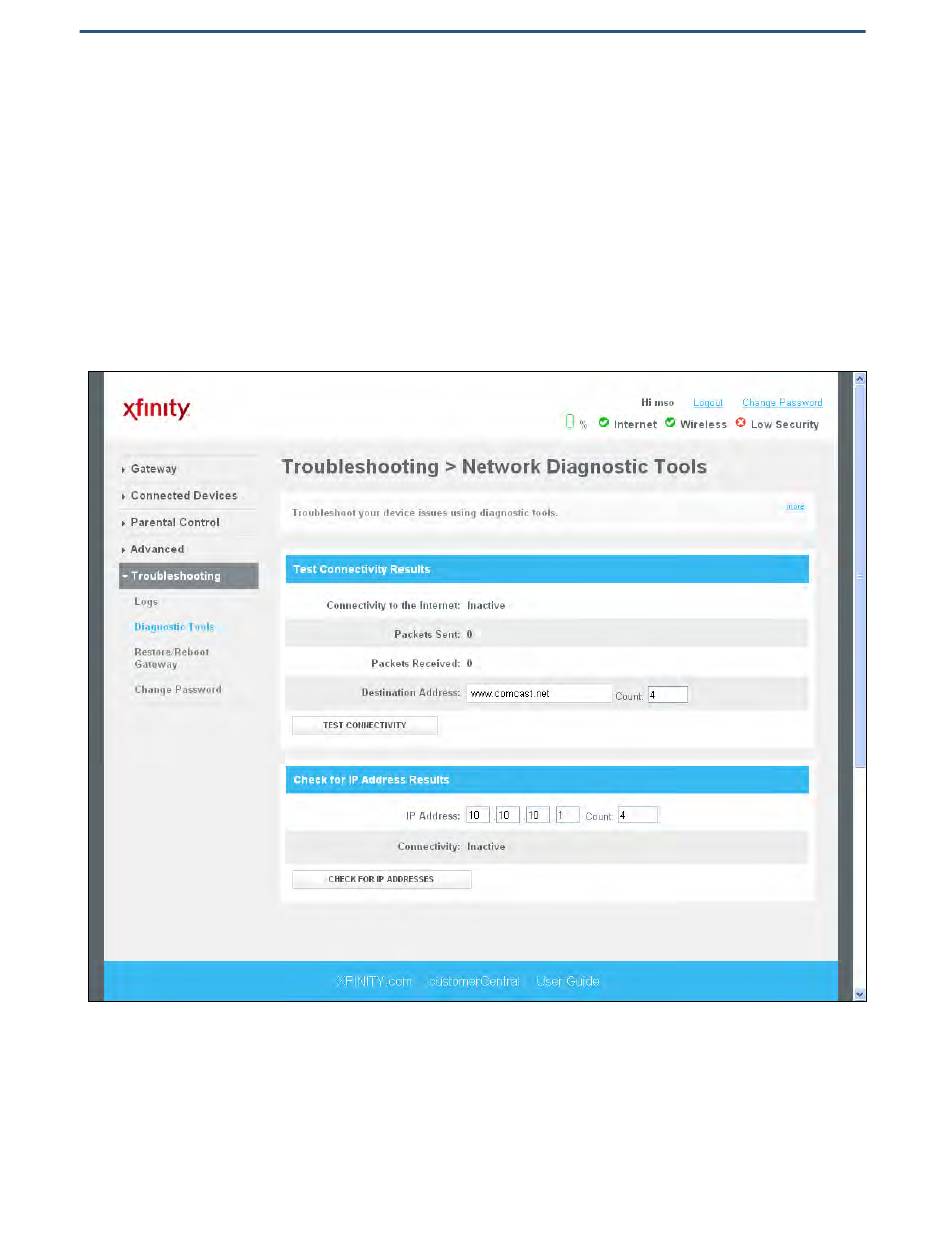

Figure 102. Example of the Network Diagnostic Tools Menu
175
SMCD3GNV Wireless Cable Modem Gateway User Manual
