Configuring Microsoft Windows 7 - SMC Networks SMCD3GNV User Manual

Configuring Microsoft Windows 7

Use the following procedure to configure a computer running Microsoft Windows 7.
1. In the Start menu search box, type: ncpa.cpl
The Network Connections List appears.
2. Right-click the Local Area Connection icon and click Properties.
3. In the Networking tab, click either Internet Protocol Version 4 (TCP/IPv4) or Internet
Protocol Version 6 (TCP/IPv6), and then click Properties.
Preconfiguration Guidelines

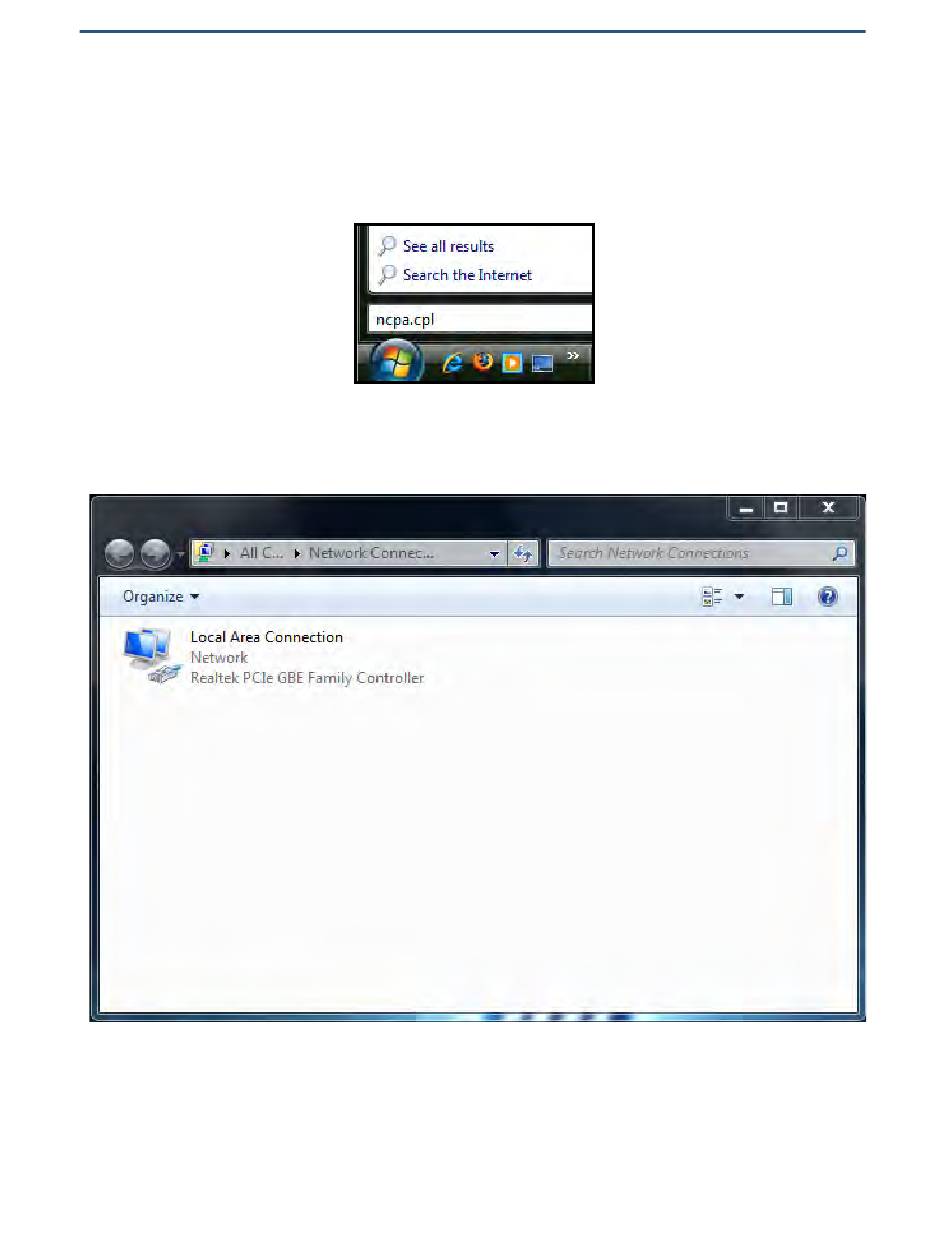

Figure 13. Typing ncpa.cpl in the Start Menu Box
Figure 14. Example of Network Connections List
SMCD3GNV Wireless Cable Modem Gateway User Manual
30
