6.6 Replace Refrigeration Module (cont.)
STEP 7
To replace the refrigeration module, reconnect the
power cord to the new unit. Reference Step 6,
where the power cord was disconnected.
STEP 8
Position the module flanges onto the lift brackets
and slide the unit into the cabinet until it stops.

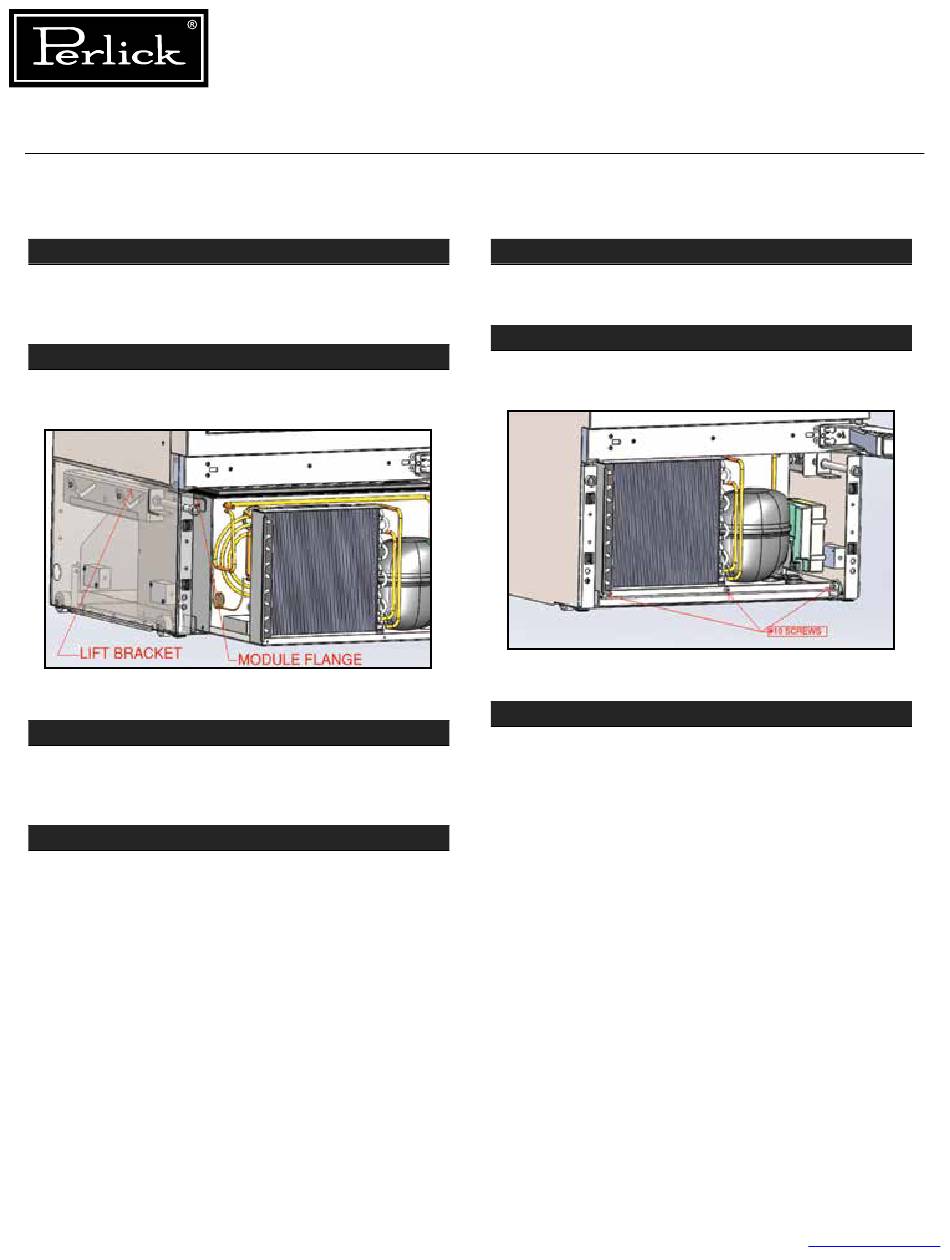

Figure 6-12.7. Slide Unit Back Into Cabinet

STEP 9
Raise the refrigeration module into place by
tightening the socket head cap screws using a
3/8" allen wrench.
STEP 10
Reconnect all wiring from the refrigeration module
and cabinet. The wires from the cabinet and
module are color coded to match one another.
Before proceeding to Step 11, make sure unit is
functioning as intended. If not, ensure all wires
are tightly secured.
52
Column Refrigeration Service Manual
STEP 11
Install the cabinet bottom panel and any drawers
or shelves removed in Step 3.
STEP 12
Reinstall the front lift bracket to the module using
the (3) #10 screws removed in step 2.

Figure 6-12.8. Reinstall Front Lift Bracket

STEP 13
Reinstall the grill. Make sure latches are aligned
with the catches on each side of the unit before
pushing grill onto cabinet.
