24" HC SERIES, HB SERIES, & HD SERIES UNDERCOUNTER REFRIGERATION
Refrigerator
(HC24RS4)

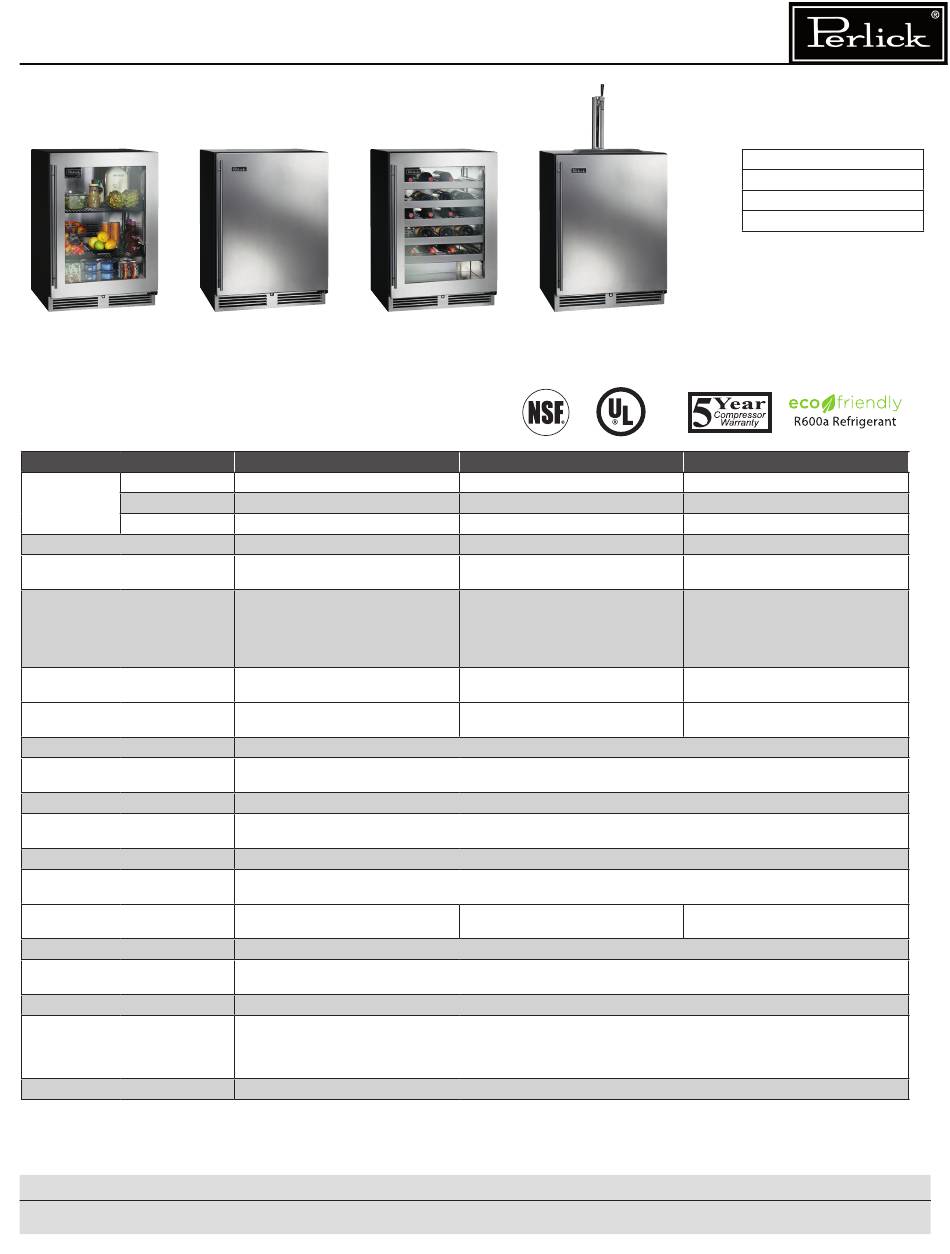

HC Series Size and Specifications
MODEL NO.
CABINET Length Ins. (mm)
DIMENSIONS
Depth Ins. (mm)
Height Ins. (mm)
SHIP WEIGHT LBS. (KG)
CAPACITY CU. FT. (L.)
[PRODUCT*]
SHELVING
TEMPERATURE SETTINGS F°(C)
TAPPING
CABINET CONSTRUCTION (INT.)
CABINET CONSTRUCTION (EXT.)
CABINET INSULATION
DOORS, HINGING & HARDWARE
CONDENSING UNIT
REFRIGERATION
HEAT REJECTION (at 75°F
ambient)
PLUMBING
ELECTRICAL
VENTILATION
CUSTOMER OPTIONS
ADDITIONAL ACCESSORIES
*Product capacity based on 12 oz. long neck bottles (Refrigerator), 3"
diameter glass size (Freezer) and 750 ml. wine bottles (Wine Reserve)
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice
Chiller Wine Reserve
(HC24FS4) (HC24WS4)
HC24RS4
23-7/8" (606)
24" (610)
34" (864)
185 (83)
5.3 (150) [5 cases]
2 black vinyl-coated full-extension shelf
(adjustable)
34° (1.1) - 42° (5.6)
Factory Set Point 36° (2.2°)
Centered over door only.
Tapping option removes shelving.
Interior Stainless Steel
Exterior Sides, Exterior Top and Grill Stainless Steel Exterior Back and Exterior Bottom Galvanized
Door Exterior Customer Choice (see below under 'Customer Options')
Polyurethane-Ecomate. Wall Thickness-2" Door, Drawer Thickness-2" (solid stainless steel only)
Number of Doors 1 Opening Style Hinged (Left or Right) Door Style Solid or Glass
Door Swing Clearance 25" (635) Locks Available (factory installed)
Condenser Access Front
Refrigerant R600a Expansion Device Capillary Tube Type w/Hermetic Compressor Defrost Chiller equipped w/automatic
4-hour hot gas defrost cycle and manual 6-hour defrost with auto restart (HC24FS model only)
450 btu/hr
None required. Moisture drains to self evaporating condensate pan
Electrical Supply 115V/60 Hz/1 Phase Running Load Amps HC24FS4: 2.4/HC24RS4 & HC24WS4: 1.6 Cord
Connection Cord Connected (3-prong 6' NEMA 5-15P) Thermostat Digital Lighting Type LED
Front-vented
Door Finishes Black Vinyl/Field Laminate (B), Stainless Steel (S), Glass w/ Black Vinyl/Field Laminate (G), Glass w/ Stainless
Steel Frame (T), Stainless Steel Drawers (E), Black Vinyl/Field Laminate Drawers (D) Door Handle Options 24" full length
stainless steel, Classic 6" chrome w/black vinyl grip, tab handle (top mount, stainless steel)
NOTE: Glass option not available for freezer or beer dispenser
Casters 3.75" (Part No. 66736) Legs 4"-5" (Part No. 66734), 6"-7.25" (Part. No 66735)
Operation/Installation Manual
Beverage Dispenser
(HC24RS4-T1)
*Shown with 1 faucet
draft arm tapping option
#
C
HC24FS4
23-7/8" (606)
24" (610)
34" (864)
195 (88)
5.3 (150) [86 glasses]
2 black vinyl-coated full-extension shelf
(adjustable)
-10°(-23.3) - 10°(-12.2)
Factory Set Point 0° (-17.8°)
Not available
700 btu/hr
NOTE: This equipment is intended for the storage and display of
non-potentially hazardous bottled or canned products only!
3
MODEL NO.
HC24FS4
HC24RS4
HC24WS4
US
HC24WS4
23-7/8" (606)
24" (610)
34" (864)
205 (92)
5.3 (150) [40 wine bottles]
5 black vinyl-coated full-extension wine
shelves that hold 8 wine bottles each
(750 ml.) (adjustable)
Refrigerator & beverage shelving
available
40°(4.4°) - 68°(20)
Factory Set Point 55° (12.8)
Not available
450 btu/hr
Form No. Z2363
Rev. 06.22.2020
