Clean The Oil-Level Sight-Glass; Figure 8 Gas-Ballast Control Assembly - Edwards RV3 Instruction Manual

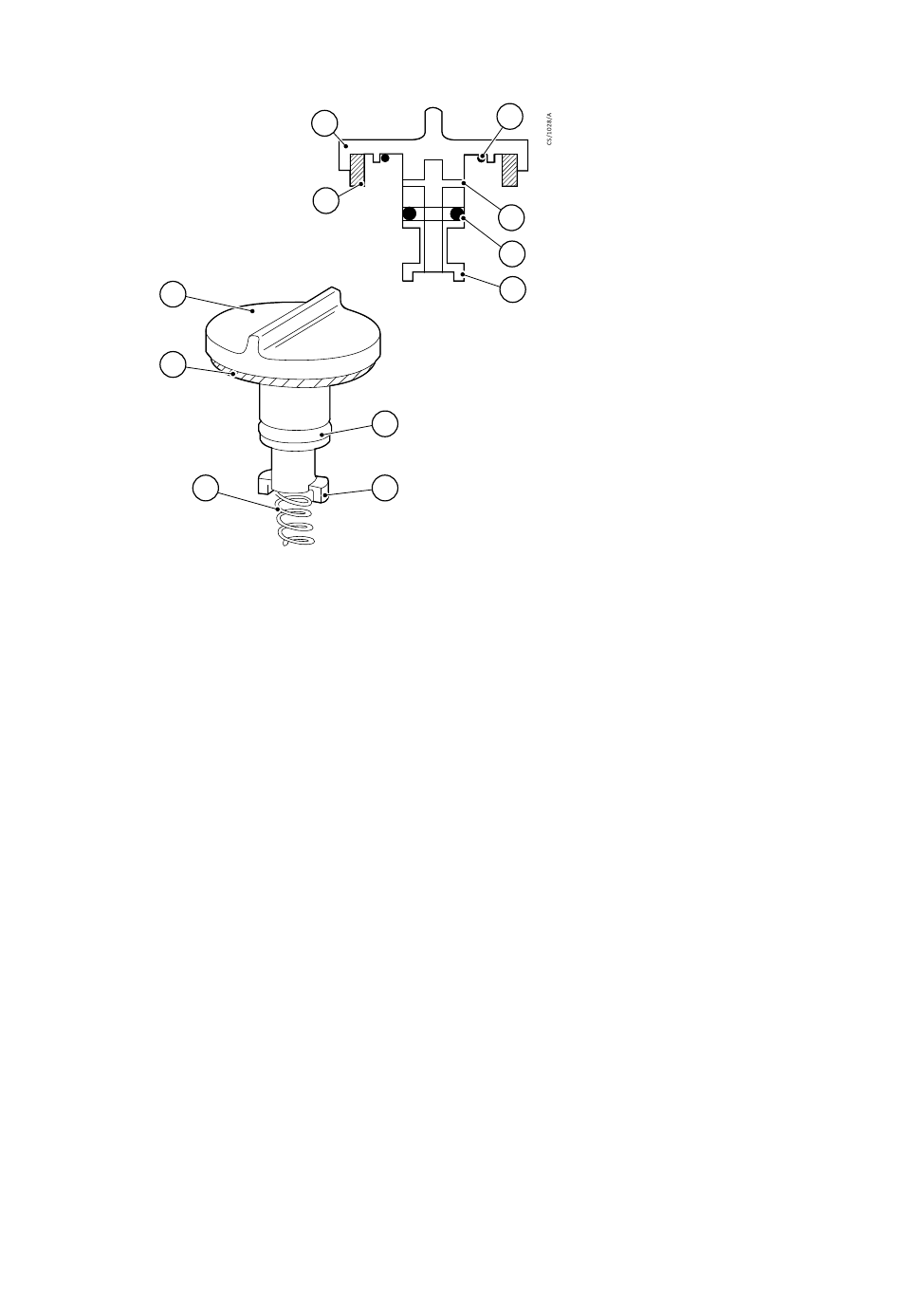

Figure 8 Gas-ballast control assembly

1
7
6
1. Gas-ballast control 1. Gas-ballast control
3. Air-hole 3. Air-hole
5. Bayonet-lugs 5. Bayonet-lugs
7. Filter element 7. Filter element

6.7 Clean the oil-level sight-glass

Refer to
1. Drain the oil as described in
2. Undo the two screws (1) and remove the bezel (2), the sight-glass (3) and the O-
ring (4) from the oil-box (5).
3. Clean the screws, bezel and sight-glass with a suitable cleaning solution.
4. Wipe the O-ring with a clean, dry, lint-free cloth.
5. Wipe the sight-glass recess in the oil-box with the cloth.
6. Refit the O-ring, sight-glass and bezel and secure with the two screws.
7. Refill the pump with oil as described in
8. Check that the sight-glass does not leak.
A65201880_AA
A65201880_AA - Maintenance
1
7
4
5
Figure: Sight-glass assembly
2
3
4
5
2. O-ring 2. O-ring
4. O-ring 4. O-ring
6. Compression spring 6. Compression spring
for the item numbers in brackets.
Replace the oil on page 42.
Replace the oil
Page 44
on page 42.
03/2021 - ©Edwards Limited
