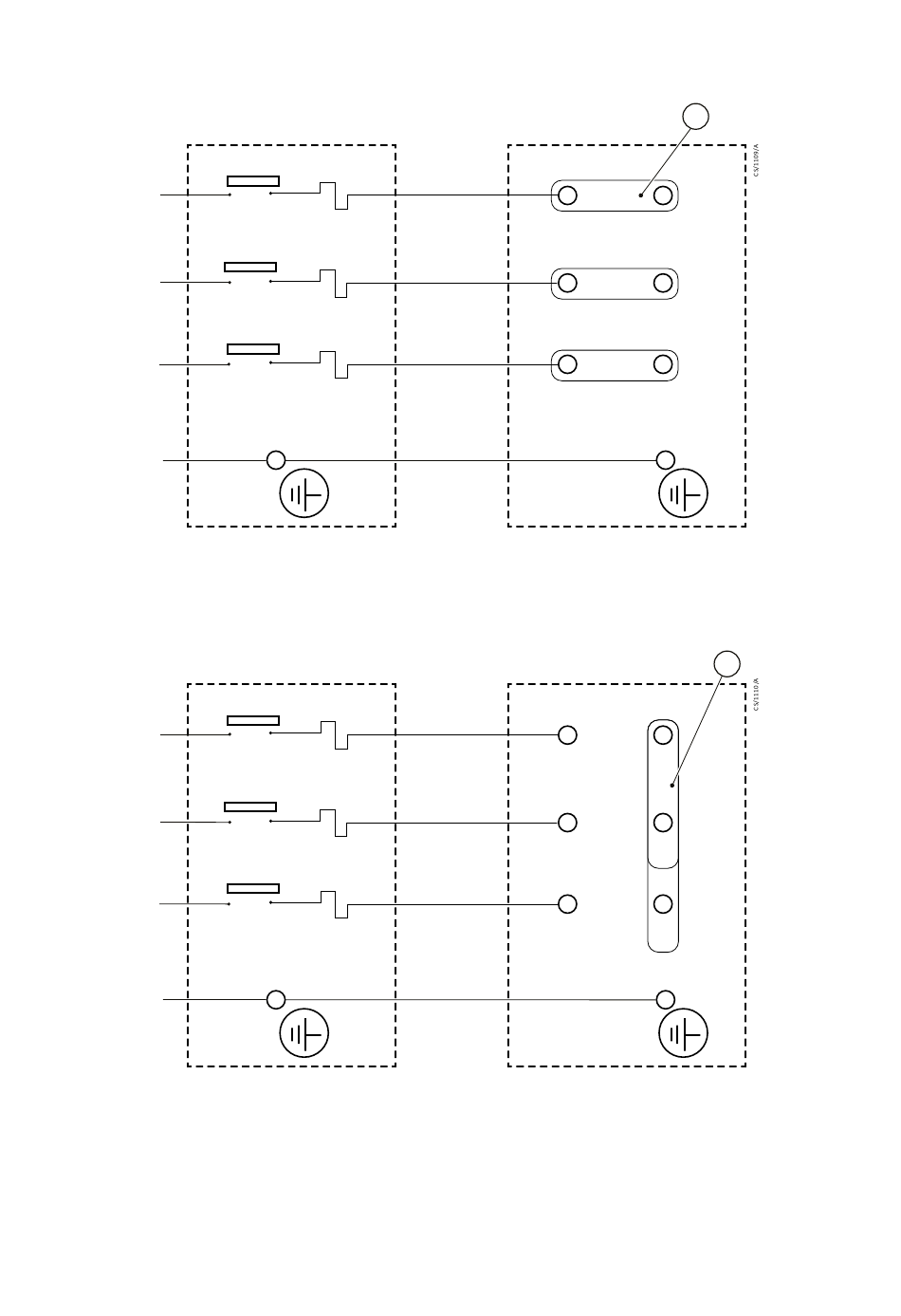

Figure 5 Three-phase electrical connections: 200-230 V
A
L1
L2
L3
E
A. Starter/contactor
A. Starter/contactor
1. Links
1. Links
Figure 6 Three-phase electrical connections: 380-460 V
A
L1
L2
L3
E
A. Starter/contactor
A. Starter/contactor
1. Links
1. Links
A65201880_AA
A65201880_AA - Installation
Page 31
B
U1
W2
V1
U2
W1
V2
B. Motor terminal-box
B. Motor terminal-box
B
U1
W2
V1
U2
W1
V2
B. Motor terminal-box
B. Motor terminal-box
