Clean the oil-level sight-glass

Refer to Figure 9 for the item numbers in brackets.
1. Drain the oil as described in
2. Undo the two screws (1) and remove the bezel (2), the sight-glass (3) and the 'O' ring (4) from the oil-box (5).
3. Clean the screws, bezel and sight-glass with a suitable cleaning solution.
4. Wipe the 'O' ring with a clean, dry, lint-free cloth.
5. Wipe the sight-glass recess in the oil-box with the cloth.
6. Refit the 'O' ring, sight-glass and bezel and secure with the two screws.
7. Refill the pump with oil as described in
8. Check that the sight-glass does not leak.
© Edwards Limited 2007. All rights reserved.
Edwards and the Edwards logo are trade marks of Edwards Limited.
Section 5.4.
Section 5.4.

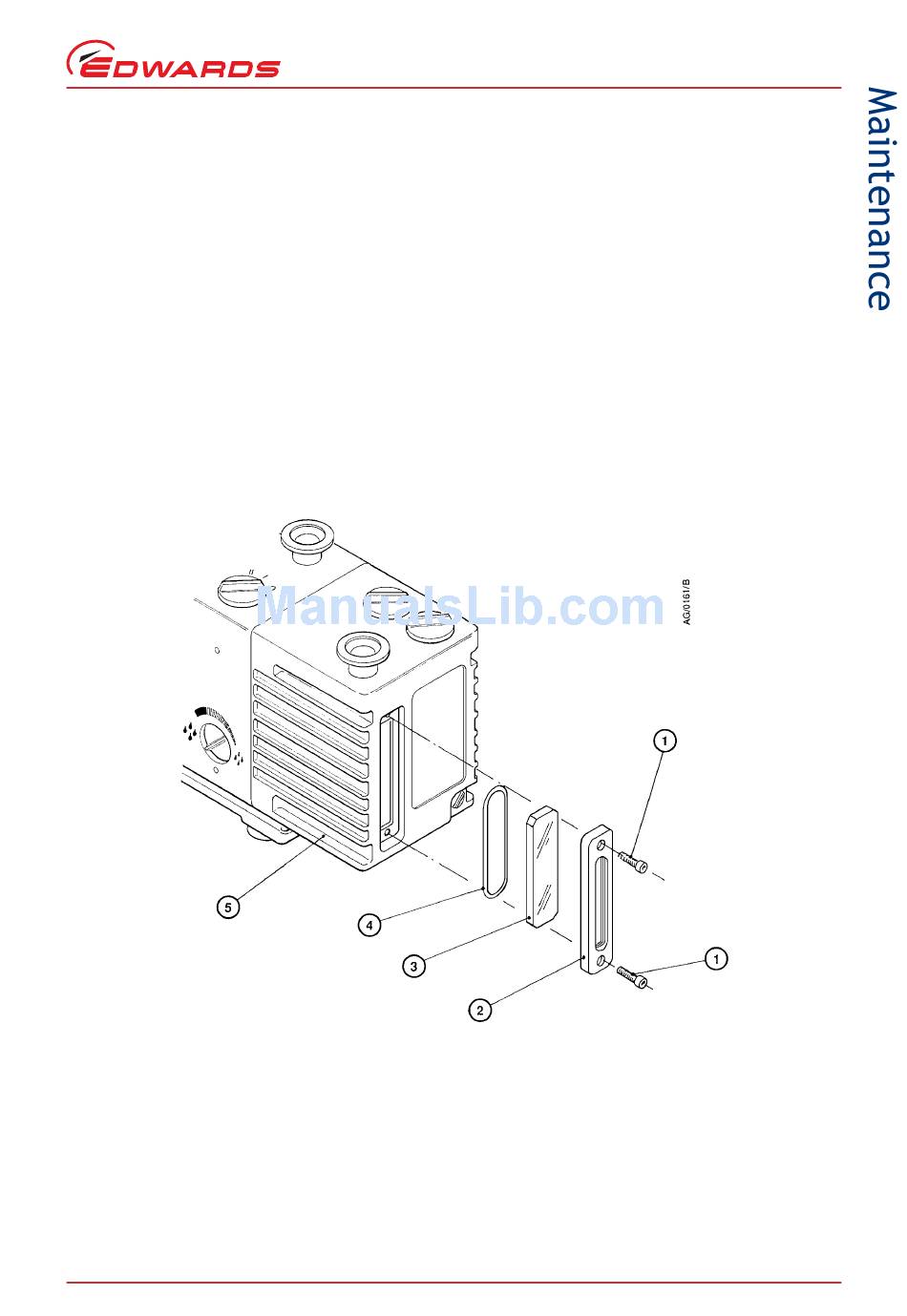

Figure 9 - Sight-glass assembly
1. Screws (2 off M6 x 20)
2. Bezel
3. Sight-glass
4. 'O' ring
5. Oil-box
