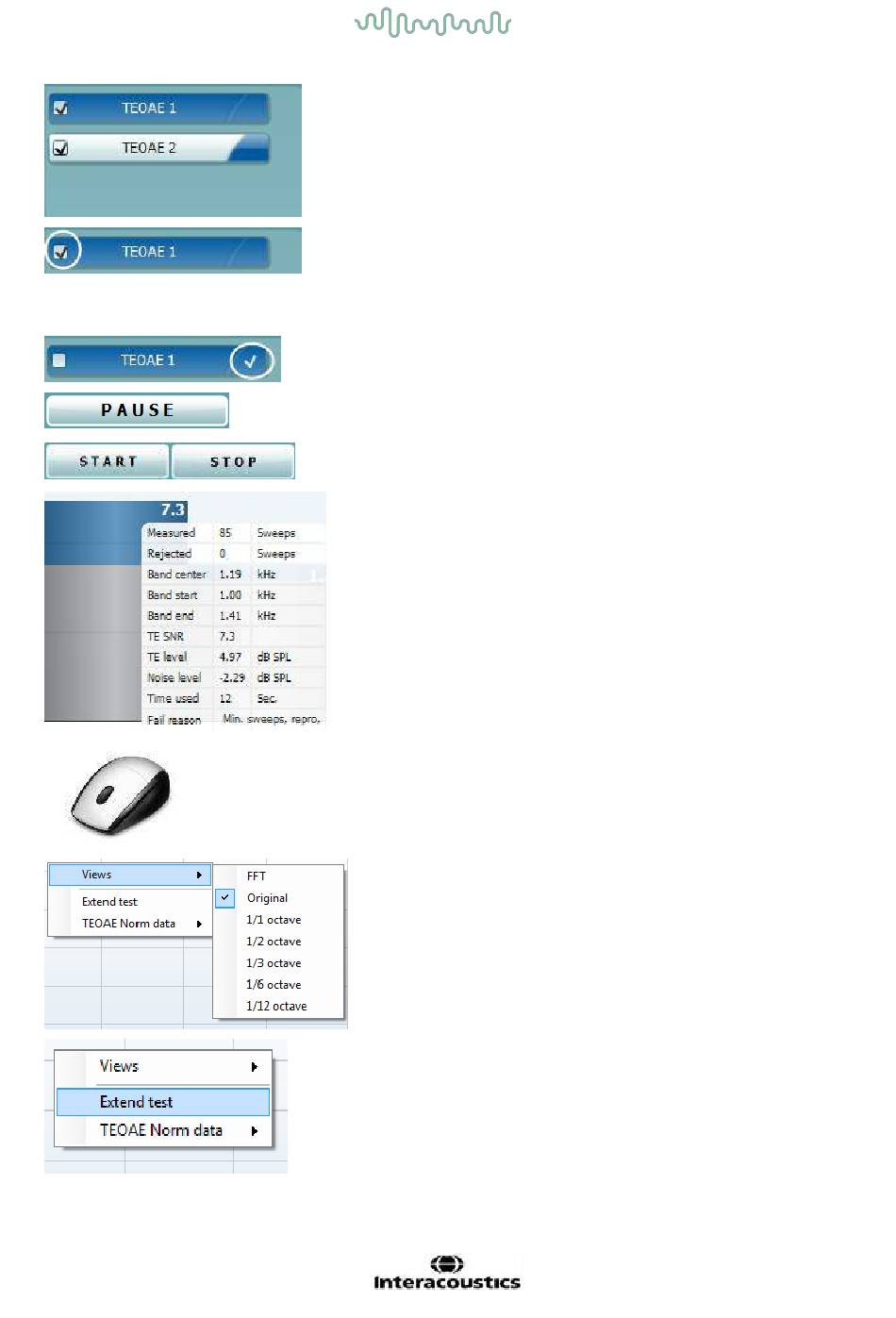

The protocol listing shows all tests that are part of the selected
protocol. The test that is displayed in the test screen area is
highlighted blue or red, depending on the chosen ear.
A checkmark in the box indicates that the test will run when
START is pressed. During testing the tests which have been
completed will automatically become unchecked. Uncheck the
boxes of tests you do not wish to run under the selected protocol
before pressing START.
A white checkmark indicates that (at least some) data for this test
is stored in the memory.
Pause becomes active after testing has started. It allows for
pausing during a test.
START (and STOP) button are used for starting and stopping the
session.
The SNR (Signal-to-noise ratio) is displayed within each of the
frequency bands tested and is calculated in dB.
Hovering the mouse over a frequency band shows details about
the ongoing or finished measurement.
Pointing at the desired graph and then using the scroll wheel of
your mouse allows zooming in and out on all graphs.
It is possible to change the view of the TE response graph by right
clicking. The dropdown menu gives the following options:
View allows you to change from the Original view to FFT view,
1/1, 1/2, 1/3, 1/6 and 1/12 octave band display.
Extend test allows continued testing after the test has ended on its
own or been manually stopped. The counter will revert to 0 and
start counting without a time limitation. Press Stop to stop testing.
